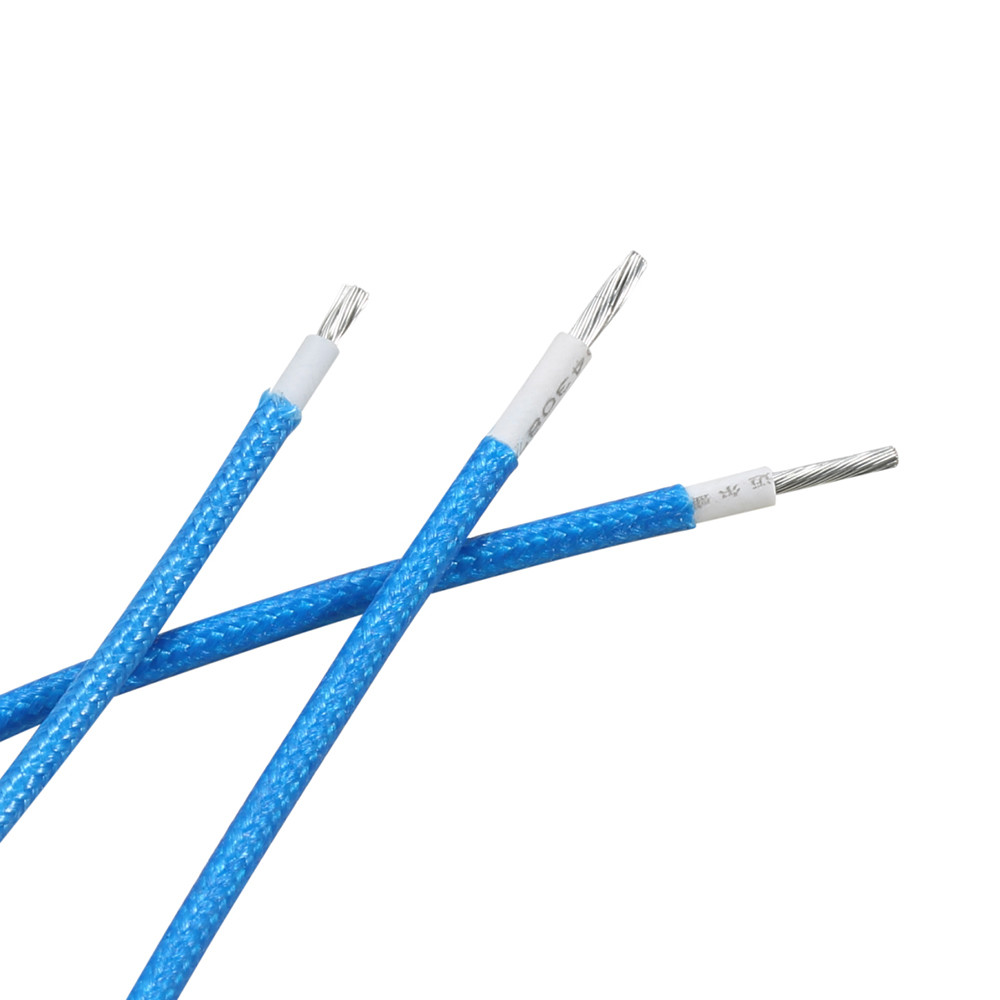

18AWG UL3172 Automotive Electrical Wire 200C 600V FT2 Fiberglass

  • 18AWG UL3172 Automotive Electrical Wire 200C 600V FT2 Fiberglass
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3172
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Black Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 600v Rated Temperature 200C
Size 18AWG Conductor Tinned Copper
Standard UL758 Insulation Silicone Rebber + Fibber Glass
Type Insulated Max.Cond Resistance 23.2 Ω/KM
Construction 50/0.254
High Light

18AWG Automotive Electrical Wire

,

UL3172 Automotive Electrical Wire

,

FT2 Fiberglass Insulation Wires
Leave a Message
Product Description

UL3172 automotive electrical wire 18AWG 200C 600V FT2 insulation wires



 UL 3172  Specifications:

Nominal voltage:600V

Temperature range: 200℃

Standard: UL3172

Insulation: Silicone Rubber + Fibber glass

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.95 2.38 143 305/1000
24 7/0.20 0.61 2.51 89.3
22 7/0.254 0.77 2.67 56.4
20 7/0.31 0.94 2.84 35.2
18 7/0.39 1.19 3.09 22.2



Our Product



18AWG UL3172 Automotive Electrical Wire 200C 600V FT2 Fiberglass 0



Product Description



18AWG UL3172 Automotive Electrical Wire 200C 600V FT2 Fiberglass 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



18AWG UL3172 Automotive Electrical Wire 200C 600V FT2 Fiberglass 2







Company Introduction



18AWG UL3172 Automotive Electrical Wire 200C 600V FT2 Fiberglass 3

18AWG UL3172 Automotive Electrical Wire 200C 600V FT2 Fiberglass 4
