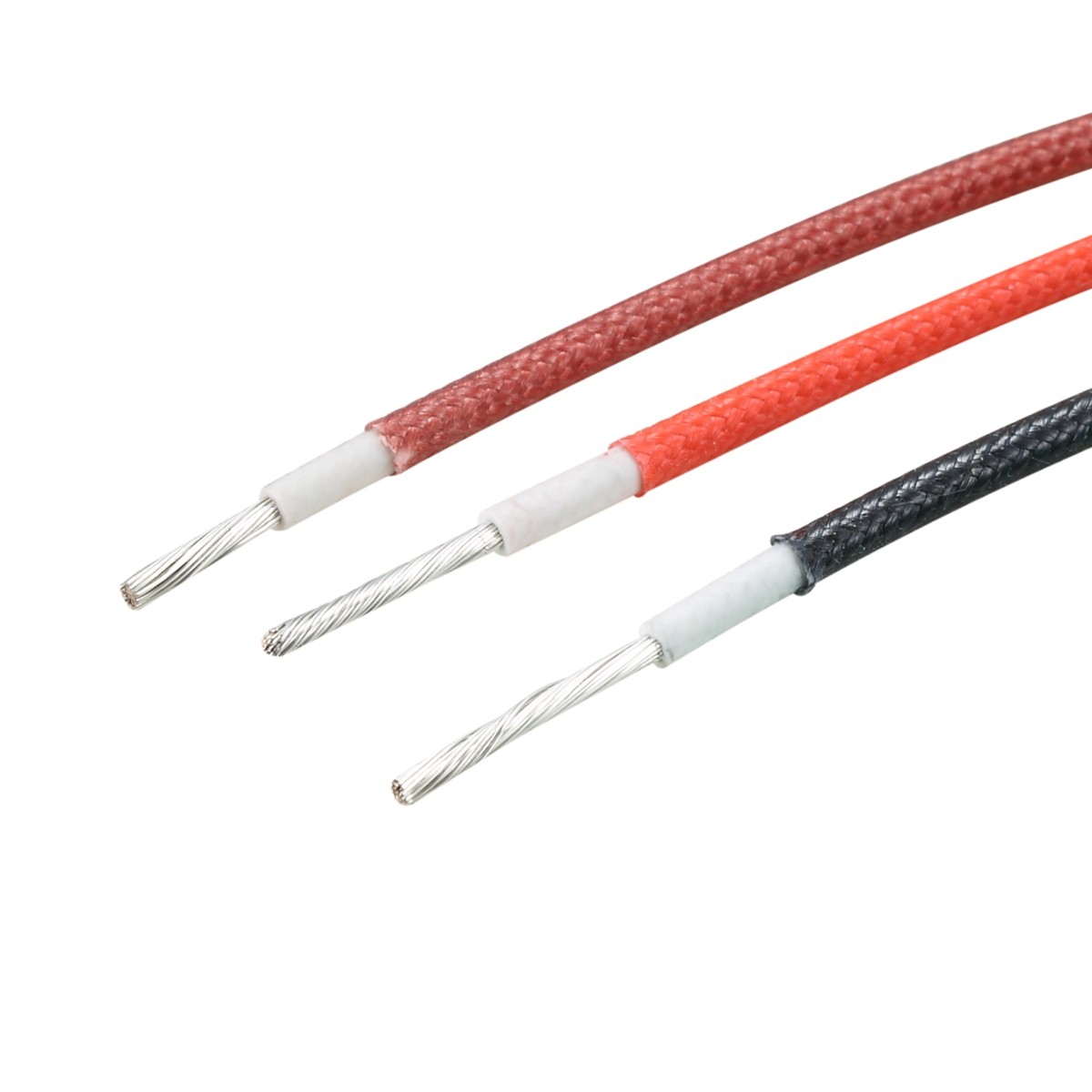

20AWG Fiberglass Insulated Copper Wire UL3069 For UAV

Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL3069
Minimum Order Quantity 3050meters
Price 0.1-1.5USD/M
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 7-15working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500000 meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL3069 Insulation Silicone Rubber
Conductor Tinned Copper Rated Voltage 600V
Rated Temperature 150°C Applications Home Appliance,lighting,heater,UAV,robot,industrial Power
Size 26-20AWG OD 2.34-2.80
Unit Length 305/1000 Standard UL758
High Light

UAV Fiberglass Insulated Copper Wire

,

20AWG Fiberglass Insulated Copper Wire

,

UL3069 Tinned Copper Braided Wire

Leave a Message
Product Description

UL3068 silicone rubber fiber glass braided wire

  • Flexibility: silicone rubber insulation with fiberglass braided
  • Maximum conductor resistance: 381 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: 150°C
  • Rated voltage: 300V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 20 AWG, 22 AWG,24AWg,26AWG



Conductor Insulation Max.cond Unit Length
resistance (m)(Ft)
Size Construction Diameter Nominal Thickness Diameter (Ω/km)
(AWG) (No./mm) (mm) (mm) (mm)
26 7/0.16 0.48 0.93 2.34 143 305/1000
24 7/0.20 0.61 2.47 89.3
22 7/0.254 0.77 2.63 56.4
20 7/0.31 0.94 2.80 35.2







20AWG Fiberglass Insulated Copper Wire UL3069 For UAV 0



20AWG Fiberglass Insulated Copper Wire UL3069 For UAV 1



Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
