CSA UL3135 Silicone Flexible Insulated Wire 16AWG 305M/ Roll

Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL3135
Minimum Order Quantity 3050meters
Price 0.1-1.5USD/M
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 5-10 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 1000000 meters per day
Product Details
Product Name UL3135 Color Black White Red
Insulation Silicone Conductor Tinned Copper
Materials Strand Copper Rated Temparatuure 200C
Rated Volatge 600V Package 305M/Roll
Certificates UL Certificates Standard UL758
MOQ 3050M
High Light

UL3135 Silicone Flexible Insulated Wire

,

CSA Silicone Flexible Insulated Wire

,

305M/ Roll Flexible Copper Wire

Leave a Message
Product Description

Strand copper wire 16AWG UL3135 Silicone Insulation lighting use black white red

UL3135 specification:

Rated volatge:600V

Rated temperature:200C

Standard:UL758

Applications:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.

Insulation:Silicone rubber

Conductor:Tinned copper

Size:16AWG



UL3135 demension:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.78 2.04 143 305/1000
24 7/0.20 0.61 0.78 2.17 89.3 305/1000
22 7/0.254 0.77 0.78 2.33 56.4 305/1000
20 7/0.31 0.94 0.78 2.5 35.2 305/1000
18 7/0.39 1.19 0.78 2.75 22.2 305/1000
16 7/0.49 1.49 0.78 3.05 14 305/1000
24 11/0.16 0.61 0.78 2.17 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 26/0.16 0.94 0.78 2.5 35.2 305/1000
18 41/0.16 1.18 0.78 2.74 22.2 305/1000
16 26/0.254 1.49 0.78 3.05 14 305/1000
14 41/0.254 1.87 0.78 3.43 8.78 305/1000
12 19/0.47 2.63 0.78 3.92 5.53 305/1000
0.30mm² 12/0.18 0.71 0.78 2.27 59.78 305/1000
0.50mm² 20/0.18 0.92 0.78 2.48 40.1 305/1000
0.75mm² 30/0.18 1.13 0.78 2.69 26.7 305/1000
1.00mm² 40/0.18 1.31 0.78 2.87 20 305/1000
1.25mm² 50/0.18 1.46 0.78 3.02 14.35 305/1000
2.00mm² 41/0.254 1.87 0.78 3.43 8.78 305/1000
2.50mm² 50/0.254 2.08 0.78 3.64 7.16 305/1000



CSA UL3135 Silicone Flexible Insulated Wire 16AWG 305M/ Roll 0

Benefits of silicone rubber insulated wire

Silicone rubber insulated wire offers the following benefits, making it ideal for demanding industrial applications:

  • Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
  • Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
  • Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
  • Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.

Applications of Silicone Rubber Insulated Wires

This wire is specially recommended for various applications, including:

  • Radiators
  • Steel mills
  • Electric motors
  • Hot rolling mills
  • Cooking surfaces
  • Heating apparatus
  • Industrial converters
  • Ovens and ventilators
  • Household appliances
  • Metallurgical facilities
  • Civil and industrial plants
  • Lighting (halogen lamps, etc.)
  • High voltage electrical cabins and circuits

If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated

wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet

your needs. If required, We can also aid you with custom manufactured wires and cables.

CSA UL3135 Silicone Flexible Insulated Wire 16AWG 305M/ Roll 1

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?

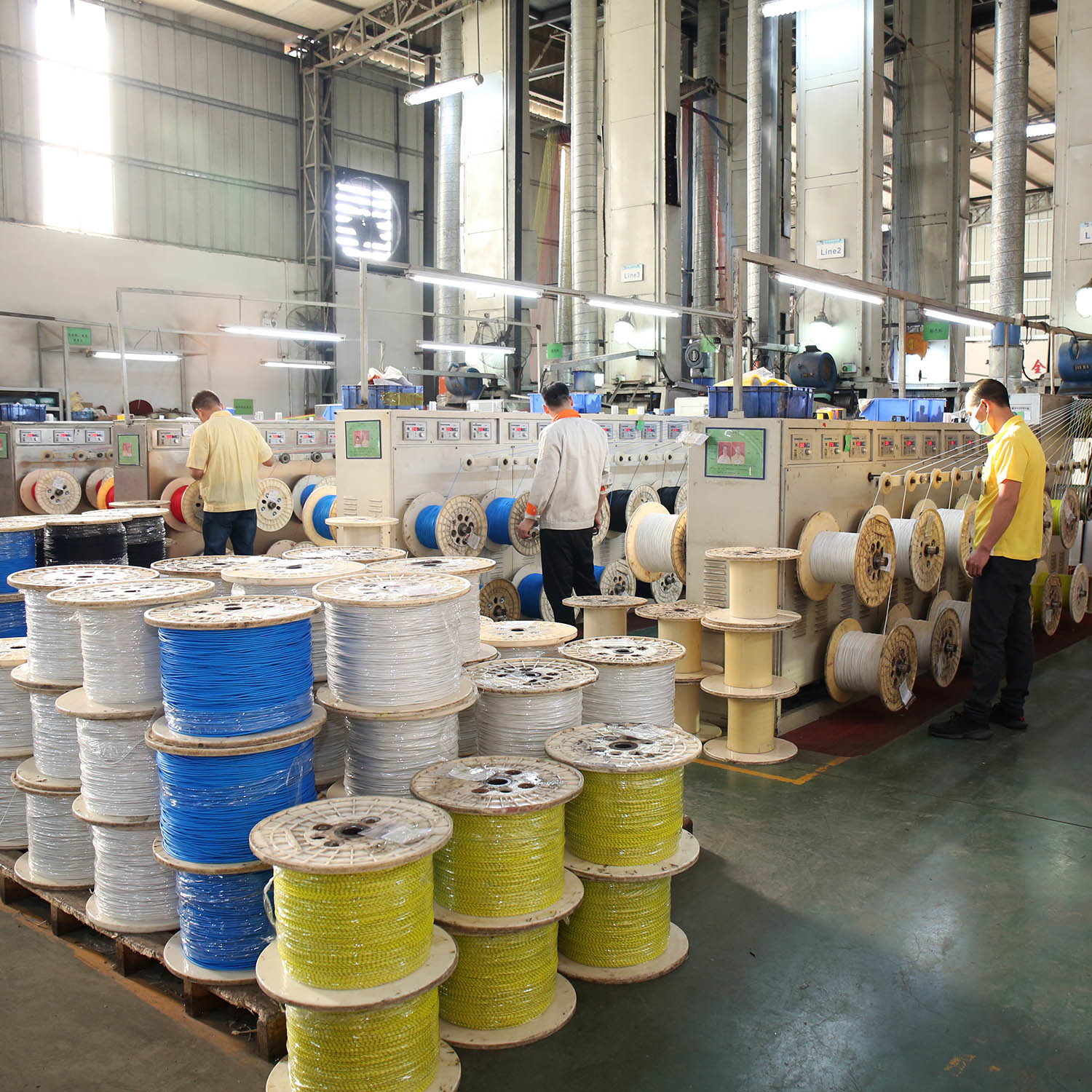

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
