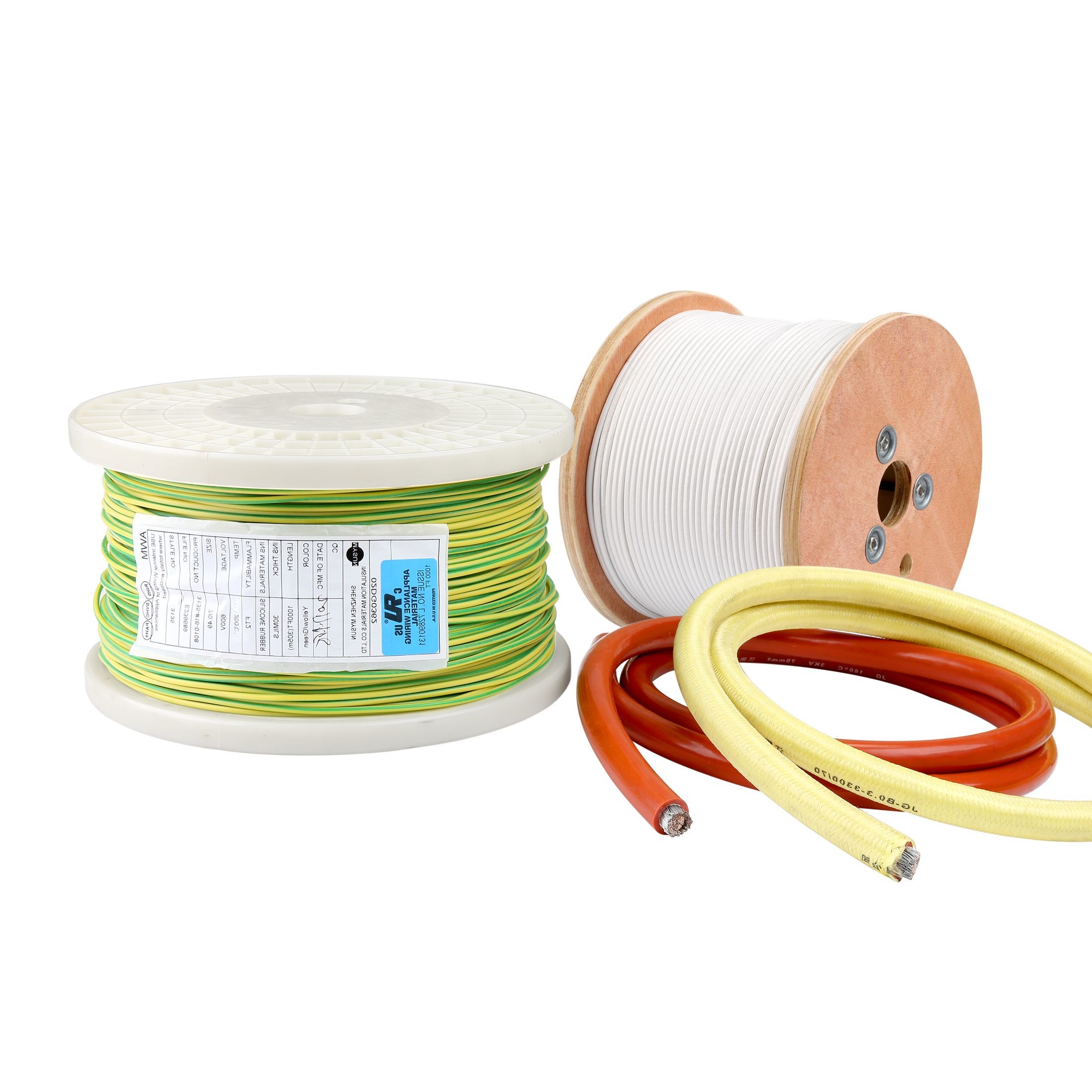

26AWG Fiberglass FT2 Flame Flexible Electrical Wire UL3122 Stranded

  • 26AWG Fiberglass FT2 Flame Flexible Electrical Wire UL3122 Stranded
  • 26AWG Fiberglass FT2 Flame Flexible Electrical Wire UL3122 Stranded
Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL3122
Minimum Order Quantity 1000M
Price USD0.01-0.03/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Color Red,Black,blue,yellow,green Rated Voltage 300V
Cross Section 1.00mm2AWG Core Single
Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 200 Degree
Material Silicone+Tinned Copper Size 16 AWG
Insulation Fiberglass Standard UL758
Highlight

FT2 Flame Flexible Electrical Wire

,

26AWG Fiberglass Flexible Electrical Wire

,

UL3122 Stranded Silicone Insulated Wire
Leave a Message
Product Description

UL3122 flexible electrical wire 300V 26AWG Stranded Silicone Insulated FT2 flame Test

wireUL3122 specification:

  • Flexibility: silicone rubber insulation with fiberglass braided
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 600 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16-26AWG,0.3sqmm-1.25sqmm

UL3122 demesion:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.60 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14
24 1/0.50 0.50 0.65 1.80 89.3 305/1000
22 1/0.65 0.65 1.95 56.4
20 1/0.81 0.81 2.11 35.2
18 1/1.02 1.02 2.32 22.2
16 1/1.20 1.20 2.50 14
24 11/0.16 0.61 0.60 1.81 89.3 305/1000
22 17/0.16 0.76 1.96 56.4
20 26/0.16 0.94 2.14 35.2
18 41/0.16 1.18 2.38 22.2
16 26/0.254 1.49 2.69 14
0.30mm² 12/0.18 0.71 0.60 1.91 59.78 305/1000
0.50mm² 20/0.18 0.92 2.12 40.1
0.75mm² 30/0.18 1.13 2.33 26.7
1.00mm² 40/0.18 1.31 2.51 20
1.25mm² 50/0.18 1.46 2.66 14.35



26AWG Fiberglass FT2 Flame Flexible Electrical Wire UL3122 Stranded 0
Service:

Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
