Contact Person : Peter Sun
Phone Number : 0086-13823381460

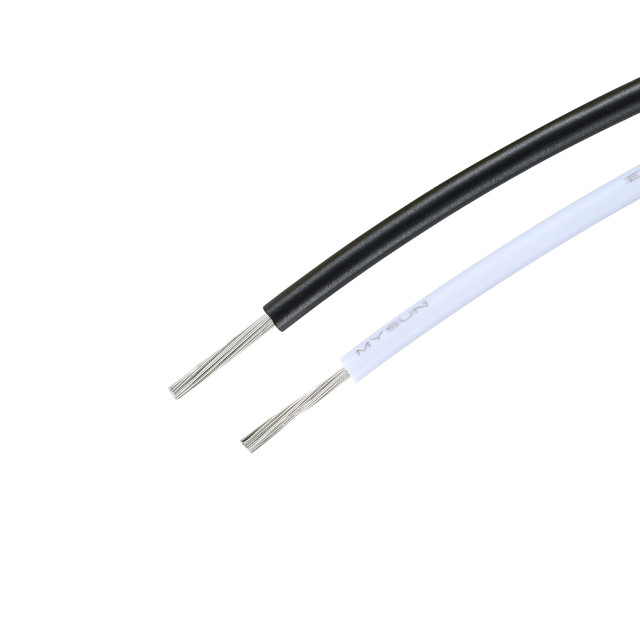

150C PFA Flexible Insulated Wire UL1859 E239689 High Temperature

Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL1859
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 850000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL1859 Insulation High Temperature L Resistance Electric Hook-up Wire Color All Colors
Conductor Nickel-plated Copper Insulation PFA
Rated Voltage 600V Rated Temperature 150C
Sample Conventional Sample Free Packing 100m/roll,305m/roll
Producing Experience 20 Years Delivery Time 7-15 Days
Material PFA+Tinned Copper Standard UL758
High Light

150C PFA Flexible Insulated Wire

,

Flexible Insulated Wire UL1859

,

E239689 High Temperature Appliance Wire

Leave a Message
Product Description

high temperature appliance wire150C PFA Flexible Insulated Wire UL1859 E239689



Specifications:

Nominal voltage: 600V

Temperature range: 150C

Standard: UL 758

Conductor: Nickel-plated copper wire

Insulation:PFA



Lead Time :

Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated



Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)
Unit Length
(m)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
32 7/0.08 0.24 0.35 0.94 563 610/2000
30 7/0.10 0.30 1.00 361 610/2000
28 7/0.12 0.36 1.06 227 610/2000
26 7/0.16 0.48 1.18 143 610/2000
24 7/0.20 0.60 1.30 89.3 610/2000
22 19/0.15 0.75 1.45 56.4 305/1000
20 19/0.185 0.93 1.63 35.2 305/1000
18 19/0.235 1.17 1.85 22.2 305/1000
16 19/0.30 1.50 2.20 14 305/1000
14 19/0.37 1.85 2.55 8.78 305/1000
12 19/0.47 2.35 3.05 5.53 305/1000
10 37/0.43 3.00 3.70 3.476 305/1000







--20170321_01--20170321_08--20170321_02--20170321_03--20170321_04--20170321_05--20170321_06--20170321_012



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
