200C Tinned Fiberglass Insulated Copper Wire 305m/ Roll UL3241

  • 200C Tinned Fiberglass Insulated Copper Wire 305m/ Roll UL3241
  • 200C Tinned Fiberglass Insulated Copper Wire 305m/ Roll UL3241
Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL3241
Minimum Order Quantity 3050meters
Price 0.1-1.5USD/M
Packaging Details 305M/roll,610M/roll,carton 32cm*32cm*32cm
Delivery Time 7-15working days
Payment Terms L/C, D/A, , T/T, Western Union, MoneyGram
Supply Ability 5000000M/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Silicone Rubber Rated Voltage 300V
Rated Temperature 200C Standard UL758
Appliacation Home Appliance Conductor Tinned Copper
Package 305m/roll Usage Automobile
Color Black White Yellow
High Light

Tinned Fiberglass Insulated Copper Wire

,

Fiberglass Insulated Copper Wire 305m/ Roll

,

UL3241 High Temp Silicone Cable
Leave a Message
Product Description

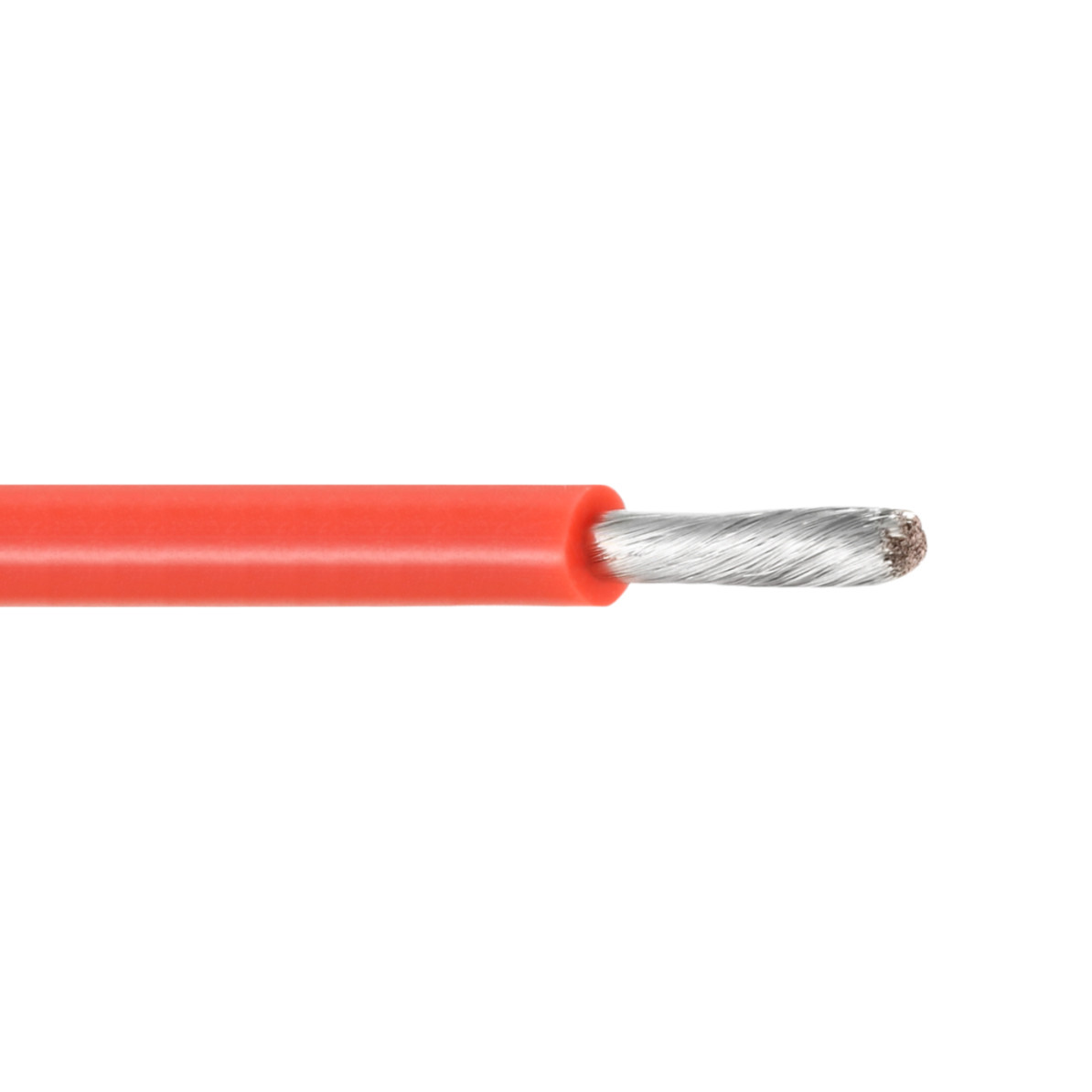

200C UL3241 Fiberglass Insulated Copper Wire 305m/ Roll High Temp Silicone Cable
rated voltage:300V
rated temperature:200C
Standard:UL758
Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.
Color:white,black,red,brown,yellow,blue,green,yellow/green

UL3241 demesion:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.79 2.06 143 610/2000
24 7/0.20 0.6 0.79 2.19 89.3 610/2000
22 7/0.254 0.76 0.79 2.35 56.4 305/1000
20 7/0.31 0.94 0.79 2.5 35.2 305/1000
18 7/0.39 1.17 0.79 2.77 22.2 305/1000
16 7/0.49 1.47 0.79 3.07 14 305/1000
14 41/0.254 1.89 0.79 3.45 8.78 200/656





Benefits of silicone rubber insulated wireSilicone rubber insulated wire offers the following benefits, making it ideal for demanding industrial applications:






  • Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
  • Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
  • Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
  • Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.

Applications of Silicone Rubber Insulated Wires
This wire is specially recommended for various applications, including:

  • Radiators
  • Steel mills
  • Electric motors
  • Hot rolling mills
  • Cooking surfaces
  • Heating apparatus
  • Industrial converters
  • Ovens and ventilators
  • Household appliances
  • Metallurgical facilities
  • Civil and industrial plants
  • Lighting (halogen lamps, etc.)
  • High voltage electrical cabins and circuits

If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated
wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet
your needs. If required, We can also aid you with custom manufactured wires and cables.
200C Tinned Fiberglass Insulated Copper Wire 305m/ Roll UL3241 0
200C Tinned Fiberglass Insulated Copper Wire 305m/ Roll UL3241 1



OUR PRODUCTION

200C Tinned Fiberglass Insulated Copper Wire 305m/ Roll UL3241 2



ABOUT US

200C Tinned Fiberglass Insulated Copper Wire 305m/ Roll UL3241 3

200C Tinned Fiberglass Insulated Copper Wire 305m/ Roll UL3241 4



Our company specializing in insulation wires and cables for 22 years,we’d like to introduce this item for you,and its further have silicone,(FEP,PFA)XLPE ,PVC,XLPVC s,High temperature insulation tubing wires and cable.Our products had adopted ISO9000,ISO14001,IATF16949 Quality System Authorities with UL.CUL ,CCC,VDE,CSA certificate.





Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FQA

1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.

2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.

3.What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
