VDE H05S-K 1.00mm2 Flexible Insulated Wire 450/750V High Voltage 180C

Place of Origin China
Brand Name Mysun
Certification VDE
Model Number H05S-K
Minimum Order Quantity 3050M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Rated Voltage 450/750V Cross Section 1.00mm2
Core Single Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll
Standard VDE 0282-3 Color Reauirement
Insulation Silicone Rubber Conductor Tinned Copper
Material Silicone+Tinned Copper
High Light

1.00mm2 Flexible Insulated Wire

,

VDE H05S-K Flexible Insulated Wire

,

180C Silicone Rubber Insulated Wire

Leave a Message
Product Description

Silicone Rubber High voltage 450/750V VDE H05S-K wires black white black
Rated Voltage:450/750V
Rated Temperature:180C
Standard:VDE 0282-3
Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.
Color:Reauirament
Section:0.5-2.5mm


ConductorInsulationMax Cond resistance
(ohms/m)
Unit length
(m)(F)
SectionConstructionDiameterNominal ThicknessDiameter
(mm²)(NO./mm)(mm)(mm)(mm)
0.5020/0.180.920.802.5240.1305/1000
0.7530/0.181.130.802.7326.7305/1000
1.0040/0.181.310.802.9120305/1000
1.2550/0.181.460.803.0614.35305/1000
1.5030/0.2541.600.903.4013.7305/1000
2.0041/0.2541.870.903.678.78305/1000
2.5050/0.2542.081.004.087.16305/1000

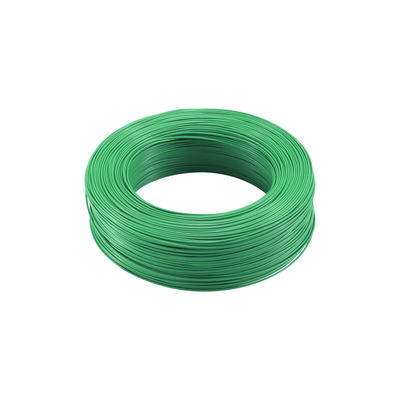

VDE H05S-K 1.00mm2 Flexible Insulated Wire 450/750V High Voltage 180C 0

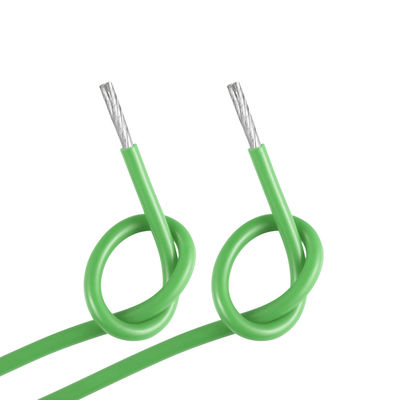

VDE H05S-K 1.00mm2 Flexible Insulated Wire 450/750V High Voltage 180C 1
VDE H05S-K 1.00mm2 Flexible Insulated Wire 450/750V High Voltage 180C 2
VDE H05S-K 1.00mm2 Flexible Insulated Wire 450/750V High Voltage 180C 3
OUR PRODUCTION
VDE H05S-K 1.00mm2 Flexible Insulated Wire 450/750V High Voltage 180C 4
About us
VDE H05S-K 1.00mm2 Flexible Insulated Wire 450/750V High Voltage 180C 5
VDE H05S-K 1.00mm2 Flexible Insulated Wire 450/750V High Voltage 180C 6
Our company specializing in insulation wires and cables for 22 years,we’d like to introduce this item for you,and its further have silicone,(FEP,PFA)XLPE ,PVC,XLPVC s,High temperature insulation tubing wires and cable.Our products had adopted ISO9000,ISO14001,IATF16949 Quality System Authorities with UL.CUL ,CCC,VDE,CSA certificate.


Service
Packaging : Hard cardboard carton ( Customizable)
Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away. Convenient for visit.
