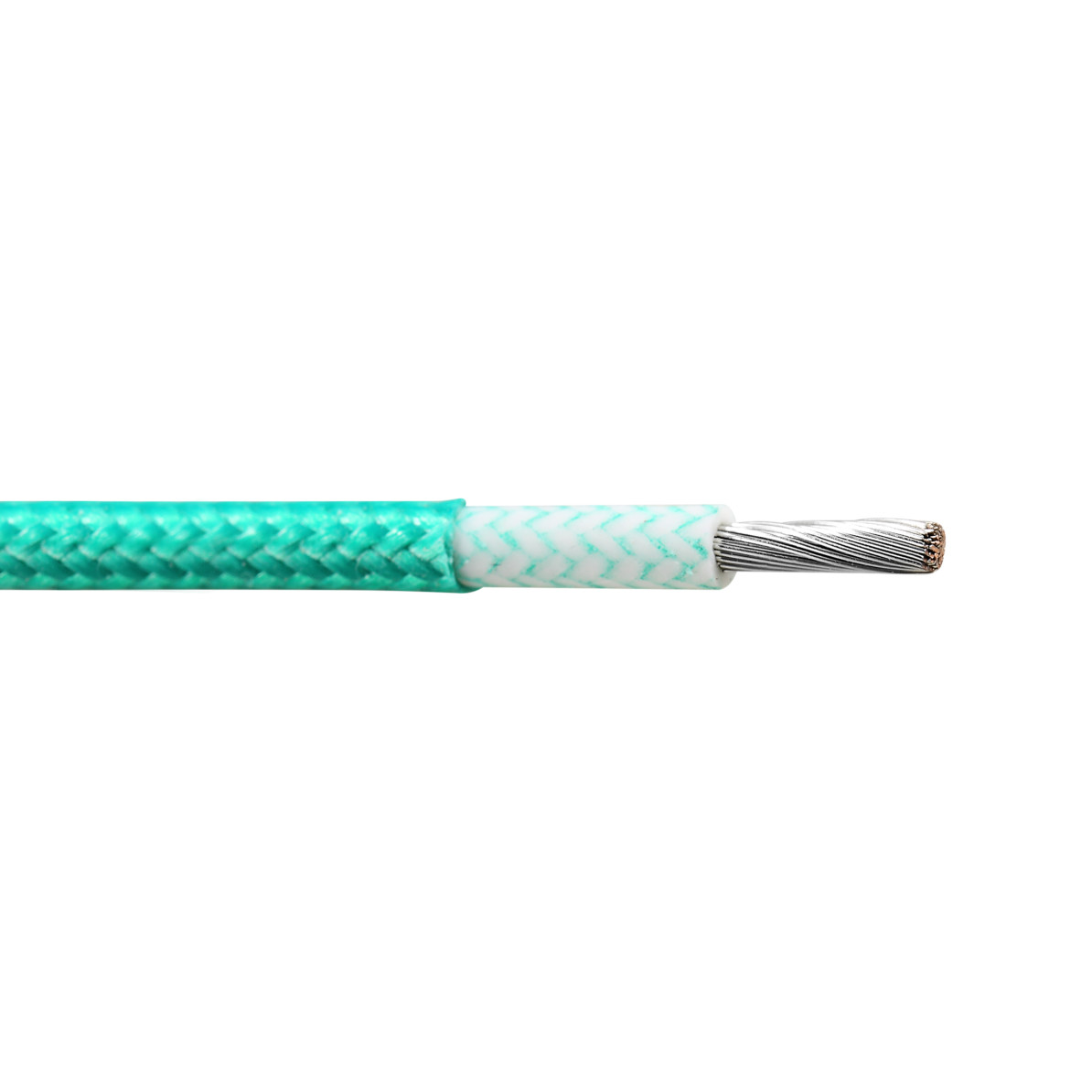

300V Silicone Rubber Insulation Cable UL3122 24awg Fiberglass Stranded Wire

  • 300V Silicone Rubber Insulation Cable UL3122 24awg Fiberglass Stranded Wire
  • 300V Silicone Rubber Insulation Cable UL3122 24awg Fiberglass Stranded Wire
Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL3122
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Color Red,Black,blue,yellow,green Rated Voltage 300V
Cross Section 24awg Core Single
Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 200 Degree
High Light

300V Silicone Rubber Insulation Cable

,

Silicone Rubber Insulation Cable UL3122

,

24awg Fiberglass Stranded Wire
Leave a Message
Product Description

24awg UL3122 Silicone Rubber Insulation wire Fiberglass Stranded for electrical appliance

  • Flexibility: silicone rubber insulation with fiberglass braided sleeving
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 300V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, and 22 AWG



Conductor Insulation Max Cond resistance
(ohms/m)		 Unit length
(m)(F)
      3KV 6KV 10KV 20KV 30KV
Size Construction Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter Nominal Thickness Diameter
(AWG) (NO./mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
28 7x0.12 0.37 0.50 1.37 0.70 1.77 1.00 2.37 1.30 2.97 1.70 3.77 239 610/2000
26 7x0.15 0.49 0.50 1.49 0.70 1.89 1.00 2.49 1.30 3.09 1.70 3.89 150 610/2000
24 14x0.14 0.60 0.50 1.60 0.70 2.00 1.00 2.60 1.30 3.20 1.70 4.00 94.2 610/2000
22 22x0.14 0.76 0.50 1.76 0.70 2.14 1.00 2.76 1.30 3.36 1.70 4.16 59.4 305/1000
20 32x0.14 0.91 0.50 1.91 0.70 2.31 1.00 2.91 1.30 3.50 1.70 4.31 36.7 305/1000
18 52x0.14 1.17 0.50 2.17 0.70 2.57 1.00 3.17 1.30 3.77 1.70 4.57 23.2 305/1000
16 52x0.18 1.50 0.50 2.50 0.70 2.90 1.00 3.50 1.30 4.10 1.70 4.90 14.6 305/1000







--20170321_012

OUR PRODUCTION

300V Silicone Rubber Insulation Cable UL3122 24awg Fiberglass Stranded Wire 1

ABOUT US

300V Silicone Rubber Insulation Cable UL3122 24awg Fiberglass Stranded Wire 2



.Our company specializing in insulation wires and cables for 22 years,we’d like to introduce this item for you,and its further have silicone,(FEP,PFA)XLPE ,PVC,XLPVC s,High temperature insulation tubing wires and cable.Our products had adopted ISO9000,ISO14001,IATF16949 Quality System Authorities with UL.CUL ,CCC,VDE,CSA certificate.

Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
