200C 600v Flexible Insulated Wire UL1330 305m/ Roll High Temperature Stranded Wire

  • 200C 600v Flexible Insulated Wire UL1330 305m/ Roll High Temperature Stranded Wire
  • 200C 600v Flexible Insulated Wire UL1330 305m/ Roll High Temperature Stranded Wire
Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL1330
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 850000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL1330 30AWG FEP Insulation Wire Coated Wire Color All Colors
Conductor Tinned Copper Insulation FEP
Rated Voltage 600V Rated Temperature 200C
Sample Conventional Sample Free Packing 100m/roll,305m/roll
Producing Experience 20 Years Delivery Time 7-15 Days
High Light

200C 600v Flexible Insulated Wire

,

Flexible Insulated Wire UL1330

,

305m/ Roll High Temperature Stranded Wire
Leave a Message
Product Description

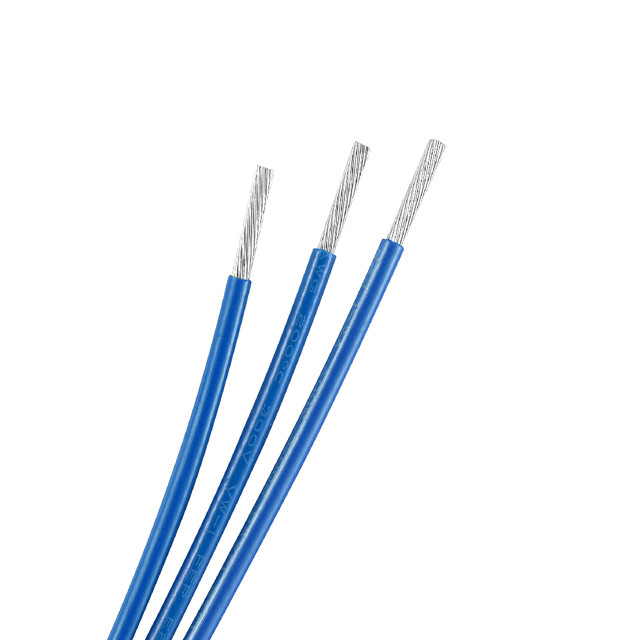

UL1330 fep high temperature stranded wire Tinned Copper Conductor 200C 600v



Specifications:

Nominal voltage: 600V

Temperature range: 200C

Standard: UL 758

Conductor:Tinned copper wire

Insulation: FEP



Lead Time :

Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated



Product dimensions:

CONDUCTOR INSULATION MAX.COND RESISTANCE (Ω/KM) UNIT LENGTH (M)(FT)
SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (mm)
30 1/0.26 0.26 0.305 0.87 361 610(2000)
7/0.10 0.30 0.305 0.91
28 1/0.32 0.32 0.305 0.93 227 610(2000)
7/0.12 0.36 0.305 0.97
26 7/0.16 0.48 0.305 1.09 143 610(2000)
19/0.10 0.48 0.305 1.11
24 1/0.50 0.50 0.305 1.11 89.3 610(2000)
7/0.20 0.60 0.305 1.21
19/0.12 0.60 0.305 1.21
22 1/0.65 0.65 0.33 1.31 56.4 305(1000)
7/0.254 0.76 0.33 1.42
19/0.15 0.75 0.33 1.41
20 1/0.81 0.81 0.33 1.47 35.2 305(1000)
7/0.31 0.93 0.33 1.59
19/0.19 0.93 0.33 1.59
18 1/1.02 1.02 0.33 1.68 22.2 305(1000)
7/0.39 1.17 0.33 1.83
19/0.235 1.17 0.33 1.83
16 1/1.30 1.30 0.33 1.96 14 305(1000)
7/0.49 1.47 0.33 2.13
19/0.30 1.50 0.33 2.16
14 19/0.37 1.85 0.33 2.51 8.78 305(1000)
12 19/0.47 2.35 0.33 3.01 5.53 305(1000)
10 19/0.61 3.05 0.33 4.71 3.476 305(1000)

QNH76117-b--20170321_01--20170321_08--20170321_02--20170321_03--20170321_04--20170321_05--20170321_06--20170321_012

OUR PRODUCTION

200C 600v Flexible Insulated Wire UL1330 305m/ Roll High Temperature Stranded Wire 9

ABOUT US

200C 600v Flexible Insulated Wire UL1330 305m/ Roll High Temperature Stranded Wire 10



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
