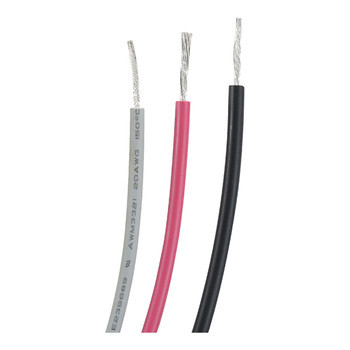

UL3166 125C XLPE Flexible Insulated Wire 300V 125C VDE Braided Copper

  • UL3166 125C XLPE Flexible Insulated Wire 300V 125C VDE Braided Copper
  • UL3166 125C XLPE Flexible Insulated Wire 300V 125C VDE Braided Copper
Place of Origin China
Brand Name MYSUN
Certification UL ROHS CE VDE
Model Number UL3266
Minimum Order Quantity 305meters
Price USD + 0.05-0.5 + meter
Packaging Details 305m/roll
Delivery Time 7-10 work days
Payment Terms T/T, D/A, D/P, T/T
Supply Ability 1000km per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 300V Temperature 125C
Standard UL758 Application Home Appliance/lighting/motor & Generator
Size 10-32AWG Insulation XLPE
Conductor Tinned Copper Color Rquirement
High Light

UL3166 Flexible Insulated Wire

,

125C XLPE Flexible Insulated Wire

,

125C VDE Flexible Braided Copper Wire
Leave a Message
Product Description

Insulated electric wires UL3166 Tinner Copper 300V 125℃ widely used in home appliance,linghting,heater,industrial power





Quick Details

Place of Origin:

Guangdong, China

Brand Name:

Mysun

Model Number:

UL3266

Type:

insulated

Application:

home appliance,lighting,heater,motor,generator,robot, home appliance, industrial heater

Conductor Material:

Copper

Conductor Type:

Tinned copper

Insulation Material:

XLPE

standard:

UL758

color:

all colours

MOQ:

305/610Meters

Rated Voltage:

300V

Rated Temperature:

125℃

Product name:

Copper Core XLPE Insulation Wire

Conductor:

TInned copper

Certification:

UL RoHS



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
32 7/0.08 0.24 0.39 1.02 563 610/2000
30 7/0.10 0.30 1.08 361
28 7/0.127 0.38 1.16 227
26 7/0.16 0.48 1.26 143 305/1000
24 11/0.16 0.60 1.38 89.3
22 17/0.16 0.76 1.54 56.4
20 21/0.18 0.94 1.72 35.2
18 16/0.254 1.18 1.96 22.2
16 26/0.254 1.50 2.28 14
14 41/0.254 1.89 2.67







8.78
12 65/0.254 2.37 3.15 5.53
10 105/0.254 3.02 3.80 3.476



MYSUN Wire Features :UL3166 125C XLPE Flexible Insulated Wire 300V 125C VDE Braided Copper 0UL3166 125C XLPE Flexible Insulated Wire 300V 125C VDE Braided Copper 1UL3166 125C XLPE Flexible Insulated Wire 300V 125C VDE Braided Copper 2UL3166 125C XLPE Flexible Insulated Wire 300V 125C VDE Braided Copper 3
