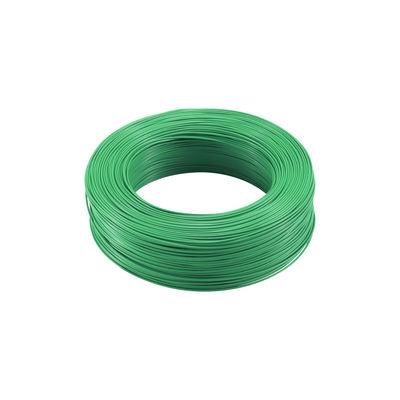

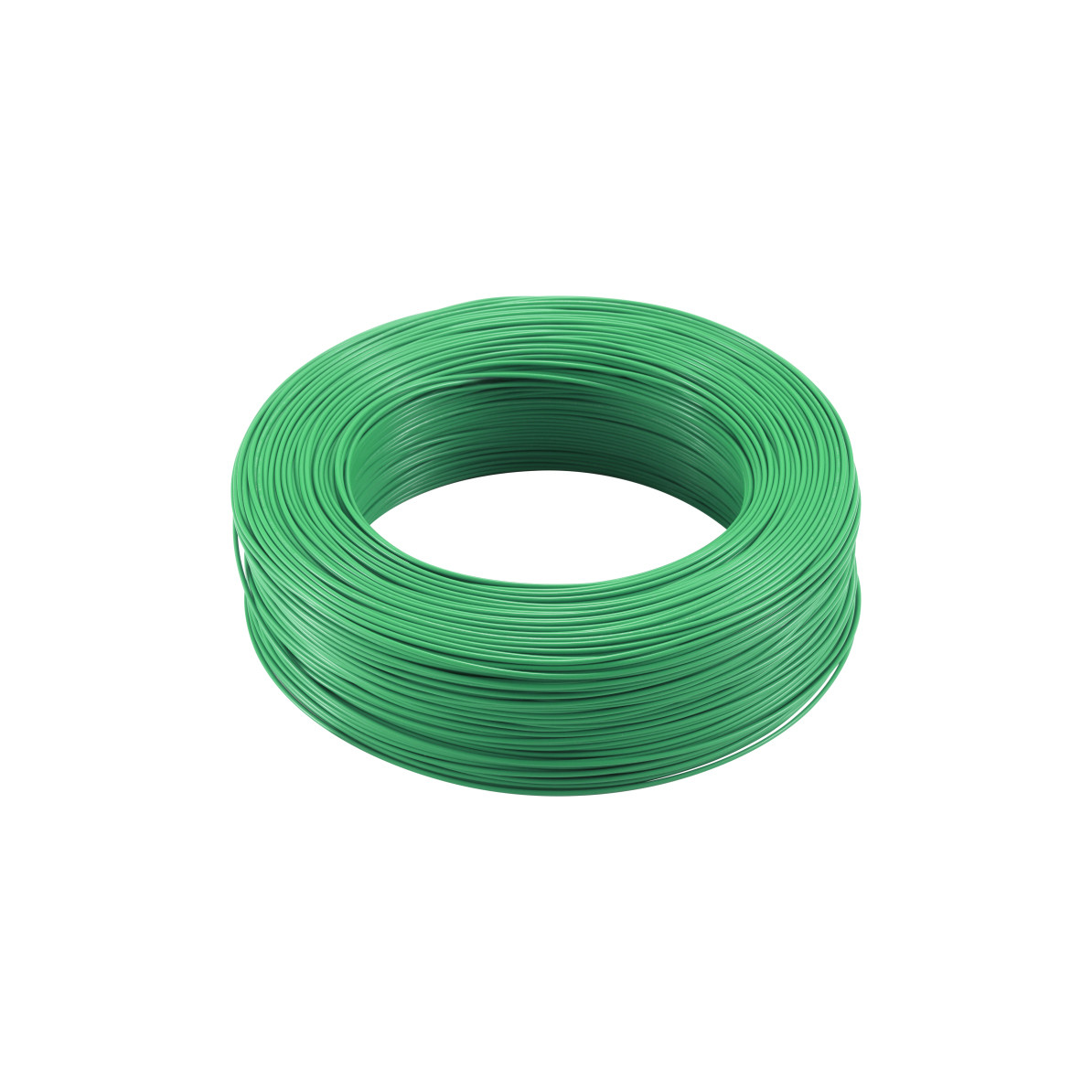

VDE 600V UL758 Tinned Copper Wires 6AWG 150C XLPE Silicone Hook Up Wire

Place of Origin Guangdong,China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL3213
Minimum Order Quantity 3050meters
Price 0.06~2.28USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Color Blue/White/Red/Brown/Yellow/Green/Yellow Green/Black
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 600V
Rated Temperature 150C Size 6 AWG
Conductor Tinned Copper Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation Silicone Rubber
Max.Cond Resistance 1.41Ω/KM Construction 266/0.25
Insulation OD 1.41 Mm
High Light

VDE 600V Tinned Copper Wires

,

UL758 Tinned Copper Wires

,

150C XLPE Silicone Hook Up Wire

Leave a Message
Product Description

6AWG High Voltage Resisitance 600V Tinned Copper wires and cables​



UL3213 Specifications:

Nominal voltage:600V

Temperature range: 150℃

Standard: UL3213

Insulation: Silicone Rubber

Conductor: Tinner copper

Flame rating:FT2



Insulation Color: Red/Balck/Yellow/Green/Bule/ Yellow&Green
Silicones rubber Insulated Tinner Cooper Silicone Wire
Tinned or bare, strand or solid copper conductor,
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acid, alkali, oil, moisture and fungi, comforming ULstandard



Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
8 19/0.75 3.75 1.55 6.85 2.16 100/328
6 266/0.254 5.52 1.55 8.62 1.362 100/328
4 420/0.254 6.63 1.55 9.73 0.8559 100/328
2 655/0.254 8.75 1.55 11.85 0.5384 100/328
