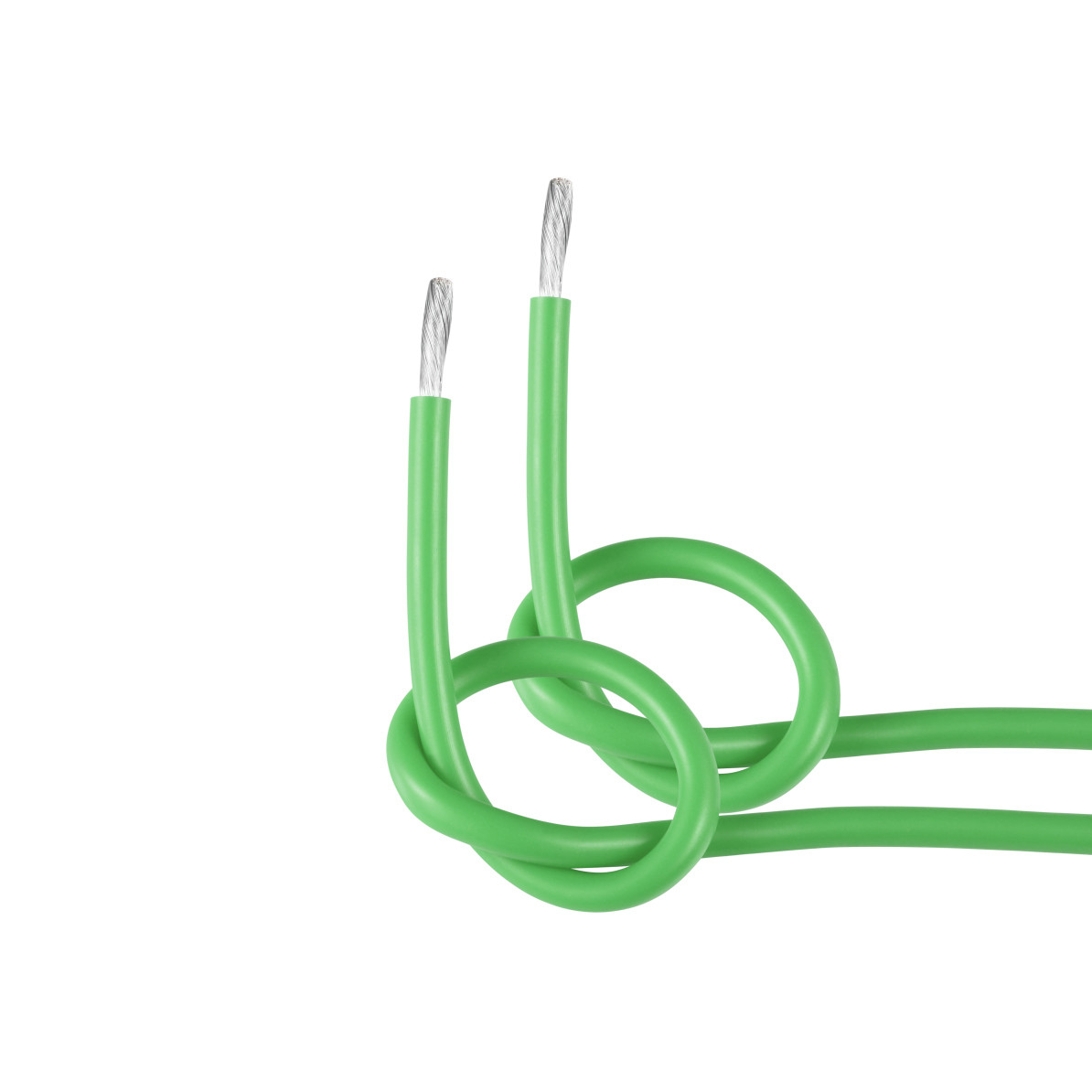

150C Stranded 22AWG 600V Silicone Electrical Wires UL758 For LED Lighting

Place of Origin Guangdong,China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL3212
Minimum Order Quantity 3050meters
Price 0.06~0.229USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Color Blue/White/Red/Brown/Yellow/Green/Yellow Green/Black
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 600V
Rated Temperature 150C Size 22 AWG
Conductor Tinned Copper Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation Silicone Rubber
Max.Cond Resistance 59.4Ω/KM Construction 7/0.25
Insulation OD 3.06 Mm
High Light

22AWG 600V Silicone Electrical Wires

,

150C Stranded Silicone Electrical Wires

,

UL758 Silicone Rubber Insulated Cable

Leave a Message
Product Description

LED Lighting Electrical Wires 22AWG Silicone Wires and Cable​



UL3212 Specifications:

Nominal voltage:600V

Temperature range: 150℃

Standard: UL3212

Insulation: Silicone Rubber

Conductor: Tinner copper

Flame rating:FT2



Insulation Color: Red/Balck/Yellow/Green/Bule/ Yellow&Green
Silicones rubber Insulated Tinner Cooper Silicone Wire
Tinned or bare, strand or solid copper conductor,
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acid, alkali, oil, moisture and fungi, comforming ULstandard



Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
26 7/0.16 0.48 1.15 2.78 143 305/1000
24 7/0.20 0.6 1.15 2.9 89.3 305/1000
22 7/0.254 0.76 1.15 3.06 56.4 305/1000
20 7/0.31 0.94 1.15 3.23 35.2 305/1000
18 7/0.39 1.17 1.15 3.47 22.2 305/1000
16 7/0.49 1.47 1.15 3.77 14 305/1000
14 41/0.254 1.89 1.15 4.19 8.78 305/1000
12 19/0.47 2.36 1.15 4.66 5.53 305/1000
10 19/0.61 3.05 1.15 5.35 3.476 305/1000



Our Product



150C Stranded 22AWG 600V Silicone Electrical Wires UL758 For LED Lighting 0



Product Description



150C Stranded 22AWG 600V Silicone Electrical Wires UL758 For LED Lighting 1



150C Stranded 22AWG 600V Silicone Electrical Wires UL758 For LED Lighting 2

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



150C Stranded 22AWG 600V Silicone Electrical Wires UL758 For LED Lighting 3
