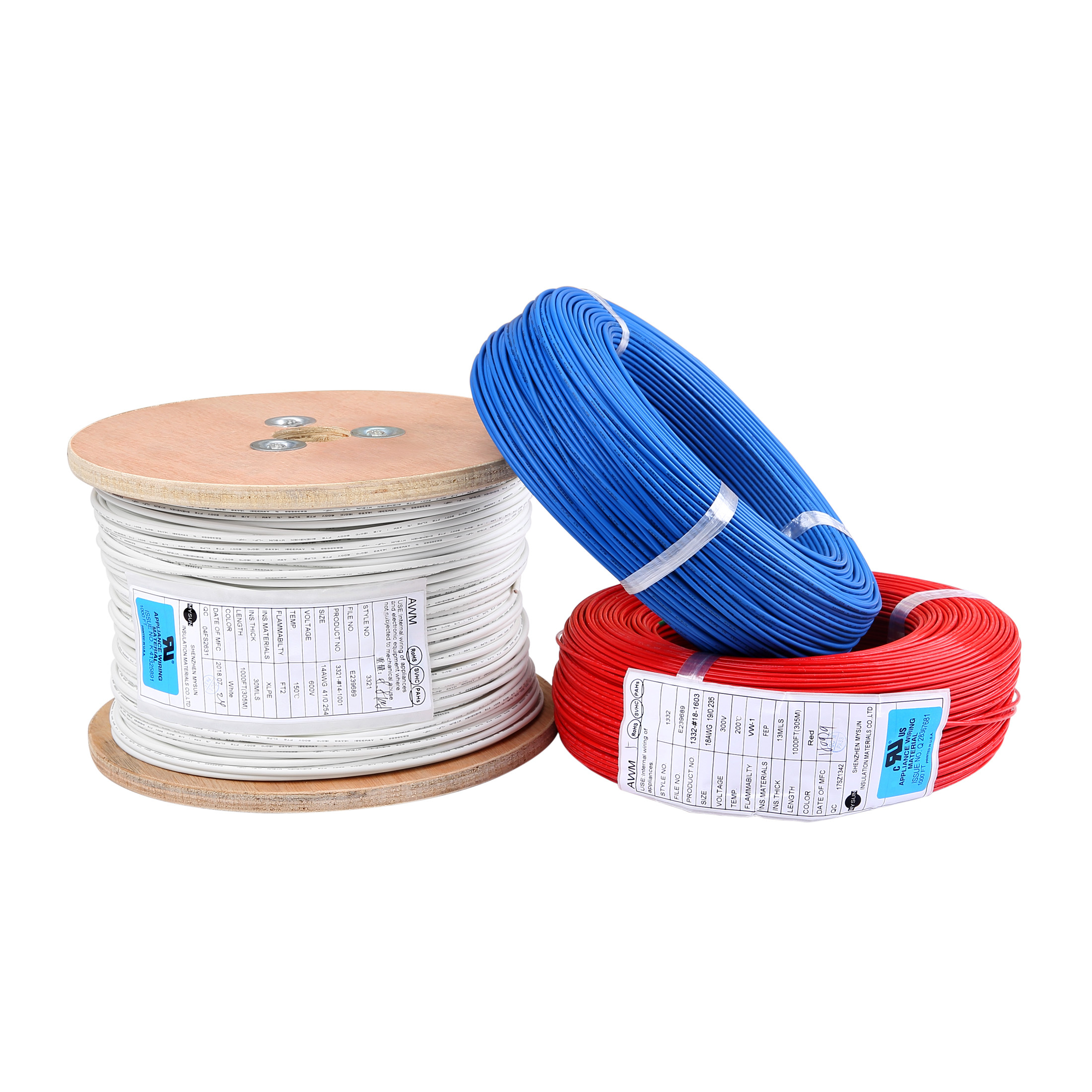

UL3385 XLPE Insulation Wires 600v For Electronic Products

  • UL3385 XLPE Insulation Wires 600v For Electronic Products
Place of Origin Guangdong，China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL3385
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Color Blue
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 300V
Rated Temperature 105 C Size 18AWG
Conductor Copper Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation XLPE
Type Insulated Max.Cond Resistance 23.2Ω/KM
Construction 16/0.254 Unit Length 305m/1000ft
High Light

UL3385 XLPE Insulation Wires

,

Electronic Products XLPE Insulation Wires

,

600v XLPE Hook Up Cable
Leave a Message
Product Description

UL3385 XLPE insulation wires and cable 600v for electronic product use



UL 3385 Specifications:

Nominal voltage:300V

Temperature range:105℃

Standard: UL3385

Insulation: xlpe

Conductor:  copper



Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor
Insulation
Jacket
Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
Thickness
Diameter ±0.15
(Ω/KM)
(M)(Ft)
32
7/0.08
0.24
0.4
1.04
0.45
1.94
563
610/2000
30
7/0.10
0.30
1.10
2
381
28
7/0.127
0.38
1.18
2.08
239
26
7/0.16
0.5
1.30
2.2
150
24
7/0.20
0.60
1.40
2.3
94.2
22
17/0.16
0.76
1.56
2.46
59.4
305/1000
20
21/0.18
0.94
1.74
2.64
36.7
18
16/0.254
1.19
1.99
2.89
23.2
16
26/0.254
1.50
2.30
3.2
14.6
14
41/0.254
1.89
2.69
3.59
8.96
12
65/0.254
2.37
3.17
4.07
5.64
10
105/0.254
3.02
3.82
4.72
3.55



Our Product



UL3385 XLPE Insulation Wires 600v For Electronic Products 0



Product Description



UL3385 XLPE Insulation Wires 600v For Electronic Products 1

UL3385 XLPE Insulation Wires 600v For Electronic Products 2



Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



UL3385 XLPE Insulation Wires 600v For Electronic Products 3
