Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V

  • Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL1589
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Black Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 30v Rated Temperature 80 C
Size 18AWG Conductor Copper
Standard UL758 Insulation XLPE
Type Insulated Max.Cond Resistance 8.78 Ω/KM
Construction 34/0.18
High Light

Stranded Conductor XLPE Insulation Wires

,

18AWG XLPE Insulation Wires

,

UL1589 XLPE Hook Up Cable
Leave a Message
Product Description

30V Low Rated Voltage 18AWG XLPE Insulation Wires in Black Color



 UL 1589  Specifications:

Nominal voltage:30V

Temperature range:80℃

Standard: UL1589

Insulation: xlpe

Conductor:  copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
32 7/0.08 0.24 0.2 0.64 563 1220/4000
30 7/0.10 0.3 0.25 0.8 381 610/2000
28 7/0.127 0.38 0.25 0.88 239 610/2000
26 7/0.16 0.48 0.25 0.98 150 610/2000
24 11/0.16 0.61 0.25 1.11 94.2 610/2000
22 17/0.16 0.77 0.25 1.27 59.4 610/2000
20 21/0.18 0.92 0.26 1.44 36.7 610/2000
18 34/0.18 1.19 0.30 1.79 23.2 305/1000
16 26/0.254 1.49 0.30 2.09 14.6 305/1000
14 41/0.254 1.87 0.35 2.57 8.78 305/1000



Our Product

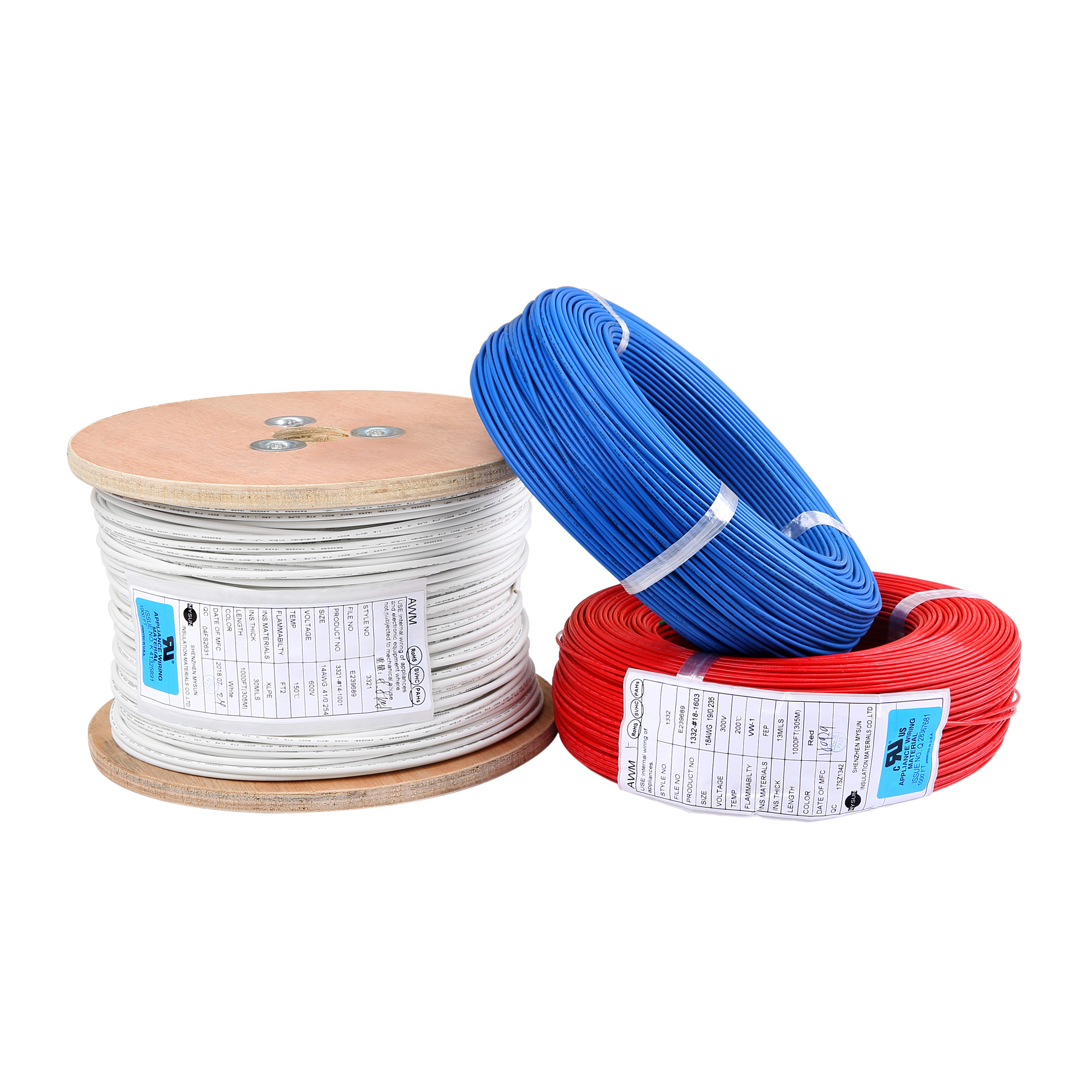

Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V 0



Product Description



Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V 1

Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V 2



Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V 3







Company Introduction



Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V 4

Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V 5
