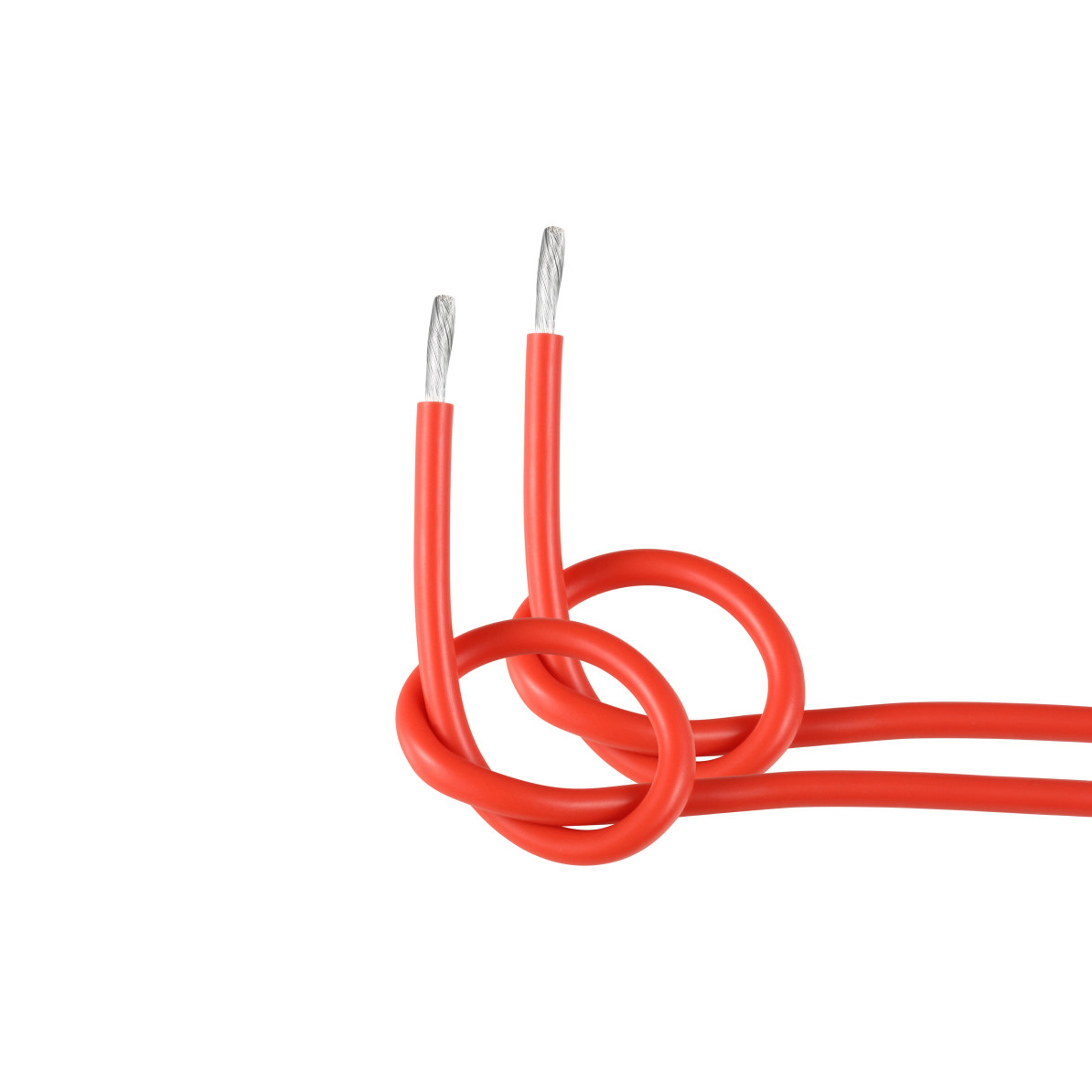

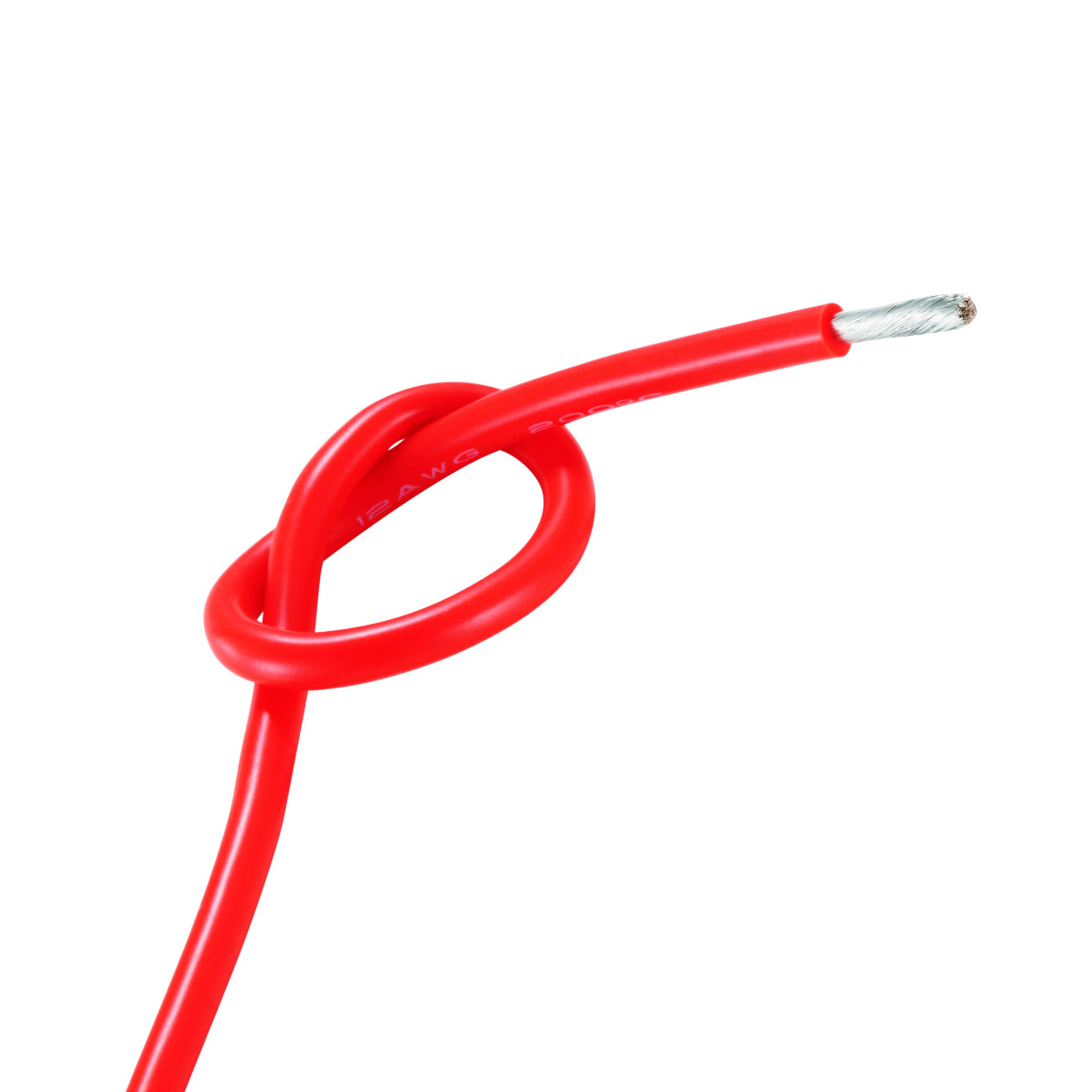

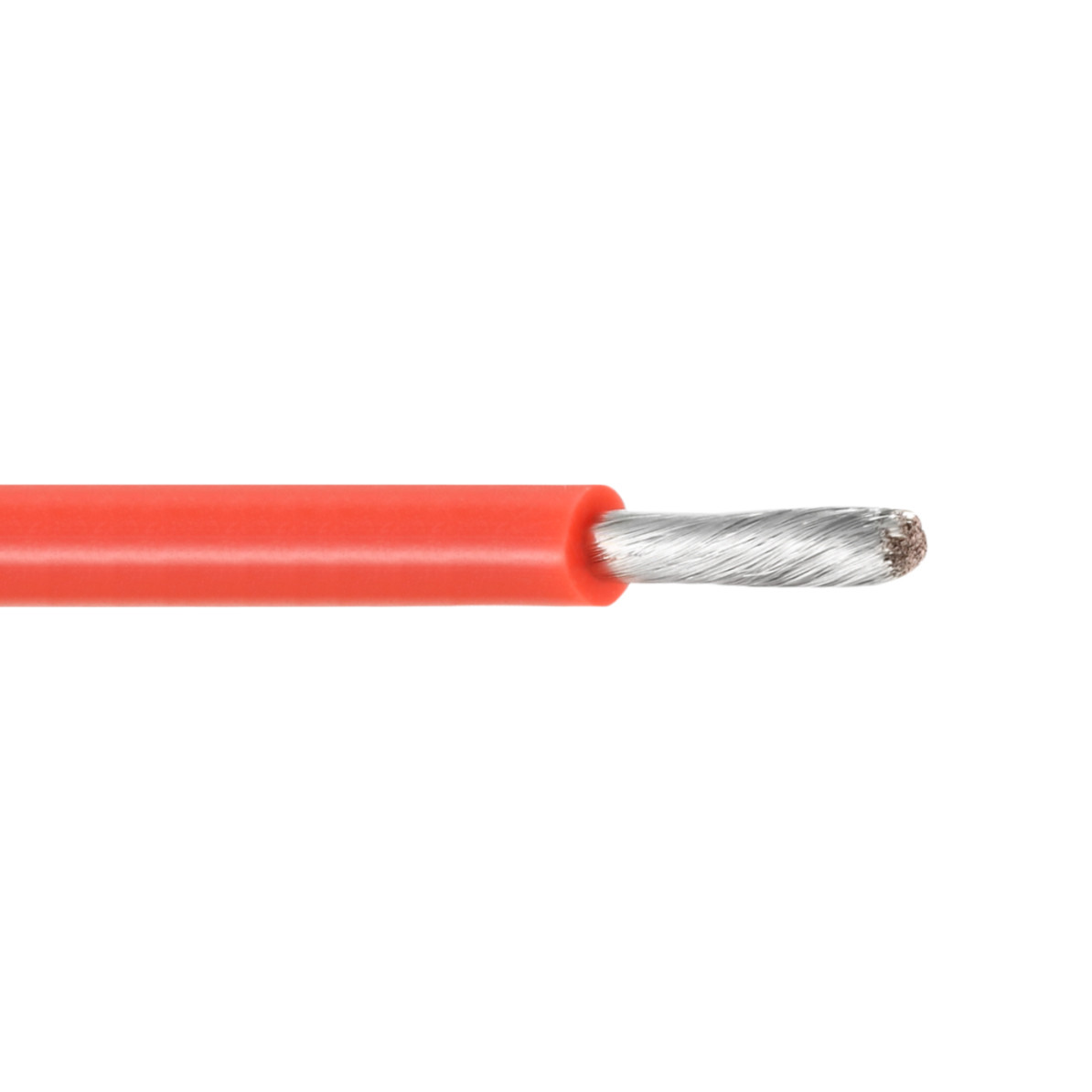

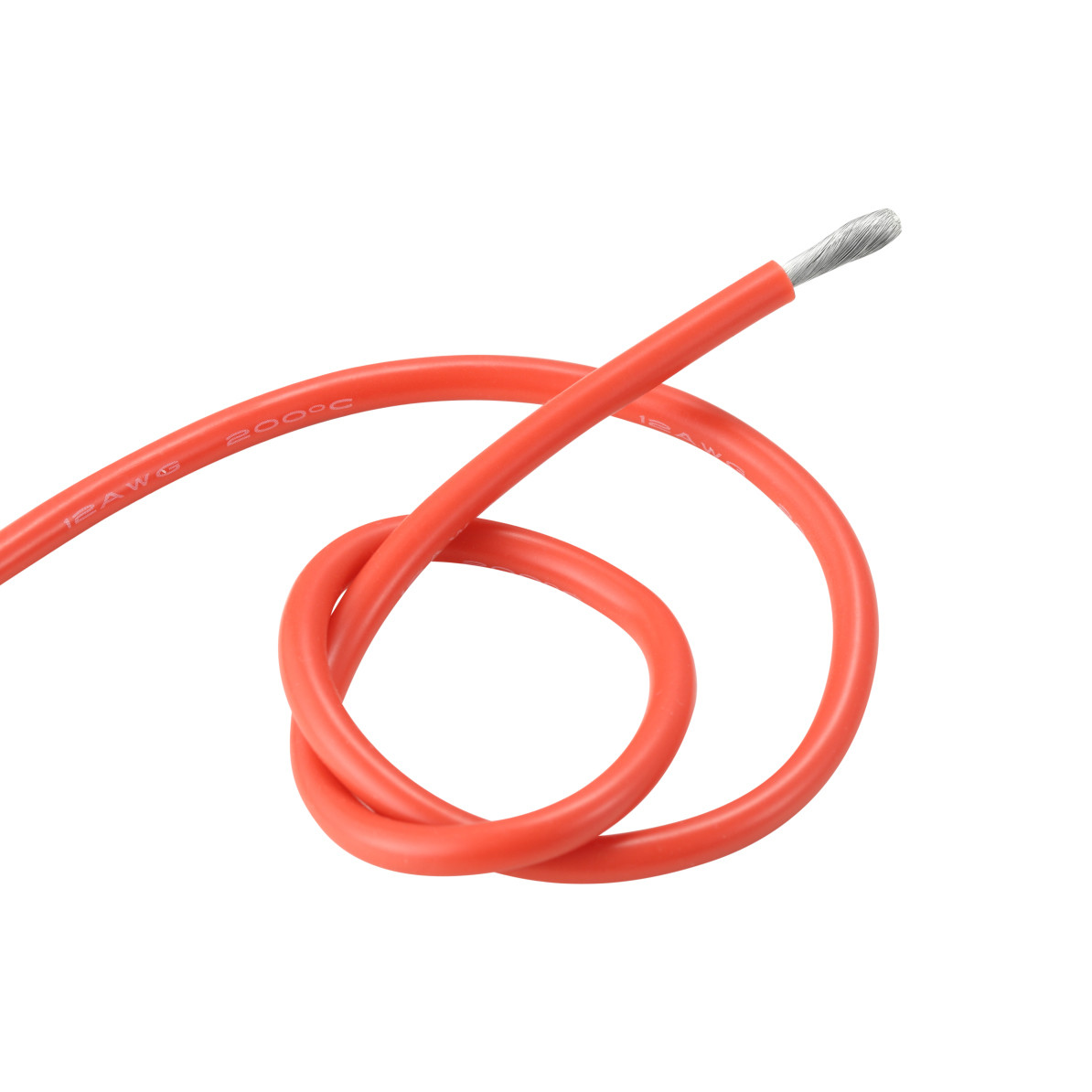

600V UL3135 Silicone Rubber Cable Tinned Copper 16awg Wire

Place of Origin Guangdong
Brand Name Mysun
Certification ISO9001,CE,UL,VDE,RoHS,CCC
Model Number 3135-28AWG
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305/610 Meters Per Roll
Delivery Time 5-10 working day
Payment Terms L/C, D/A, D/P, T/T, HSBC, MoneyGram
Supply Ability 2000000+meters+ Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name High Voltage Silicone Wire Conductor Type Stranded
Application Home Appliance,Headlamp Conductor Tinned Copper
Sheath Material Silicone Insulation Material Silicone Rubber
Size 26-12 Range Of Application Flame Ratardant
High Light

UL3135 Silicone Rubber Cable

,

600V Silicone Rubber Cable

,

16awg Braid Copper Wire

Leave a Message
Product Description

Braid Copper Wire UL3135 Silicone Rubber Cable 600V Tinned Copper 16awg Wire



Heat-proof electric cables using silicon rubber as an insulating material. The main uses are for home appliances, residential
facilities, office equipment, automotive electric appliances, etc., where its heat-resistance (180, 200 and 250 degrees
centigrade), excellent electric properties, and feasibility are needed. In addition, there are some wire lines that comply with the UL/CSA of overseas-standard products and the Electrical Safety Law.



Specifications:
Nominal voltage: 600V
Temperature range: 250℃

Material Shape: Round Wire
Conductor: Tinned copper wire

Range of Application: Flame Ratardant

Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)
Unit Length
(m)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal thickness(mm) Diameter
(mm)
0.30 12/0.18 0.71 0.78 2.27 59.78 305/1000
0.50 20/0.18 0.92 0.78 2.48 40.1 305/1000
0.75 30/0.18 1.13 0.78 2.69 26.7 305/1000
1.00 40/0.18 1.31 0.78 2.87 20 305/1000
1.25 50/0.18 1.46 0.78 3.02 15.35 305/1000
2.00 41/0.254 1.87 0.78 3.43 8.78 305/1000
2.50 50/0.254 2.08 0.78 3.64 7.16 305/1000



600V UL3135 Silicone Rubber Cable Tinned Copper 16awg Wire 0

600V UL3135 Silicone Rubber Cable Tinned Copper 16awg Wire 1





600V UL3135 Silicone Rubber Cable Tinned Copper 16awg Wire 2



600V UL3135 Silicone Rubber Cable Tinned Copper 16awg Wire 3

600V UL3135 Silicone Rubber Cable Tinned Copper 16awg Wire 4

600V UL3135 Silicone Rubber Cable Tinned Copper 16awg Wire 5



600V UL3135 Silicone Rubber Cable Tinned Copper 16awg Wire 6


Service

Packaging : Hard cardboard carton ( Customizable)

Shipment:
1. by express
2. by sea

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.
