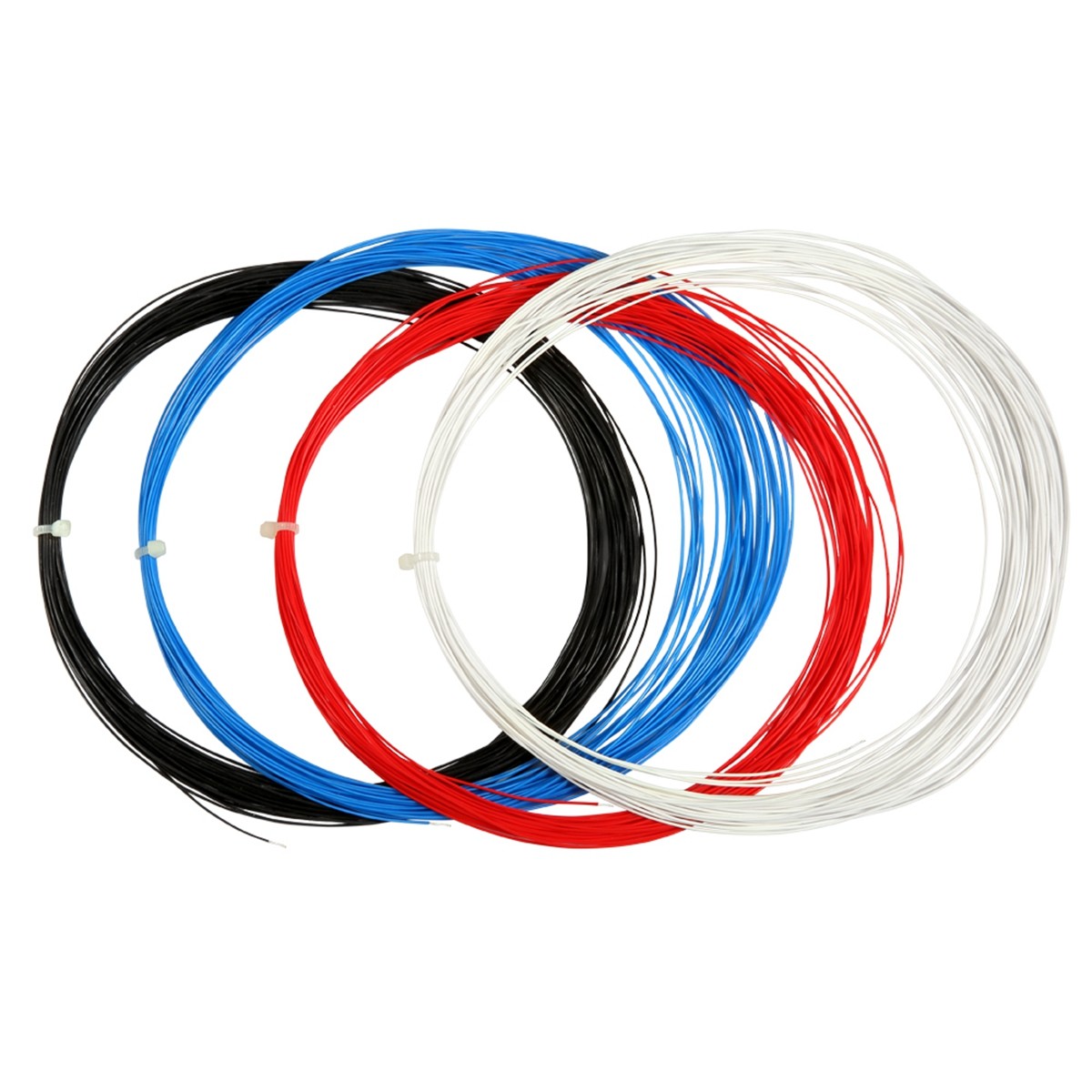

300V UL1858 FEP Insulated Wire 20AWG For Motor Electric Cars

  • 300V UL1858 FEP Insulated Wire 20AWG For Motor Electric Cars
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL1858
Minimum Order Quantity 305 meters
Price Negotiable
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Accept Customized Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 300V Rated Temperature 150C
Size 20AWG Conductor Tinned Copper
Standard UL758 Insulation PFA
Type Insulated Max.Cond Resistance 36.7 Ω/km
Construction 19/0.19
High Light

UL1858 FEP Insulated Wire

,

300V FEP Insulated Wire

,

Electric Cars FEP Copper Wire
Leave a Message
Product Description

UL Standard UL1858 PFA wires and cable 20AWG for motor electric cars



UL1858  Specifications:

Nominal voltage:300V

Temperature range: 150℃

Standard: UL1858

Insulation: PFA

Conductor: Tinned copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Our Product





300V UL1858 FEP Insulated Wire 20AWG For Motor Electric Cars 0





Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



300V UL1858 FEP Insulated Wire 20AWG For Motor Electric Cars 1



 Product Parameter



Conductor Insulation Max.cond Unit Length
resistance (m)(Ft)
Size Construction Diameter Nominal Thickness Diameter (Ω/km)
(AWG) (No./mm) (mm) (mm) (mm)
32 7/0.08 0.24 0.35 0.94 563 610/2000
30 7/0.10 0.30 1.00 361 610/2000
28 7/0.12 0.36 1.06 227 610/2000
26 7/0.16 0.48 1.18 143 610/2000
24 7/0.20 0.60 1.30 89.3 610/2000
22 19/0.15 0.75 1.45 56.4 305/1000
20 19/0.185 0.93 1.63 35.2 305/1000
18 19/0.235 1.17 1.85 22.2 305/1000
16 19/0.30 1.50 2.20 14 305/1000
14 19/0.37 1.85 2.55 8.78 305/1000
12 19/0.47 2.35 3.05 5.53 305/1000
10 37/0.43 3.00 3.70 3.476 305/1000


Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.



300V UL1858 FEP Insulated Wire 20AWG For Motor Electric Cars 2





Company Introduction



Mysun Dongguan factory
Employee: 183
Area: 18000m²
Daily capacity: 2000,000m above



300V UL1858 FEP Insulated Wire 20AWG For Motor Electric Cars 3

300V UL1858 FEP Insulated Wire 20AWG For Motor Electric Cars 4
