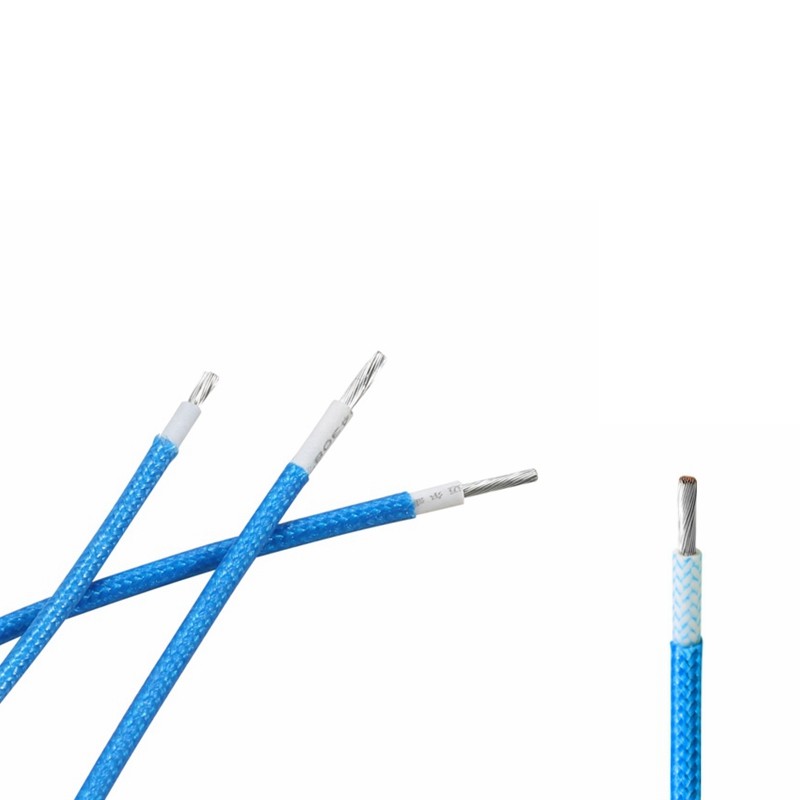

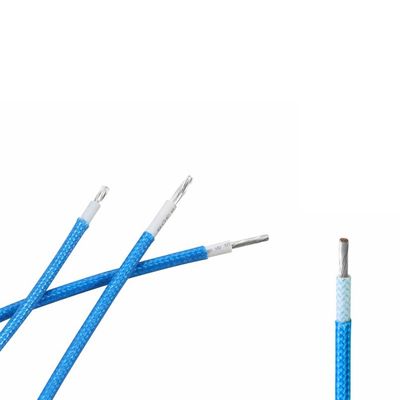

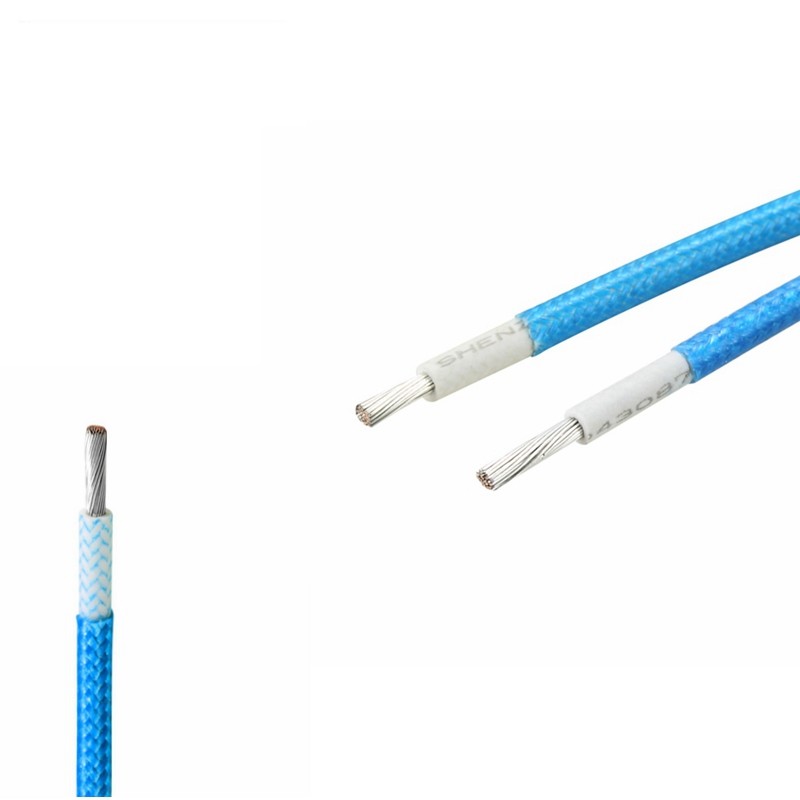

CCC UL3068 Silicone Wiring Cable 150c Stranded Conductor

  • CCC UL3068 Silicone Wiring Cable 150c Stranded Conductor
  • CCC UL3068 Silicone Wiring Cable 150c Stranded Conductor
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3068
Minimum Order Quantity 3050meters
Price 0.06~0.40USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Yellow Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 300v Rated Temperature 150C
Size 16awg Conductor Tinned Copper
Standard UL758 Insulation Silicone Rubber
Max.Cond Resistance 14.6Ω/KM Construction 7/0.49
High Light

CCC Silicone Wiring Cable

,

UL3068 Silicone Wiring Cable

,

150c Silicone Rubber Insulated Cable
Leave a Message
Product Description

UL3068 wiers and cable soft silicone wiring cable 150c in yellow



UL3068  Specifications:

Nominal voltage:450/750V

Temperature range: 180℃

Standard: UL3068

Insulation: Silicone Rubber

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.10 0.30 0.60 1.50 361 610/2000
28 7/0.127 0.38 1.58 227
26 7/0.16 0.48 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14



Our Product



CCC UL3068 Silicone Wiring Cable 150c Stranded Conductor 0



Product Description



CCC UL3068 Silicone Wiring Cable 150c Stranded Conductor 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



CCC UL3068 Silicone Wiring Cable 150c Stranded Conductor 2







Company Introduction



CCC UL3068 Silicone Wiring Cable 150c Stranded Conductor 3

CCC UL3068 Silicone Wiring Cable 150c Stranded Conductor 4
