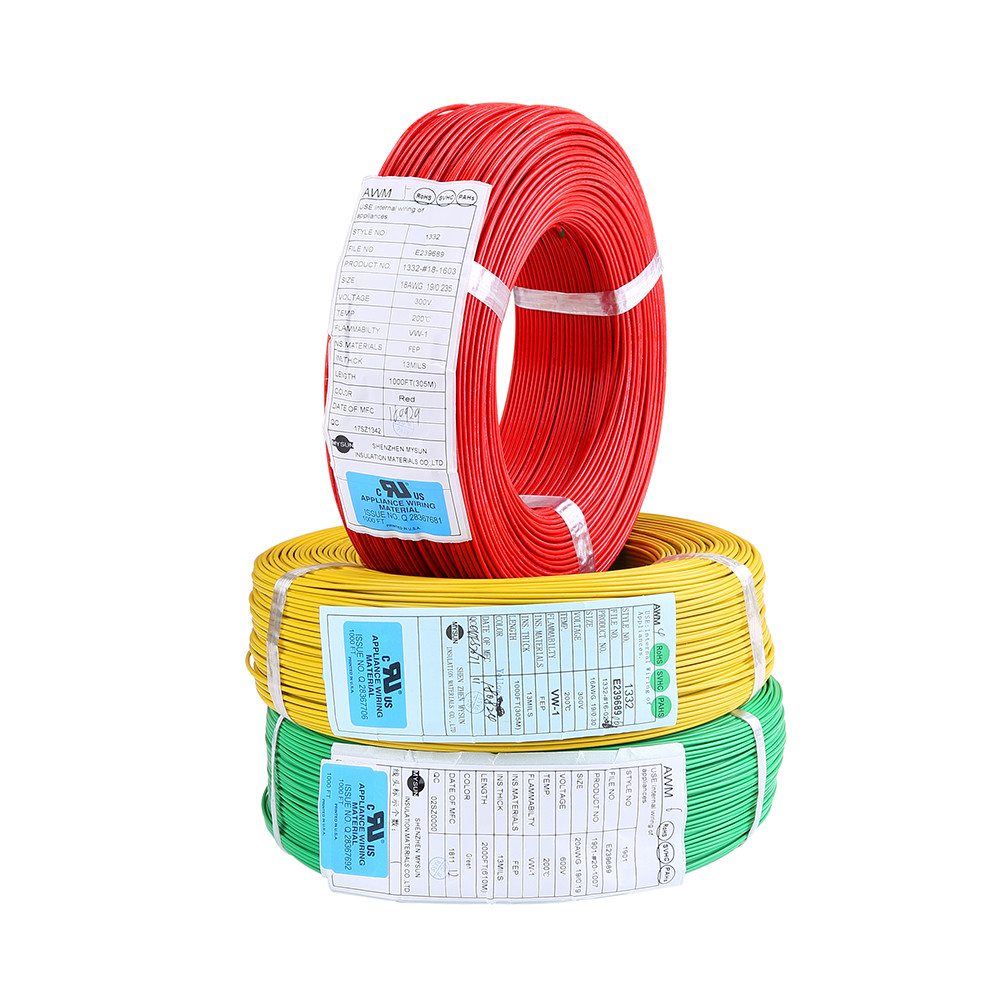

300v 200c UL1332 Tinned Copper FEP Insulated Cable 10-30AWG

  • 300v 200c UL1332 Tinned Copper FEP Insulated Cable 10-30AWG
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL1332
Minimum Order Quantity 305 meters
Price Negotiable
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Accept Customized Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 300V Rated Temperature 200C
Size 10-30AWG Conductor Tinned Copper
Standard UL758 Insulation FEP
Type Insulated Max.Cond Resistance 3.55-381 Ω/km
High Light

Tinned Copper FEP Insulated Cable

,

UL1332 FEP Insulated Cable

,

30AWG Conductor Tinned Copper Wires
Leave a Message
Product Description

Specifications:

Nominal voltage:300V

Temperature range: 200℃

Standard: UL758

Insulation:FEB

Conductor: Tinned Copper Wire





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







 Product Parameter



Conductor
Insulation
Max Cond resistance
(Ω/km)
Package
(m or ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Thickness
(mm)
Diameter
(mm)
30
7/0.1
0.3
0.305
0.91
381
610/2000
28
7/0.12
0.36
0.305
0.97
239
610/2000
26
19/0.1
0.48
0.305
1.11
150
610/2000
24
19/0.12
0.61
0.305
1.21
94.2
610/2000
22
19/0.15
0.77
0.33
1.41
59.4
305/1000
20
19/0.19
0.94
0.33
1.59
36.7
305/1000
18
19/0.235
1.19
0.33
1.83
23.2
305/1000
16
19/0.3
1.49
0.33
2.16
14.6
305/1000
14
19/0.37
1.85
0.33
2.51
8.96
305/1000
12
19/0.47
2.35
0.33
3.01
5.64
305/1000
10
19/0.61
3.05
0.33
3.71
3.55
305/1000


Applications:

* Widely used in lighting, household appliances, , lamps.

* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
