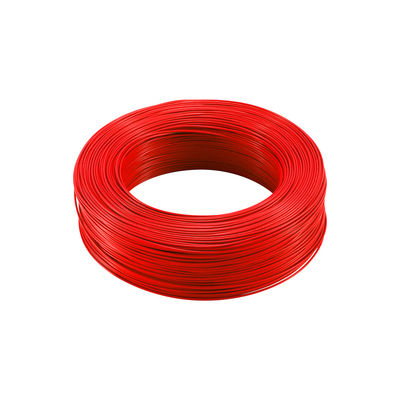

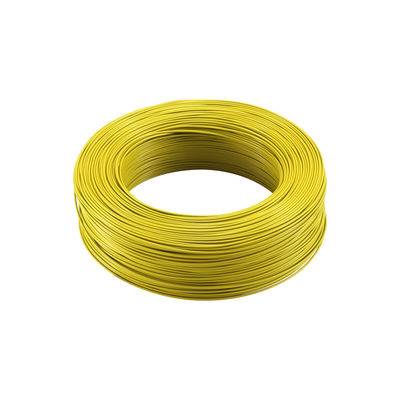

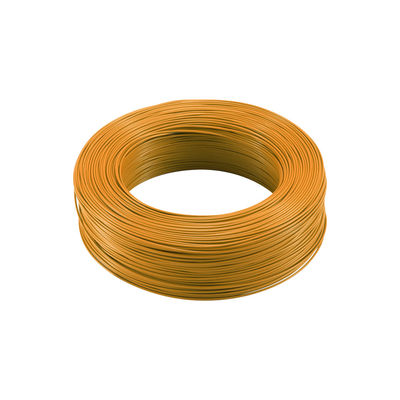

FEP Tinned Copper Insulated Wire UL1332 300v 200c For High Voltage

Place of Origin Guangdong,China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL1332
Minimum Order Quantity 305 meters
Price Negotiable
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Color Accept Customized
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 300V
Rated Temperature 200C Size 10-24 AWG
Conductor Tinned Copper Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation FEP
Type Insulated Max.Cond Resistance 3.55-94.2 Ω/km
High Light

FEP Tinned Copper Insulated Wire

,

Tinned Copper Insulated Wire UL1332

,

300v High Voltage Braided Wire

Leave a Message
Product Description

Specifications:

Nominal voltage:300V

Temperature range: 200℃

Standard: UL758

Insulation: Silicone Rubber + Fiber Glass

Conductor: FEP





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.



FEP Tinned Copper Insulated Wire UL1332 300v 200c For High Voltage 0



Our Product





FEP Tinned Copper Insulated Wire UL1332 300v 200c For High Voltage 1



Product Description



FEP Tinned Copper Insulated Wire UL1332 300v 200c For High Voltage 2

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



FEP Tinned Copper Insulated Wire UL1332 300v 200c For High Voltage 3



 Product Parameter





Conductor
Insulation

Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
inside Nominal Thickness
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM)
(M)(Ft)
24
1/0.50
0.5
0.20
0.21
1.32
89.3
610/2000
7/0.20
0.6
0.20
0.21
1.42
19/0.12
0.6
0.20
0.21
1.42
22
1/0.65
0.65
0.20
0.21
1.47
56.4
305/1000
7/0.254
0.76
0.20
0.21
1.58
19/0.15
0.75
0.20
0.21
1.57
20
1/0.81
0.81
0.20
0.21
1.63
35.2
305/1000
7/0.31
0.96
0.20
0.21
1.75
19/0.19
0.93
0.20
0.21
1.75
18
1/1.02
1.02
0.20
0.21
1.84
22.2
305/1000
7/0.39
1.17
0.20
0.21
1.99
19/0.235
1.17
0.20
0.21
1.99
16
1/1.30
1.3
0.20
0.21
2.12
14
305/1000
7/0.49
1.47
0.20
0.21
2.29
19/0.30
1.5
0.20
0.21
2.32
14
19/0.37
1.85
0.20
0.21
2.67
8.78
305/1000
12
19/0.47
2.35
0.20
0.21
3.17
5.53
305/1000
10
19/0.61
3.05
0.20
0.21
3.87
3.476
305/1000



Applications:

* Widely used in lighting, household appliances, , lamps.

* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.



FEP Tinned Copper Insulated Wire UL1332 300v 200c For High Voltage 4
