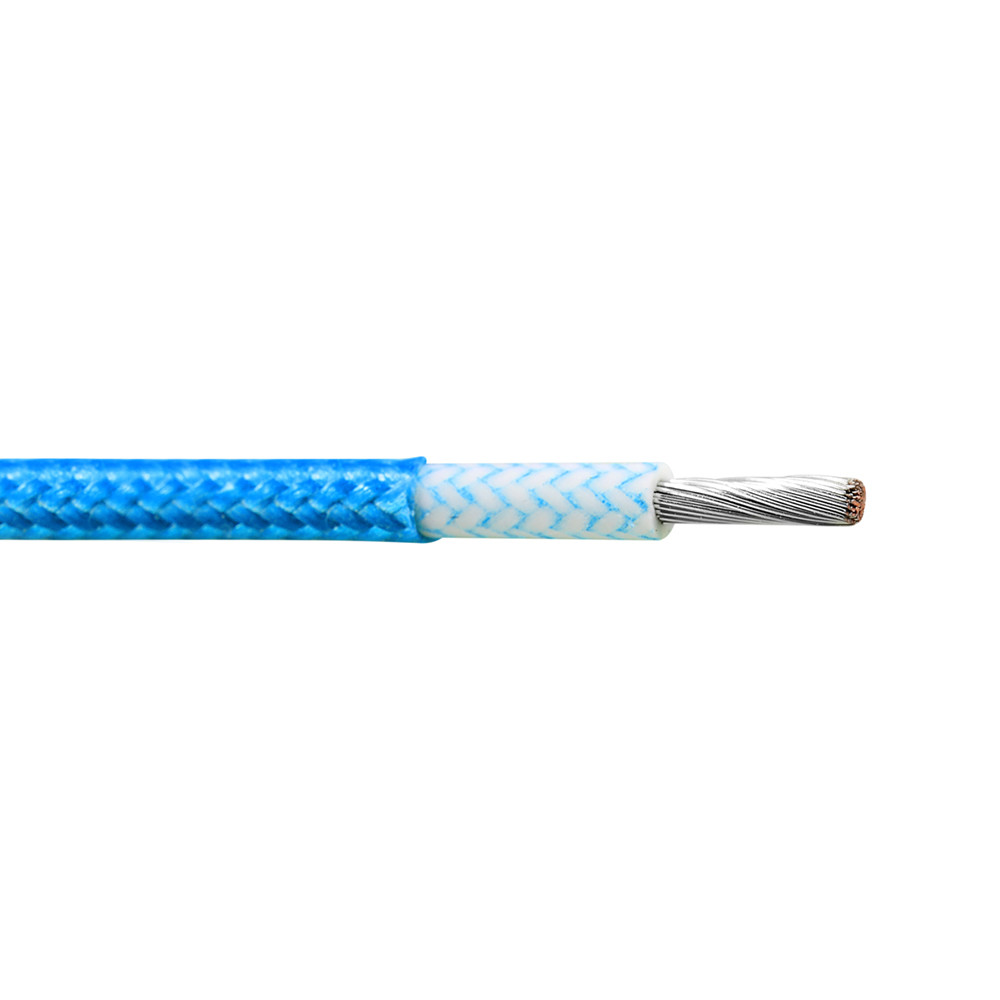

UL758 30AWG Stranded Copper Wire 600V High Temperature Insulation

  • UL758 30AWG Stranded Copper Wire 600V High Temperature Insulation
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3586
Minimum Order Quantity 305 meters
Price Negotiable
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Accept Customized Usage Inrernal Wiring
Rated Voltage 300V Rated Temperature 250C
Size 15-30AWG Conductor Copper
Standard UL758 Insulation Silicone Rubber+fiberglass
Type Insulated Max.Cond Resistance 11.30-381 Ω/KM
High Light

UL758 Stranded Copper Wire

,

30AWG Stranded Copper Wire

,

600V High Temperature Insulation Wire
Leave a Message
Product Description

Specifications:

Nominal voltage:300V

Temperature range: 250℃

Standard: UL3586

Insulation: Silicone Rubber + Fiber Glass

Conductor: I to 11 mil diameter single or paired resistance wire alloy spirally





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.



Our Product



UL758 30AWG Stranded Copper Wire 600V High Temperature Insulation 0



Product Description



UL758 30AWG Stranded Copper Wire 600V High Temperature Insulation 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



UL758 30AWG Stranded Copper Wire 600V High Temperature Insulation 2



 Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.



Conductor
Insulation
Max.cond
resistance
(Ω/km)
Unit Length
(m)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Nominal Thickness
(mm)
30
7/0.10
0.3
0.6
1.5
381
610(2000)
28
7/0.127
0.38
0.6
1.6
239
610(2000)
26
7/0.16
0.48
0.6
1.7
150
610(2000)
24
7/0.20
0.61
0.6
1.8
94.2
610(2000)
22
7/0.254
0.77
0.6
2.0
59.4
305(1000)
20
7/0.30
0.92
0.6
2.1
36.7
305(1000)
18
7/0.39
1.19
0.6
2.4
23.2
305(1000)
16
7/0.49
1.49
0.6
2.4
14.6
305(1000)
15
30/0.265
1.68
0.6
2.9
11.3
305(1000)


UL758 30AWG Stranded Copper Wire 600V High Temperature Insulation 3
