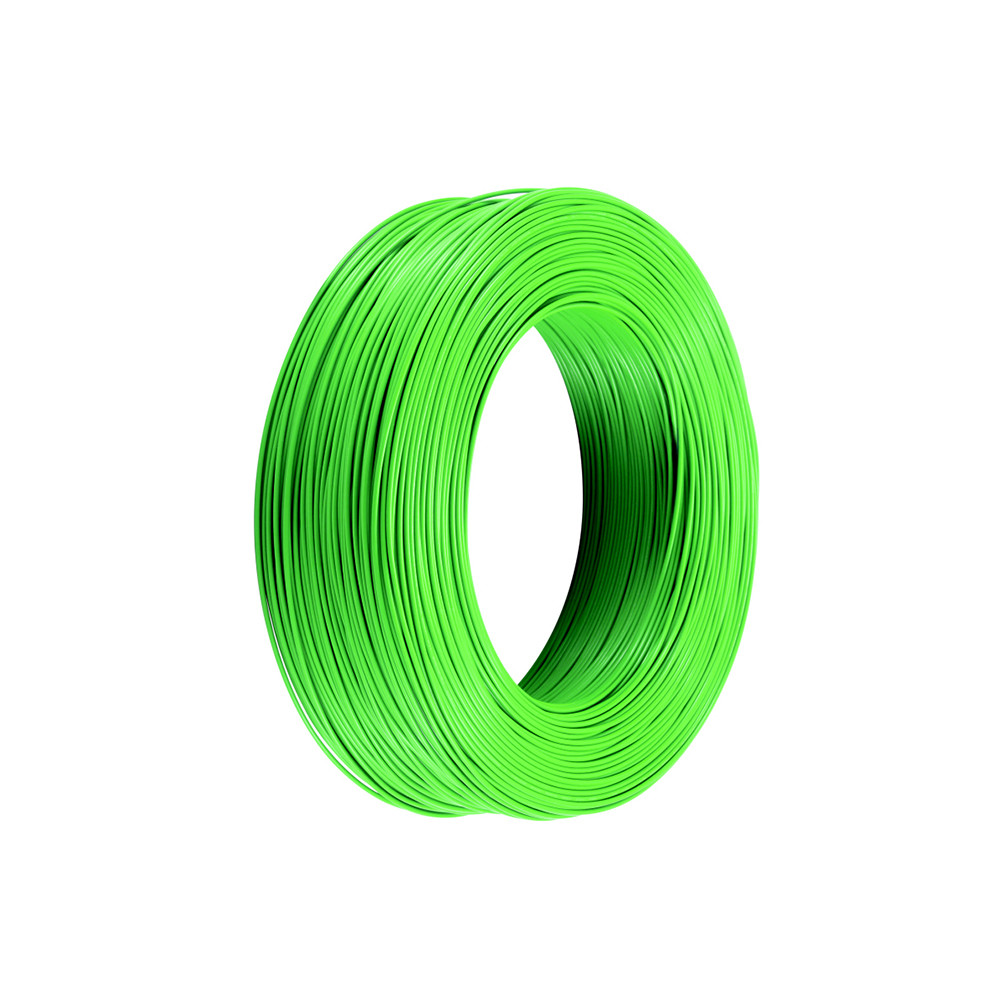

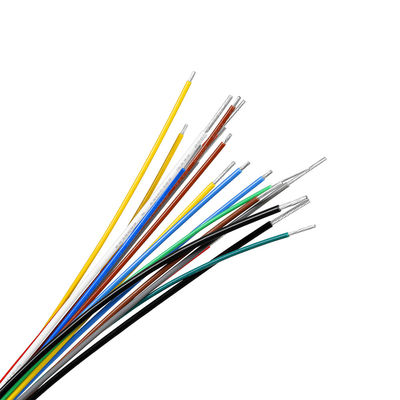

Tinned Copper 20AWG FEP Electrical Wire 105C UL10064

  • Tinned Copper 20AWG FEP Electrical Wire 105C UL10064
  • Tinned Copper 20AWG FEP Electrical Wire 105C UL10064
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL10064
Minimum Order Quantity 305 meters
Price Negotiable
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Accept Customized Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 30v Rated Temperature 105C
Size 14-32AWG Conductor Tinned Copper Wires
Standard UL758 Insulation Feb
Type Insulated Max.Cond Resistance 8.78-563 Ω/KM
High Light

Tinned Copper FEP Electrical Wire

,

20AWG FEP Electrical Wire

,

UL10064 FEP Insulation Wires
Leave a Message
Product Description

Specifications:

Nominal voltage:30V

Temperature range: 105℃

Standard: UL10064

Insulation: FEP

Conductor: Copper





Product Parameter



CONDUCTOR
INSULATION
MAX.COND RESISTANCE (Ω/KM)
UNIT LENGTH (M)(FT)
SIZE (AWG)
CONSTRUCTION (NO./mm)
DIAMETER (mm)
NOMINAL THICKNESS (mm)
DIAMETER (mm)
32
7/0.08
0.24
0.2
0.64
563
1220/4000
30
7/0.10
0.3
0.2
0.7
381
1220/4000
28
7/0.127
0.38
0.25
0.88
239
1220/4000
26
7/0.16
0.48
0.3
1.08
150
610/2000
24
7/0.2
0.61
0.3
1.21
94.2
610/2000
22
19/0.15
0.77
0.3
1.37
59.4
610/2000
20
19/.019
0.92
0.3
1.52
36.7
610/2000
18
19/0.235
1.19
0.3
1.79
23.2
305/1000
16
19/0.30
1.49
0.3
2.09
14.6
305/1000
14
19/0.37
1.87
0.35
2.57
8.78
305/1000





Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.



Our Product



Tinned Copper 20AWG FEP Electrical Wire 105C UL10064 0



Product Description



Tinned Copper 20AWG FEP Electrical Wire 105C UL10064 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



Tinned Copper 20AWG FEP Electrical Wire 105C UL10064 2









Company Introduction



Tinned Copper 20AWG FEP Electrical Wire 105C UL10064 3

Tinned Copper 20AWG FEP Electrical Wire 105C UL10064 4
