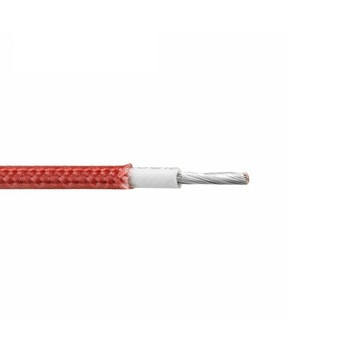

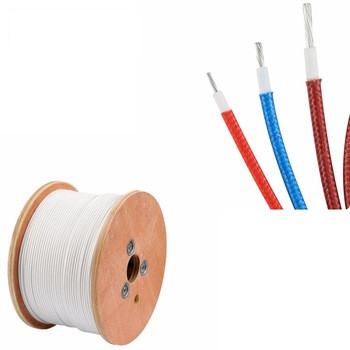

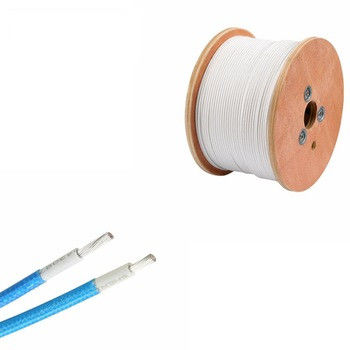

18AWG Fiberglass Braided Tinned Copper Wire UL 3071 FT2 Flame Test
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Name | Silicone Rubber Wire | Insulation | Silicone Rubber And Fiber Glass |
---|---|---|---|
Conductor | Tinned Copper | Rated Voltage | 600V |
Rated Temperature | 200C | Certificates | UL Certification |
Standard | UL758 | Size | 13-18AWG |
Color | Black Blue Red White Yellow Green Brown | MOQ | 1000meters |
High Light | Fiberglass Braided Tinned Copper Wire,18AWG Tinned Copper Wire,UL 3071 Silicone Rubber Wire |
Product Description
UL3071 silicone rubber wire
- Flexibility: silicone rubber insulation with fiberglass braided sleeving
- Maximum conductor resistance: 24.4 ohm/km
- Resistant to oil, hot and cold, flexing
- Rated temperature: -50°C to +200°C
- Rated voltage: 600 V
- Insulation potential strength: 2000 VAC/min
- Passes the FT2 flame test
- Available in 13AWG, 14AWG, 16AWG, and 18 AWG
Product demension:
Conductor | Insulation | Max.Cond Resistance | Unit length | |||
Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
18 | 7/0.39 | 1.19 | 0.93 | 3.05 | 22.2 | 305/1000 |
16 | 7/0.49 | 1.49 | 3.35 | 14 | ||
14 | 41/0.254 | 1.87 | 3.73 | 8.78 | ||
13 | 50/0.254 | 2.07 | 3.93 | 6.97 |
