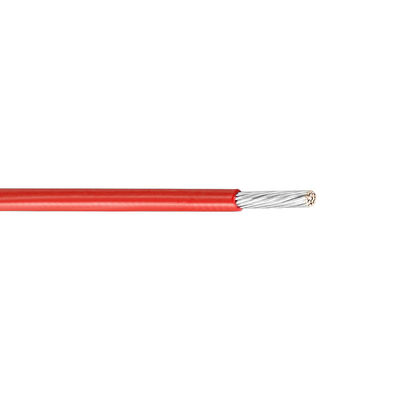

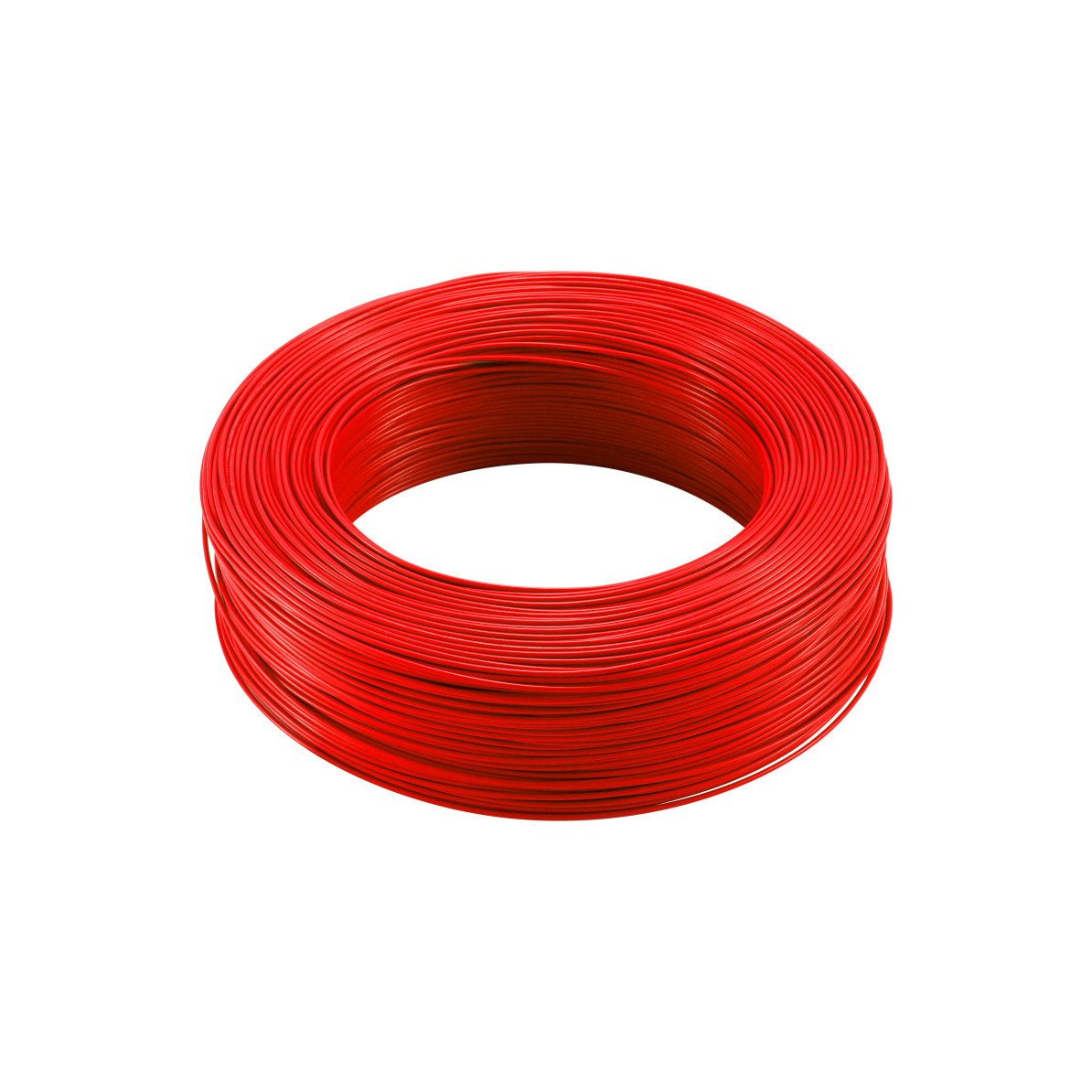

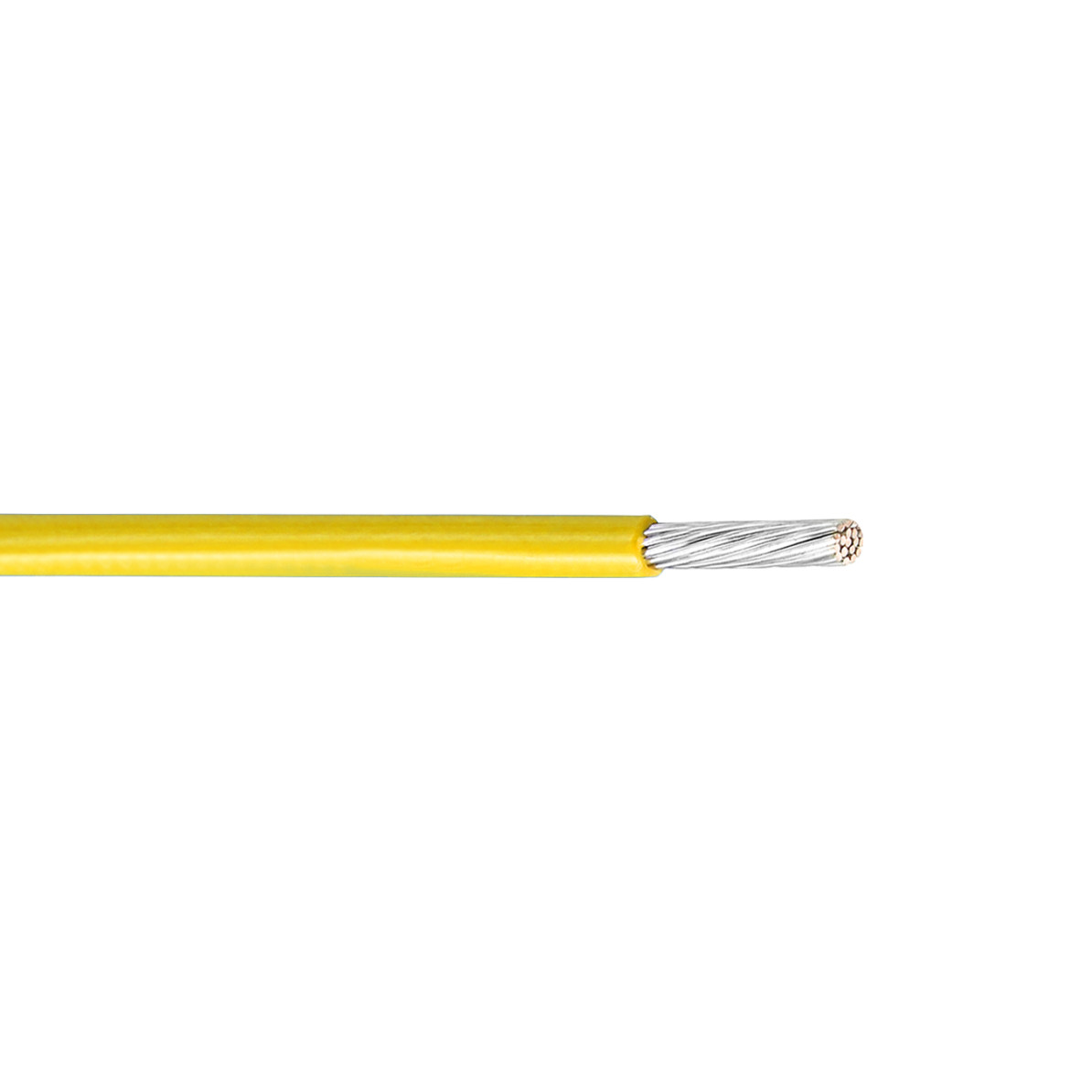

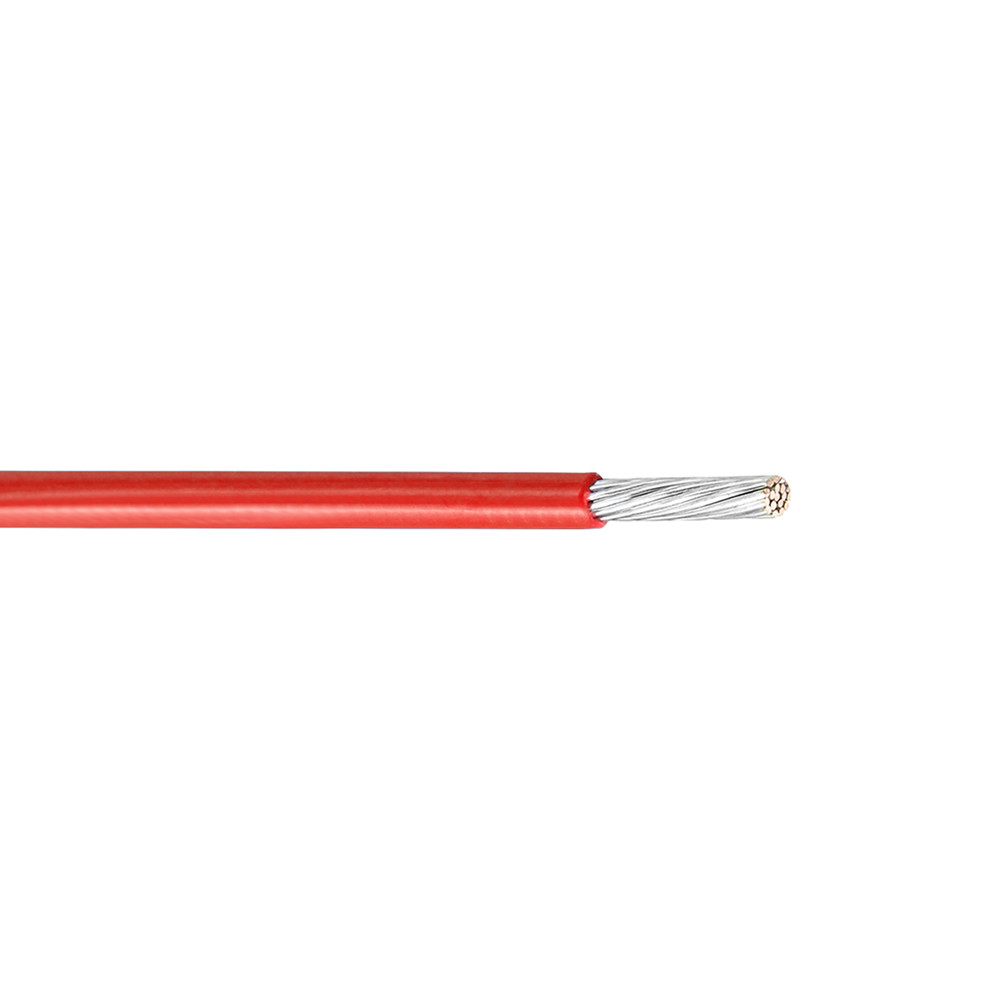

Tinned Copper UL1726 PFA Hook Up Wire Insulation 250C Flexible
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | UL1726 Insulation High Temperature L Resistance Electric Hook-up Wire | Color | All Colors |
---|---|---|---|
Conductor | Nickel-plated Copper | Insulation | PFA |
Rated Voltage | 300V | Rated Temperature | 250C |
Sample | Conventional Sample Free | Packing | 100m/roll,305m/roll |
Producing Experience | 20 Years | Delivery Time | 7-15 Days |
High Light | UL1726 PFA Hook Up Wire,Tinned Copper PFA Hook Up Wire,250C Flexible Hook Up Wire |
UL 1726 insulation high temperature l resistance electric hook-up wire
Specifications:
Nominal voltage: 300V
Temperature range: 250C
Standard: UL 758
Conductor: Nickel-plated copper wire
Insulation:PFA
Lead Time :
Quantity(Meters) | 1 - 6100 | >6100 |
Est. Time(days) | 7 | To be negotiated |
Product dimensions:
Conductor | Insulation | Max.cond resistance (Ω/km) |
Unit Length (m)(Ft) |
|||
Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
||
32 | 7/0.08 | 0.24 | 0.35 | 0.94 | 563 | 610/2000 |
30 | 7/0.10 | 0.30 | 0.35 | 1.00 | 361 | 610/2000 |
28 | 7/0.12 | 0.36 | 0.35 | 1.08 | 227 | 610/2000 |
26 | 7/0.16 | 0.48 | 0.35 | 1.18 | 143 | 610/2000 |
24 | 7/0.20 | 0.60 | 0.35 | 1.30 | 89.3 | 610/2000 |
22 | 19/0.15 | 0.75 | 0.35 | 1.45 | 56.4 | 305/1000 |
20 | 19/0.185 | 0.93 | 0.35 | 1.63 | 35.2 | 305/1000 |
18 | 19/0.235 | 1.17 | 0.35 | 1.87 | 22.2 | 305/1000 |
16 | 19/0.30 | 1.50 | 0.35 | 2.20 | 14 | 305/1000 |
14 | 19/0.37 | 1.85 | 0.35 | 2.55 | 8.78 | 305/1000 |
12 | 19/0.47 | 2.35 | 0.35 | 3.05 | 5.53 | 305/1000 |
10 | 37/0.43 | 3.00 | 0.35 | 3.70 | 3.476 | 305/1000 |
8 | 37/0.54 | 3.78 | 0.51 | 4.80 | 2.16 | customized |
7 | 37/0.60 | 4.20 | 0.51 | 5.22 | 1.716 | |
6 | 37/0.68 | 4.76 | 0.51 | 5.78 | 1.361 | |
5 | 37/0.76 | 5.32 | 0.80 | 6.92 | 1.079 | |
4 | 37/0.86 | 6.02 | 0.80 | 7.62 | 0.8859 | |
3 | 7/2.21 | 6.63 | 0.80 | 8.23 | 0.6788 | |
2 | 7/2.48 | 7.44 | 0.80 | 9.04 | 0.5384 | |
1 | 7/2.78 | 8.34 | 1.20 | 10.74 | 0.4268 | |
0 | 7/3.20 | 9.60 | 1.20 | 12.00 | 0.3367 | |
2/0 | 7/3.57 | 10.71 | 1.20 | 13.11 | 0.267 | |
3/0 | 7/3.94 | 11.82 | 1.20 | 14.22 | 0.2119 | |
4/0 | 7/4.42 | 13.26 | 1.20 | 15.66 | 0.168 |
