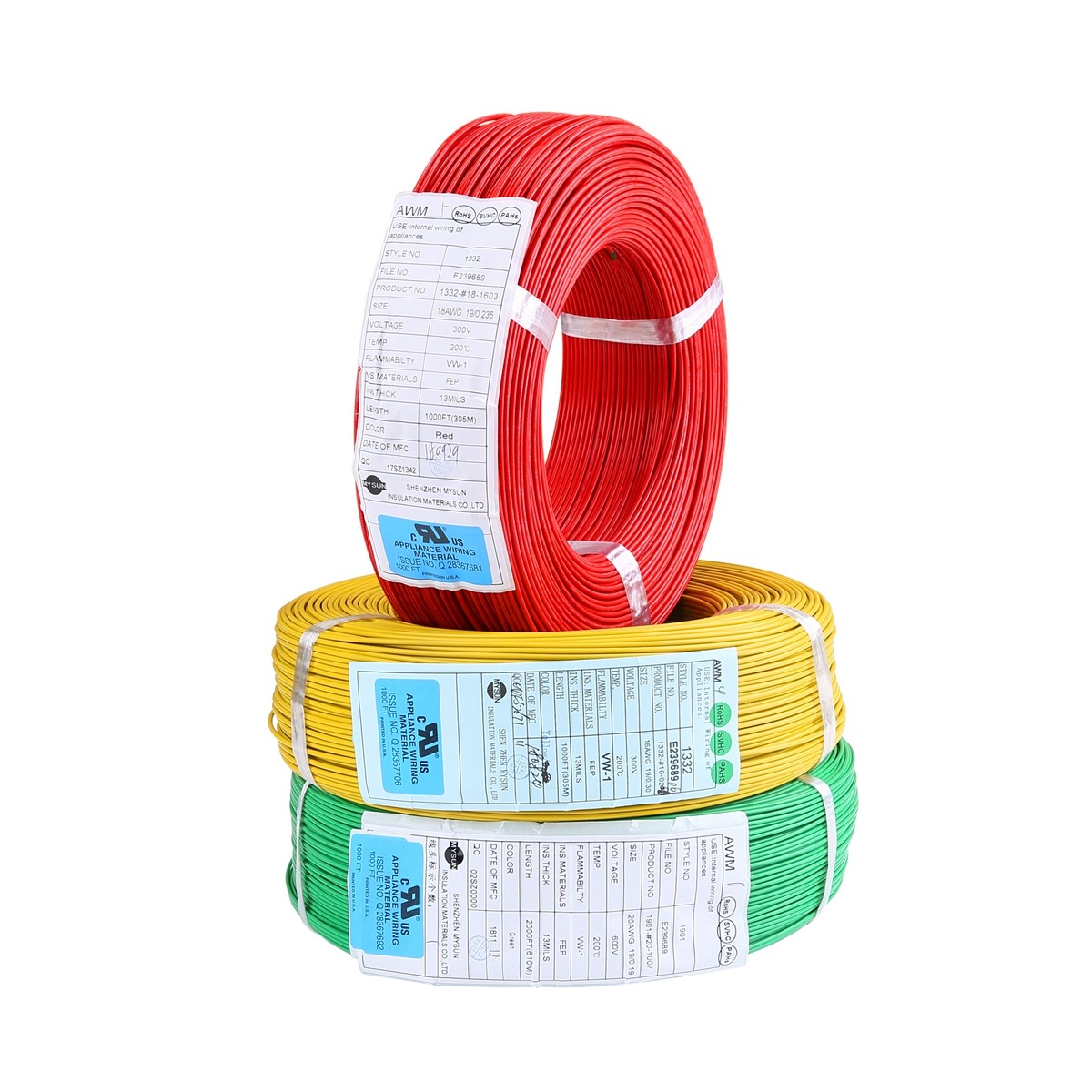

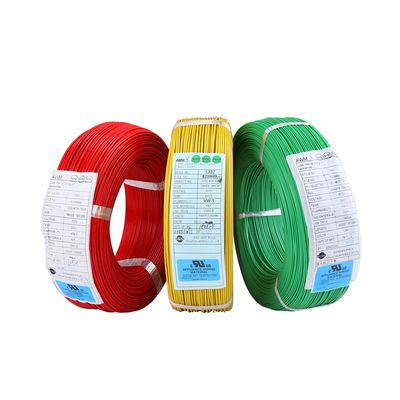

600V 250C AWM 14 AWG Wire , High Temperature Hook Up Wire UL10362

Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL10362
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 250℃
Insulation PFA Conductor Tinned Copper
Standard UL758 Color All Colors Are Available
Appliance Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Packing Reel Name Automotive Wire
Size 4/0-30AWG Name High Temperature Cable
High Light

UL3068 Fiberglass Braided Wire

,

XLPE Insulated Hook Up Wire

,

UL3134 Silicone Rubber Insulated Wire

Leave a Message
Product Description

600V 250C AWM 14AWG UL10362 Insulated Wire hook up wire



Specifications:

Nominal voltage:600V

Temperature range:250C

Standard: UL 758

Insulation: PFA

Jacket: silicone rubber

Conductor: tinned copper wire

appliance:home appliance, headlamp, industrial machine, electro thermal products.



Product dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size Construction Diameter Nominal Thickness Diameter (Ω/KM) (M)(Ft)
(AWG) (No./mm) (mm) (mm) (mm)
30 7/0.10 0.3 0.3 0.9 361 610/2000
28 7/0.12 0.38 0.3 0.96 227 610/2000
26 7/0.16 0.48 0.3 1.08 143 610/2000
24 7/0.20 0.61 0.3 1.2 89.3 610/2000
22 19/0.15 0.75 0.3 1.35 56.4 305/1000
20 19/0.185 0.93 0.3 1.53 35.2 305/1000
18 19/0.235 1.17 0.3 1.77 22.2 305/1000
16 19/0.30 1.5 0.3 2.2 14 305/1000
14 19/0.37 1.85 0.3 2.55 8.78 305/1000
12 19/0.47 2.35 0.3 3.15 5.53 305/1000
10 37/0.43 3 0.3 3.8 3.476 305/1000
8 37/0.54 3.78 0.8 5.38 2.16
7 37/0.60 4.2 0.8 5.8 1.716
6 37/0.68 4.76 0.8 6.36 1.361
5 37/0.76 5.32 0.8 6.92 1.079
4 37/0.86 6.02 0.8 7.62 0.8559
3 7/2.21 6.63 0.8 8.23 0.6788 as order
2 7/2.48 7.44 0.8 9.04 0.5384
1 7/2.78 8.34 1.2 10.74 0.4268
0 7/3.20 9.6 1.2 12 0.3367
2/0 7/3.57 10.71 1.2 13.11 0.267
3/0 7/3.94 11.82 1.2 14.22 0.2119
4/0 7/4.42 13.26 1.2 15.66 0.168



PFA Insulated Wires for Demanding Applications



PFA is a form of extruded possessing outstanding insulation properties.

The material is widely chosen for several specialty wires and cables for use in NOx sensors,

gas igniters, medical and scientific instruments, aircraft, and marine systems.



The material can withstand harsh operating conditions, and can resist operating temperatures up to 260° C.

There are more exciting aspects about PFA insulation. You will find them in the list given below.

  • Possesses exceptional chemical resistance
  • Exhibits superior creep resistance at high temperatures
  • Remains flexible at low temperatures
  • Possesses exceptional flame resistance as it is manufactured meeting stringent fire safety regulations
  • Has high resistance to oils, acids, and alkaline substances
  • Possesses good dielectric strength
  • Exhibits exceptional abrasion resistance
  • Possesses high resistance to cracking, cut-through, soldering, and solvents.
  • Has very good heat, oil, and weather resistance.







Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
