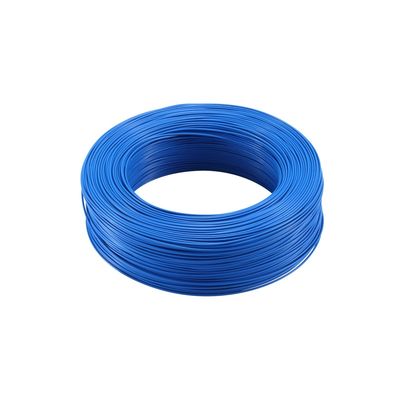

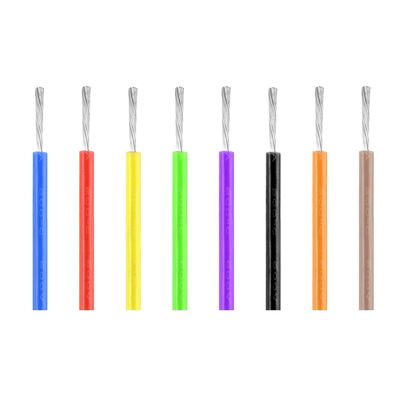

Silicone Rubber coated UL3512 0.5-4.0sqmm Electrical Flexible Insulated Wire

Place of Origin CHINA
Brand Name MYSUN
Certification UL CSA ROHS REACH
Model Number UL3512
Minimum Order Quantity 3050meters
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 1.5million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 0.5-4.0sqmm Conductor Tinned Copper
Insulation Silicone Rubber Standard UL758
Packing Wooden Drum Certification ISO9001/ISO14001
High Light

FEP Insulated Tinned Copper Wire

,

UL3122 Fiber Glass Braided Wire

,

Tinned Copper PFA Insulated Wire

Leave a Message
Product Description

Silicone Rubber coated UL3512 0.5-4.0sqmm Electrical Flexible Insulated Wire


Silicone wire features:
1. Heat-proof electric cables using silicon rubber as an insulating material.

2. The main uses are for home appliances, residential,facilities, office equipment, automotive electric appliances, etc.,

3. where its heat-resistance (180, 200 and 250 degreescentigrade), excellent electric properties, and feasibility are needed.

4. In addition, there are some wire lines that comply with the UL/CSA of overseas-standard products and the Electrical Safety Law.

Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
0.50 20/0.18 0.95 0.78 2.51 40.1 305/1000
0.75 30/0.18 1.17 2.73 26.7
1.00 40/0.18 1.3 2.86 20
1.25 50/0.18 1.5 3.06 14.35
1.50 30/0.25 1.60 3.16 13.7
2.00 41/0.254 1.85 3.41 8.78
2.50 50/0.25 2.06 3.62 7.16
3.00 60/0.25 2.30 3.86 6.5
4.00 56/0.30 2.62 4.18 4.7


Certificate:
