Contact Person : Peter Sun
Phone Number : 0086-13823381460

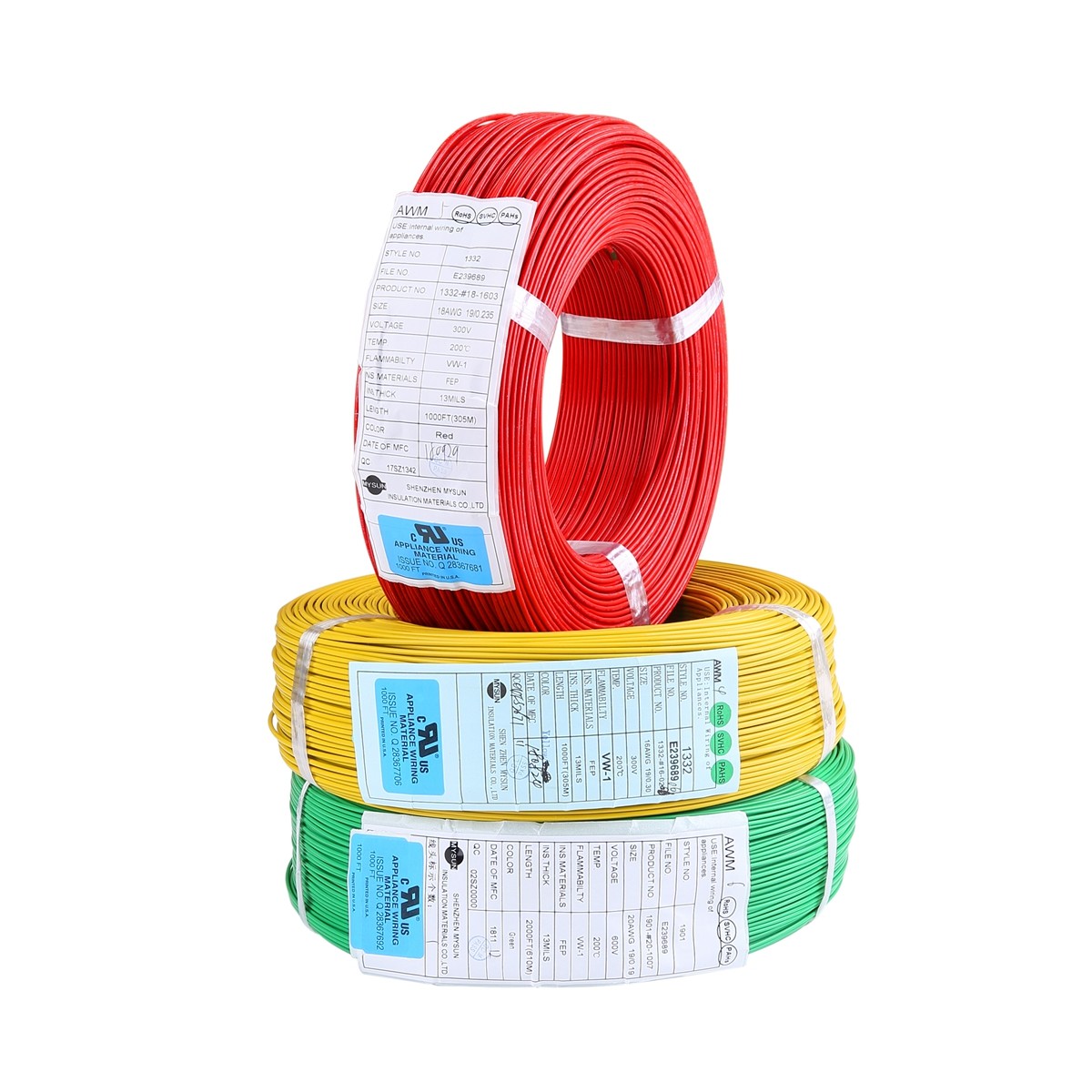

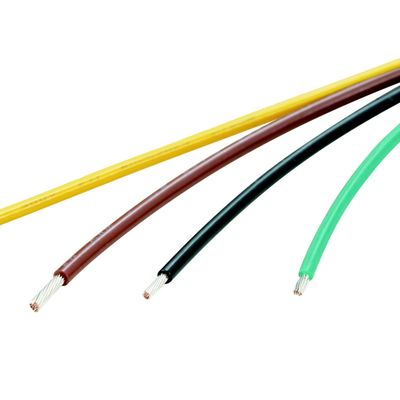

UL1199 PTFE coated nickel sliver plated copper wire 600V 200C electrical flexible wire

Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL1199
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 850000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL1199 20awg In Electrical High Quality PTFE Wire Cable Color All Colors
Conductor Nickel-plated Copper Insulation PTFE
Rated Voltage 600V Rated Temperature 200C
Sample Conventional Sample Free Packing 100m/roll,305m/roll
Producing Experience 20 Years Delivery Time 7-15 Days
High Light

FEP Insulated Tinned Copper Wire

,

UL3122 Fiber Glass Braided Wire

,

Tinned Copper PFA Insulated Wire

Leave a Message
Product Description

UL1199 PTFE coated nickel sliver plated copper wire 300V 200C electrical flexible wire



Specifications:

Nominal voltage: 600V

Temperature range: 200C

Standard: UL 758

Conductor: Nickel-plated copper wire

Insulation: Silicone Rubber



Lead Time :

Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
30 7/0.1 0.3 0.51 1.32 361 610/2000
28 7/0.127 0.36 1.38 227
26 7/0.16 0.48 1.5 143
24 7/0.20 0.6 1.62 89.3
22 19/0.15 0.75 1.77 56.4 305/1000
20 19/0.185 0.93 1.95 35.2
18 19/0.235 1.17 0.51 2.19 22.2
16 19/0.30 1.5 2.52 14
14 19/0.37 1.85 2.87 8.78
12 19/0.47 2.35 3.37 5.53
10 37/.43 3 4.02 3.476
8 37/0.54 3.78 0.8 5.38 2.16 customized
7 37/0.60 4.2 5.8 1.716
6 37/0.68 4.76 6.36 1.361
5 37/0.76 5.32 6.92 1.079
4 37/0.86 6.02 7.62 0.8859
3 7/2.21 6.63 8.23 0.6788
2 7/2.48 7.44 9.04 0.5384
1 7/2.78 8.34 1.2 10.74 0.4268
0 7/3.20 9.6 12 0.3367
2/0 7/3.57 10.71 13.11 0.267
3/0 7/3.94 11.82 14.22 0.2119
4/0 7/4.42 13.26 15.66 0.168

Product dimensions:

QNH76117-b--20170321_01--20170321_08--20170321_02--20170321_03--20170321_04--20170321_05--20170321_06--20170321_012


Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
