High Resistance Fiberglass Braided Wire AWM 3123 Microwave Oven Application

High Resistance Fiberglass Braided Wire AWM 3123 Microwave Oven Application

    • High Resistance Fiberglass Braided Wire AWM 3123 Microwave Oven Application
    • High Resistance Fiberglass Braided Wire AWM 3123 Microwave Oven Application
    • High Resistance Fiberglass Braided Wire AWM 3123 Microwave Oven Application
  • High Resistance Fiberglass Braided Wire AWM 3123 Microwave Oven Application

    Product Details:

    Place of Origin: Guangdong
    Brand Name: Mysun
    Certification: UL/cUL/CCC/CE/RoHS/SGS
    Model Number: UL3123

    Payment & Shipping Terms:

    Minimum Order Quantity: 3050/6100 meters
    Price: Negotiable
    Packaging Details: 305/610 Meters per Roll / 7 Rolls per Carton or can be customized
    Delivery Time: 7-10 Working Days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 500000 Meters per Day
    Contact Now
    Detailed Product Description
    Item: Fiberglass Braided Wire Insulation: Silicone Rubber+fiberglass
    Conductor: Tinner Copper Size: 16-30AWG
    OD: 1.68-2.69mm Application: Home Application
    Country Of Orgin: Guangdong, China Standard: UL758
    Package: 305m/roll Model: AWM3123
    Rated Voltage: 600V Rated Temperature: 150°c

    Fiberglass braided wire



    Specifications:

    Nominal voltage: 600V

    Temperature range: 150℃

    Standard: UL 758

    Insulation: silicone rubber + fiberglass

    Conductor: tinned copper wire



    Product features:

    Fiberglass braided wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance, high voltage resistance, aging resistance, long service life and soft and easy to install.







    Product dimensions:



    Conductor Insulation Max.cond
    resistance
    (Ω/km)
    Unit Length
    (m)(Ft)
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Inside thickness(mm) Diameter
    (mm)
    30 7/0.10 0.30 0.78 1.86 361 305/1000
    28 7/0.12 0.36 0.78 1.92 227 305/1000
    26 7/0.16 0.48 0.78 2.04 143 305/1000
    24 7/0.20 0.60 0.78 2.16 89.3 305/1000
    22 7/0.25 0.76 0.78 2.32 56.4 305/1000
    20 7/0.31 0.93 0.78 2.49 35.2 305/1000
    18 7/0.39 1.17 0.78 2.73 22.2

    305/1000

    16 7/0.49 1.47 0.78 3.03 14 305/1000

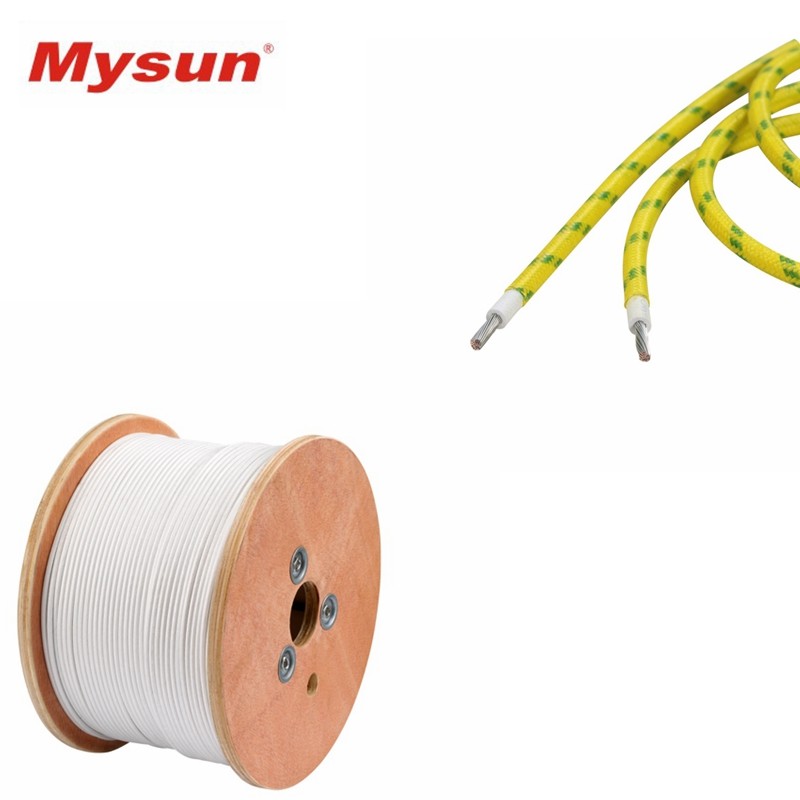

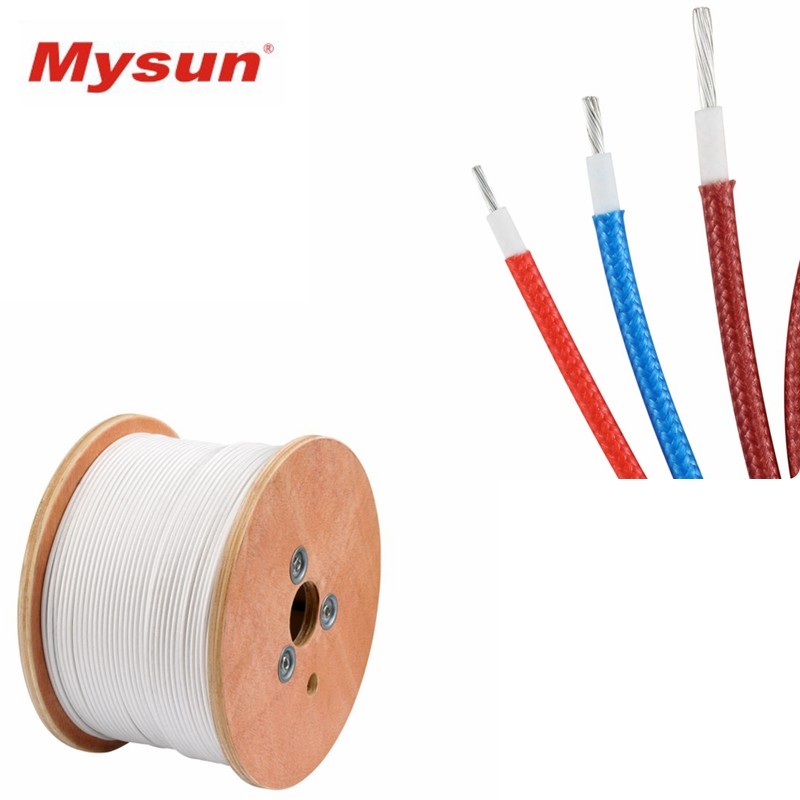

    Product shoot:

    High Resistance Fiberglass Braided Wire AWM 3123 Microwave Oven Application

    High Resistance Fiberglass Braided Wire AWM 3123 Microwave Oven Application







    Service

    Packaging : Hard cardboard carton ( Customizable)

    Shipment:
    1. by express
    2. by sea

    3. by air plane

    If you have your own shipper,you can tell me in advance.

    My targert is to give my best serivce for you and hope we can have a good cooperation!


    Delivery:
    Sample order: 1-3 working days
    Big order: 5-10 working day
    Customized order: 10-15 working days





    FAQ:



    1, What’s the MOQ?

    One roll. 100M/200M/300M/305M/500M/Roll.



    2, How to get the samples?

    We have most of the commonly used samples in Stock.

    We can offer the free samples immediately.



    3, What’s the payment terms?

    LC, TT, Western Union, Money Gram and PayPal



    4, What’s the delivery date?

    Most of the commonly used products are in Stock. We can arrange it within one day.

    We will arrange the delivery date as your requirement while the Bulk Production.



    5, How to visit your factory/company?

    We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away. Convenient for visit.
