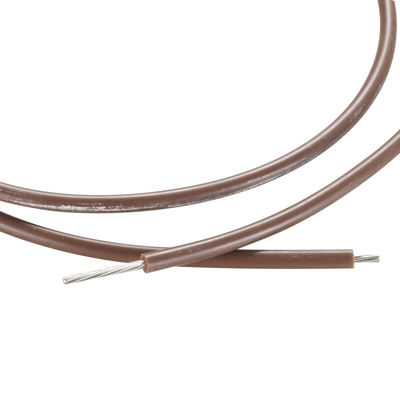

AWM3271 18AWG brown home appliance XLPE Hook Up Wire Tinned Copper

Place of Origin Guangdong
Brand Name Mysun
Certification UL/cUL
Model Number 3271-18AWG
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 100/305 Meters per Roll/ 7 Rolls per Carton
Delivery Time 7-10 Woking Days
Payment Terms L/C, D/A, T/T, Western Union,Paypal,HSBC
Supply Ability 400000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name XLPE Electrical Wire Model AWM3271
Conductor Tinned Copper Diameter 1.86-9.90 Mm
Rated Voltage 600-750V Rated Temperature 125℃
Standard UL758 Flammability Rating VW-1/FT-1/-LF-/-HF-
Color 8 Colors Original Of Place China
Package 305 Meters Per Roll Insluation XLPE
High Light

xlpe insulated wire

,

electric hook up cable

Leave a Message
Product Description

XLPE hook up wires



Specifications:

Nominal voltage: 600-750V

Temperature range: 125℃

Standard: UL 758

Insulation: XLPE

Conductor: tinned copper wire



Product features:

XLPE hook up wires has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance, high voltage resistance, aging resistance, long service life and soft and easy to install.







Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)
Unit Length
(m)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Inside thickness(mm) Diameter
(mm)
28 7/0.127 0.38 0.78 1.94 227 610/2000
26 7/0.16 0.48 0.78 2.04 143 610/2000
24 11/0.16 0.60 0.78 2.16 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 21/0.18 0.94 0.78 2.49 35.2 305/1000
18 16/0.254 1.18 0.78 2.73 22.2 305/1000
16 26/0.254 1.50 0.78 3.05 14 305/1000
14 41/0.254 1.89 0.78 3.45 8.78 305/1000
12 65/0.254 2.37 0.78 3.93 5.53 305/1000
10 105/0.254 3.02 0.78 4.58 3.476 305/1000
9 133/0.254 3.36 1.15 4.92 2.73 100/328
8 133/0.28 3.75 1.15 6.05 2.16 100/328

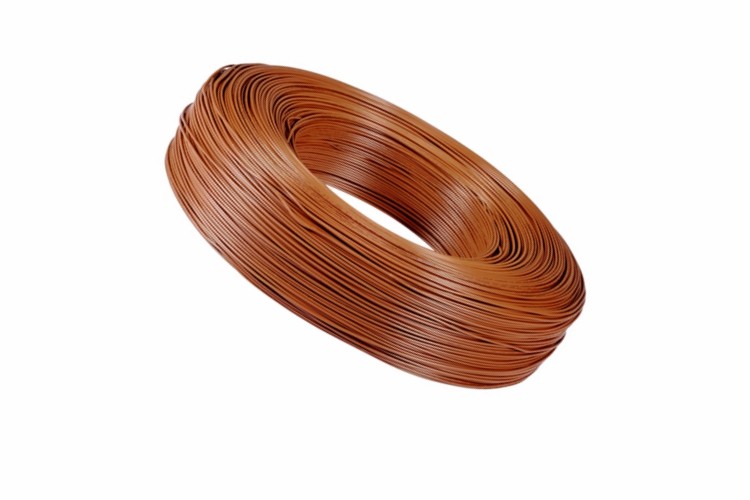

AWM3271 18AWG brown home appliance XLPE Hook Up Wire Tinned Copper 1

Service

Packaging : Hard cardboard carton ( Customizable)

Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away. Convenient for visit.
