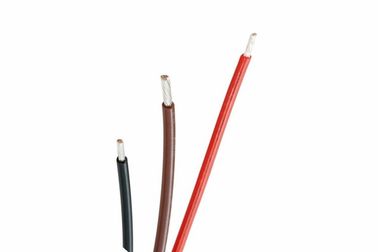

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options

  • PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
  • PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
  • PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
  • PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options
Place of Origin CHINA
Brand Name MYSUN
Certification UL
Model Number UL1199
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 0.6 million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation PTFE Conductor Nickel Or Silver Plated
Size 30AWG-4/0AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink, Transparent
Rated Voltage 600V Working Temp 200C
Use In Home Appliance, Industry And So On SPQ 305m/roll, 610m/roll
Package Reel, Carton, Pallet Flame Retardant VW-1
High Light

insulated hookup wire

,

coated electrical wire
Leave a Message
Product Description

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options



Specification:

Rated voltage: 600V

Rated temperature: 200C

UL standard: UL758

Applications: this wire widely sued for motor. lighting, sensor and home appliance.



Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.1 0.3 0.51 1.32 361 610/2000
28 7/0.127 0.36 1.38 227
26 7/0.16 0.48 1.5 143
24 7/0.20 0.6 1.62 89.3
22 19/0.15 0.75 1.77 56.4 305/1000
20 19/0.185 0.93 1.95 35.2
18 19/0.235 1.17 0.51 2.19 22.2
16 19/0.30 1.5 2.52 14
14 19/0.37 1.85 2.87 8.78
12 19/0.47 2.35 3.37 5.53
10 37/.43 3 4.02 3.476
8 37/0.54 3.78 0.8 5.38 2.16 customized
7 37/0.60 4.2 5.8 1.716
6 37/0.68 4.76 6.36 1.361
5 37/0.76 5.32 6.92 1.079
4 37/0.86 6.02 7.62 0.8859
3 7/2.21 6.63 8.23 0.6788
2 7/2.48 7.44 9.04 0.5384
1 7/2.78 8.34 1.2 10.74 0.4268
0 7/3.20 9.6 12 0.3367
2/0 7/3.57 10.71 13.11 0.267
3/0 7/3.94 11.82 14.22 0.2119
4/0 7/4.42 13.26 15.66 0.168



Cable details:

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options 0

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options 1
PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options 2

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options 3

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options 4

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options 5

PTFE coated UL1199 insulated wire 30-4/0AWG sizes for options 6



Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
