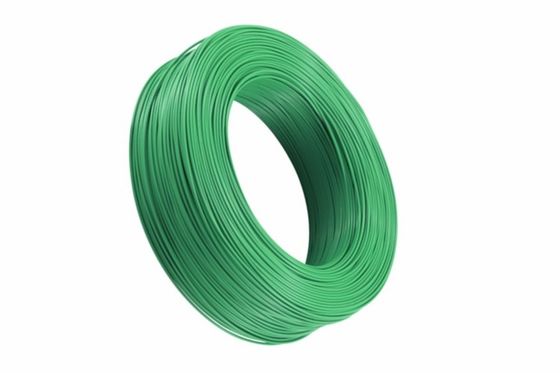

UL Listed AWM UL3530 Silicone Rubber Insulated Wire High Temperature Resistance

UL Listed AWM UL3530 Silicone Rubber Insulated Wire High Temperature Resistance

    • UL Listed AWM UL3530 Silicone Rubber Insulated Wire High Temperature Resistance
    • UL Listed AWM UL3530 Silicone Rubber Insulated Wire High Temperature Resistance
    • UL Listed AWM UL3530 Silicone Rubber Insulated Wire High Temperature Resistance
  • UL Listed AWM UL3530 Silicone Rubber Insulated Wire High Temperature Resistance

    Product Details:

    Place of Origin: China
    Brand Name: MYSUN
    Certification: UL
    Model Number: UL 3530

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305m/roll
    Payment Terms: T/T
    Supply Ability: 50,000m/day
    Contact Now
    Detailed Product Description
    Rated Voltage: 600V Rated Temperature: 150℃ OR 200℃
    Conductor: Tinned Copper Insulation: Silicone Rubber
    Certification: ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Application: Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products.
    Color: Customized Name: Lead Wire, Heating Wire, Hook Up Wire
    Flame Test: FT-2 Elongation: 200%

    flexible UL 3530 Silicone Rubber Insulated Wire



    specifications



    Retad voltage 600V
    Retad temperature 150°C or 200°C
    Insulation silicone rubber
    Conductor Tinned copper
    Standards UL 758
    size awg1-26
    M/FT 305/1000
    Color white,black,red,brown,yellow,blue,green,transparent etc.



    APPLICATION:

    Wiring of hearting elements,cartrides,bands,bands and hot plates.

    Domestic electrical hearting appliances,professional kitchens and ovens.

    Machine for thermoplastice and rubber,etc..Furnaces and industrical ovens.



    product dimensions



    Conductor Insulation Max.cond
    resistance
    (Ω/km)
    Unit Length
    (m)(Ft)
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Nominal Thickness
    (mm)
    Diameter
    (mm)
    26 7/0.16 0.48 0.78 2.04 143 305/1000
    24 7/0.20 0.61 2.17 89.3
    22 7/0.254 0.77 2.33 56.4
    20 7/0.31 0.94 2.50 35.2
    18 7/0.39 1.19 2.75 22.2
    16 7/0.49 1.49 3.05 14
    14 41/0.254 1.87 3.43 8.78
    12 19/0.47 2.36 3.92 5.53 200/656
    10 19/0.61 3.06 1.15 5.36 3.476 100/328
    8 19/0.75 3.75 1.55 6.85 2.16
    6 266/0.25 5.52 8.62 1.361
    4 420/0.25 6.63 9.73 0.8859
    2 655/0.25 8.75 11.85 0.5384
    1 388/0.40 10.00 2.03 14.06 0.4268 50/164



    UL Listed AWM UL3530 Silicone Rubber Insulated Wire High Temperature Resistance

    UL Listed AWM UL3530 Silicone Rubber Insulated Wire High Temperature Resistance



    UL Listed AWM UL3530 Silicone Rubber Insulated Wire High Temperature Resistance
