Green 1.5mm Silicone Rubber Insulated Wire For Electric Motor UL3512

  • Green 1.5mm Silicone Rubber Insulated Wire For Electric Motor UL3512
  • Green 1.5mm Silicone Rubber Insulated Wire For Electric Motor UL3512
  • Green 1.5mm Silicone Rubber Insulated Wire For Electric Motor UL3512
Place of Origin China
Brand Name MYSUN
Model Number UL 3512
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Rated Voltage 600V
Rated Temperature 200℃ Conductor Tinned Copper
Insulation Silicone Rubber Application Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products.
Color Customized Name High Temperature Cable
Size 0.5-4.0mm Usage Lead Wire, Hook Up Wire, Power Cable
Flame Resistance FT2
High Light

heat resistant electrical cable

,

high temperature heater wire
Leave a Message
Product Description

flexible UL 3512 Silicone Rubber Insulated Wire



specifications



Retad voltage 600V
Retad temperature 200°C
Insulation silicone rubber
Conductor Tinned copper
Standards UL 758
M/FT 305/1000
Color white,black,red,brown,yellow,blue,green,transparent etc.



APPLICATION:

the same with the inner fixed wires for the household appliance ,the lighting ,the electronic equipment,

the temperature sensor,the aircraft,the aviation ,the war industry product ,the metallurgy and chemical engineering.

the automobil and ship,the electric instrumentation,the light industry machinery and the electrical power installation etc.



If you are interested in our silicone wire,please contact us without hestating!

We are able to produce silicone wire with high quality,low price, prompt delivery and excellent service.



product dimensions



Conductor Insulation Max.cond Unit Length
resistance (m)(Ft)
Section Construction Diameter Nominal Thickness Diameter (Ω/km)
(mm²) (No./mm) (mm) (mm) (mm)
0.50 20/0.18 0.95 0.78 2.51 40.1 305/1000
0.75 30/0.18 1.17 2.73 26.7
1.00 40/0.18 1.30 2.86 20
1.25 50/0.18 1.50 3.06 14.35
1.50 30/0.25 1.60 3.16 13.7
2.00 41/0.254 1.85 3.41 8.78
2.50 50/0.25 2.06 3.62 7.16
3.00 60/0.25 2.30 3.86 6.5
4.00 56/0.30 2.62 4.18 4.7



Industrial Applications that Use Silicone Insulated Wires
Silicone insulated wires are used for a variety of industrial applications due to the above mentioned advantageous properties.
The below mentioned industrial applications make the best use of these insulated wires.

1.Internal Wiring of Home Appliances and Industrial Applications:
Silicone insulated wires are ideal for flexible applications, and is used for internal wiring of industrial heating appliances,
hot-rolling mills, textile machines, industrial ovens, etc.

2.High Voltage Cable Assemblies:
Today, many cable assembly manufacturers prefer using silicone cables over regular cheap cable assemblies.
Additionally, these wires have a dielectric strength of 550vpm, high insulation resistance, and excellent dielectric constant of 3-3.5.
These characteristics make these wires good electrical insulators, and are ideal for high voltage cable assemblies as well.
RoHS Compliant Applications: As silicone rubber is a non-toxic substance, it is ideal for RoHS compliant applications.
This is also the reason why silicone insulated wires are used in various medical applications.

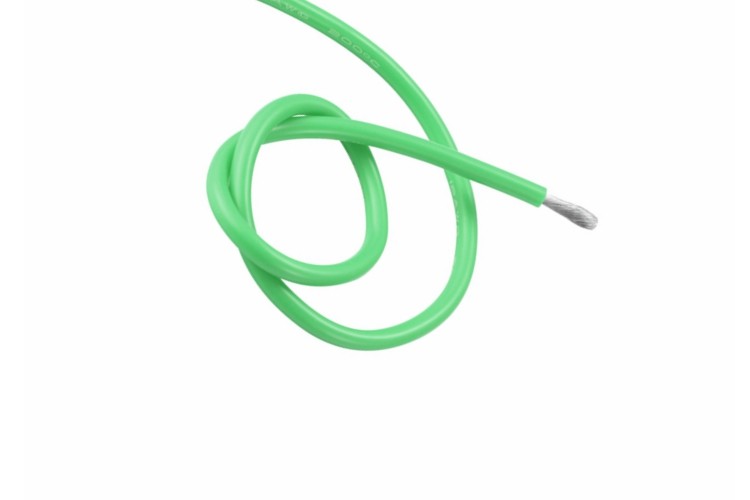

Green 1.5mm Silicone Rubber Insulated Wire For Electric Motor UL3512 0

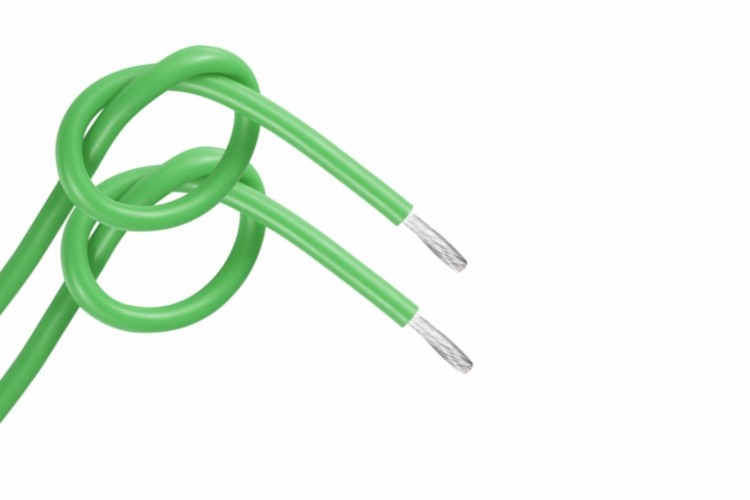

Green 1.5mm Silicone Rubber Insulated Wire For Electric Motor UL3512 1

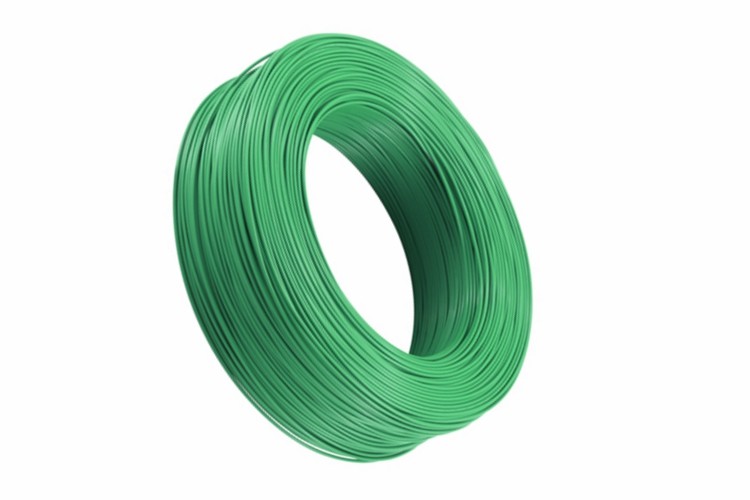

Green 1.5mm Silicone Rubber Insulated Wire For Electric Motor UL3512 2

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FAQ

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
