H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate

  • H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate
  • H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate
  • H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate
  • H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate
Place of Origin CHINA
Brand Name MYSUN
Certification VDE
Model Number H05S-K
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability one million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Silicone Rubber Conductor Tinned Copper
Size 0.5-2.5sqmm Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Rated Voltage 450V Working Temp 180C
Use In Home Appliance, Industry Machines SPQ 305m/roll
Package Reel, Carton, Pallet
High Light

flexible electrical wire

,

high temperature appliance wire

,

450V Silicone Hook Up Wire
Leave a Message
Product Description

Silicone insulatd wire H05S-K 0.75 sq mm wire with VDE certificate

Specification:
Rated voltage: 450V
Rated temperature: 180C
UL standard: VDE
Applications: this wire widely sued for home appliance, industrial machine and etc.

Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
0.5 20/0.18 0.95 0.8 2.52 40.1 305/1000
0.75 30/0.18 1.17 0.8 2.73 26.7
1 40/0.18 1.3 0.8 2.91 20
1.25 50/0.18 1.5 0.8 3.06 14.35
1.5 30/0.25 1.6 0.9 3.4 13.7
2 41/0.254 1.85 0.9 3.67 8.78
2.5 50/0.25 2.06 1 4.08 7.16

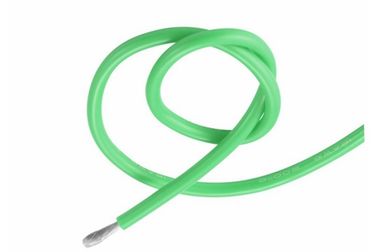

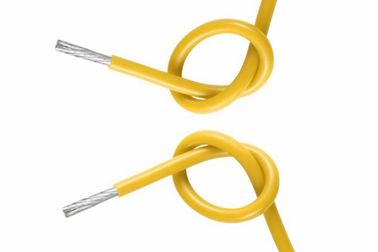

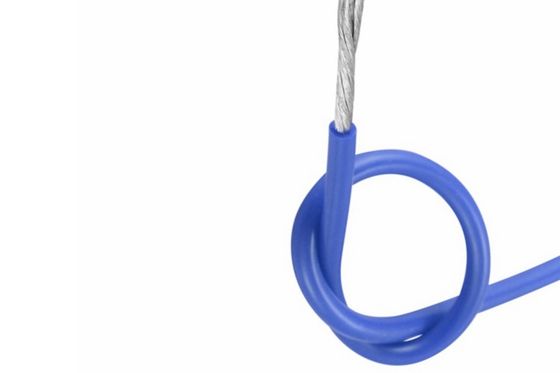

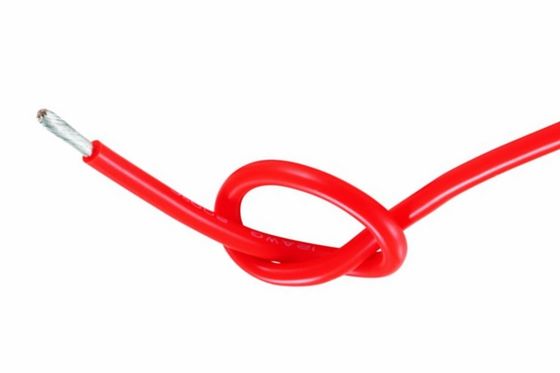

Cable details:

H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate 0

H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate 1

H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate 2

H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate 3

H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate 4

H05S-K 0.75 Sq Mm Silicone Hook Up Wire , High Temperature Appliance Wire VDE Certificate 5


Price term:
EXW, FOB, CIF

Payment terms:
LC, TT, Western Union and PayPal

Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
