Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142

  • Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142
  • Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142
  • Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142
  • Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142
Place of Origin CHINA
Brand Name MYSUN
Certification UL, CSA
Model Number UL3142
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability one million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Silicone Rubber Conductor Tinned Copper
Size 18-12AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Rated Voltage 600V Working Temp 150C
Use In Coffee Maker, Oven And Other Home Appliance SPQ 200m/roll
Name 12 AWG Electrical Wire
High Light

flexible hook up wire

,

flexible electrical wire

,

Battery 12 AWG Insulated Wire
Leave a Message
Product Description

12AWG silicone wire UL3142 flexible insulated wire battery lead wire



Specification:

Rated voltage: 600V

Rated temperature: 150C

UL standard: UL758

Applications: this wire widely sued for home appliance, headlamp, industrial machine and etc.



Cable dimensions:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
18 7/0.39 1.19 1.6 4.39 22.2 200/656
16 7/0.49 1.49 1.6 4.69 14 200/656
14 41/0.254 1.87 1.6 5.07 8.78 200/656
12 19/0.47 2.36 1.6 5.56 5.53 200/656



Cable details:

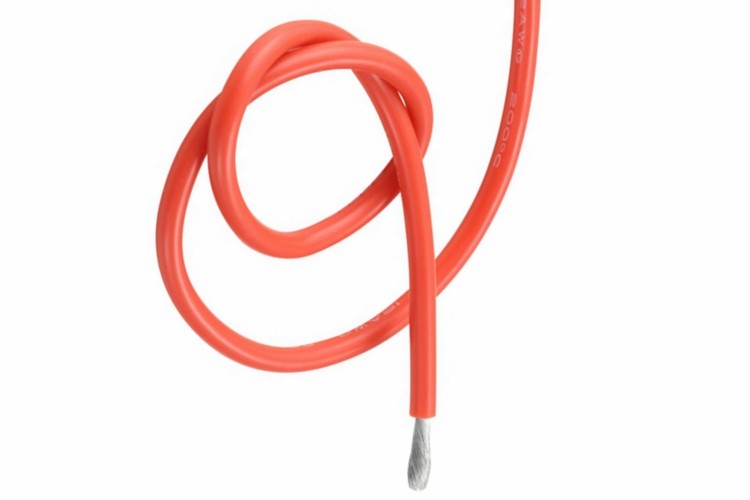

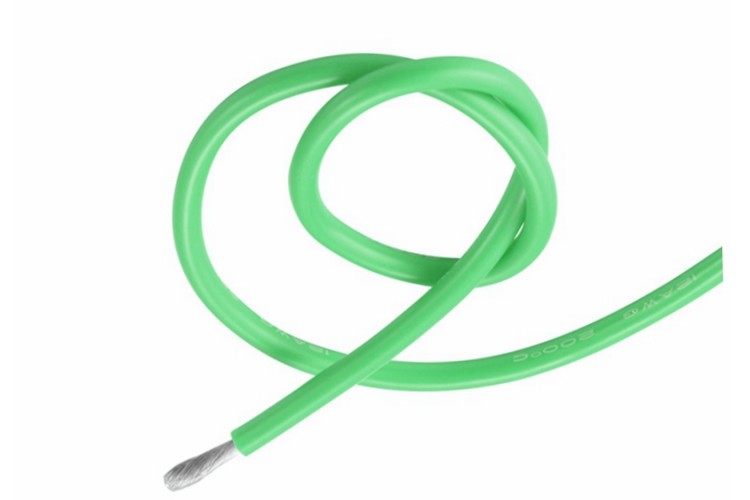

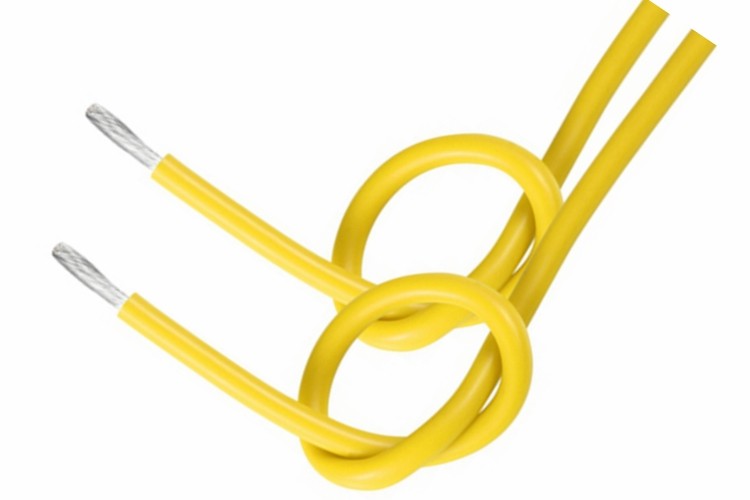

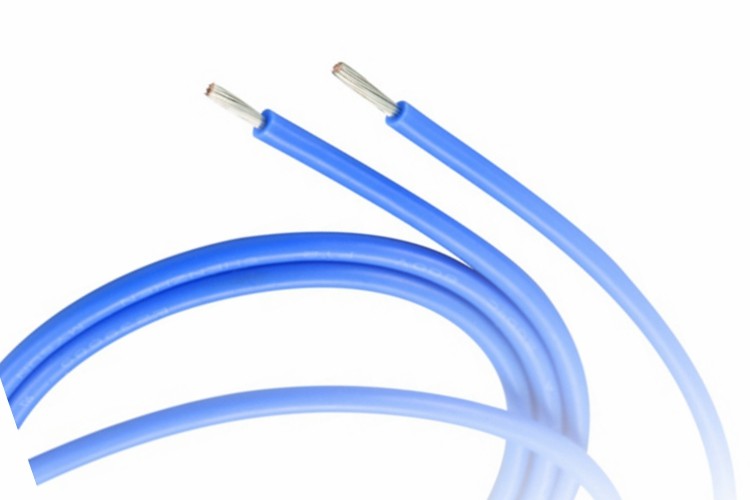

Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142 0

Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142 1

Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142 2

Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142 3

Silicone Rubber Insulated 12 AWG Electrical Wire , Battery Lead Wire UL3142 4



Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
