UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper

UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper

    • UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper
    • UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper
    • UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper
    • UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper
  • UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper

    Product Details:

    Place of Origin: CHINA
    Brand Name: MYSUN
    Certification: UL, CSA
    Model Number: UL3138

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: carton, pallet
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: one million meters each day
    Contact Now
    Detailed Product Description
    Insulation: Silicone Rubber Conductor: Tinned Copper
    Size: 18-9AWG Color: Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
    Rated Voltage: 600V Working Temp: 150C
    Use In: Coffee Maker, Oven And Other Home Appliance SPQ: 305m/roll, 610m/roll
    Name: 10 AWG Silicone Wire

    10AWG silicone wire UL3138 flexible insulated wire tinned copper



    Specification:

    Rated voltage: 600V

    Rated temperature: 150C

    UL standard: UL758

    Applications: this wire widely sued for home appliance, headlamp, industrial machine and etc.



    Cable dimensions:



    Conductor Insulation Max.Cond Resistance Unit length
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Nominal Thickness
    (mm)
    Diameter
    (mm)
    (Ω/KM) (M)(Ft)
    18 7/0.39 1.19 1.15 3.49 22.2 200/656
    16 7/0.49 1.49 3.79 14
    14 41/0.254 1.87 4.17 8.78
    12 19/0.47 2.36 4.66 5.53
    10 19/0.61 3.06 5.36 3.476 100/328
    9 84/0.32 3.38 5.68 2.73




    Cable details:

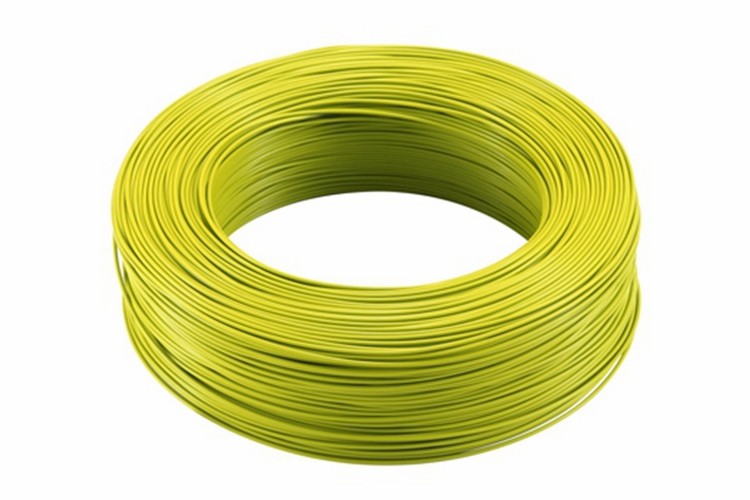

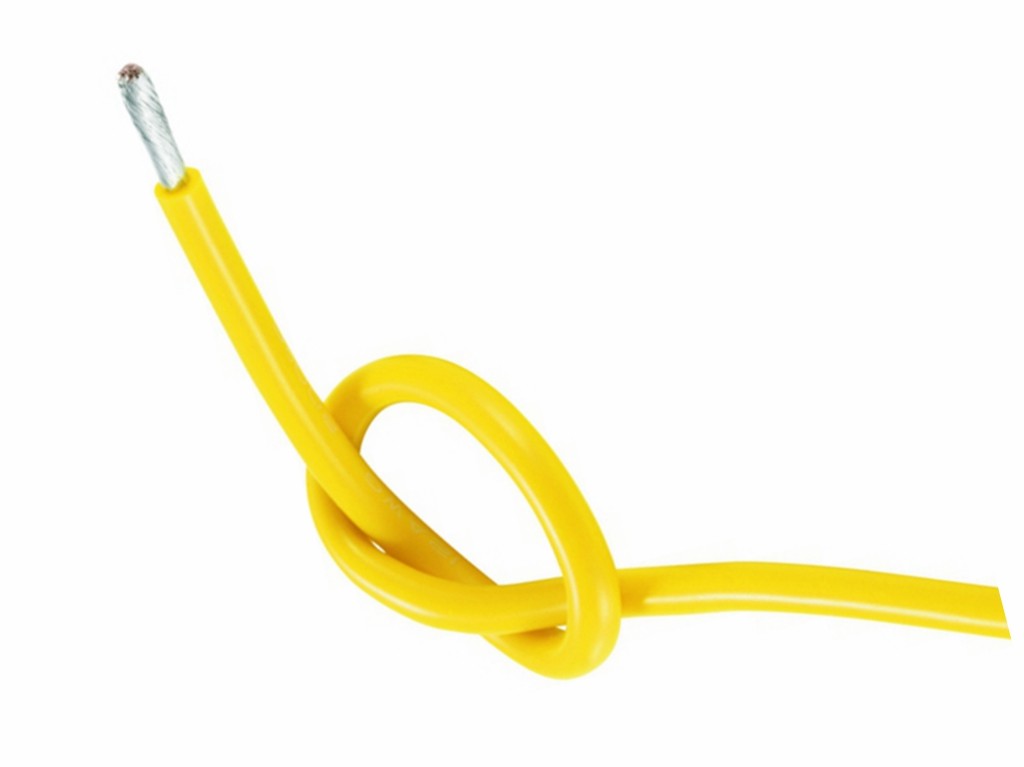

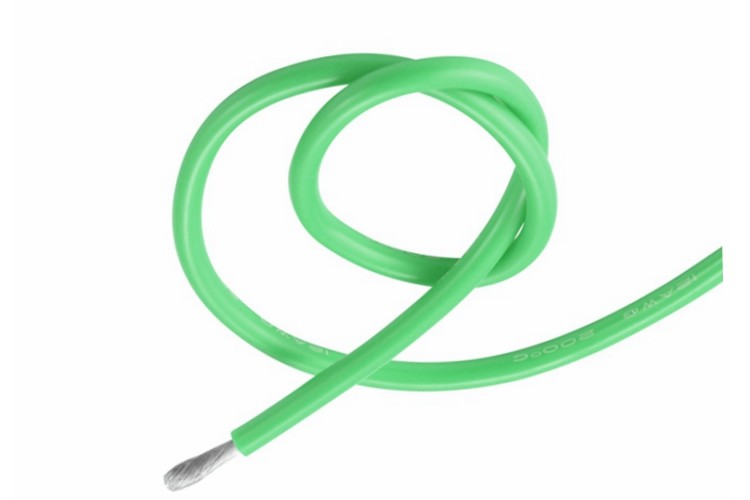

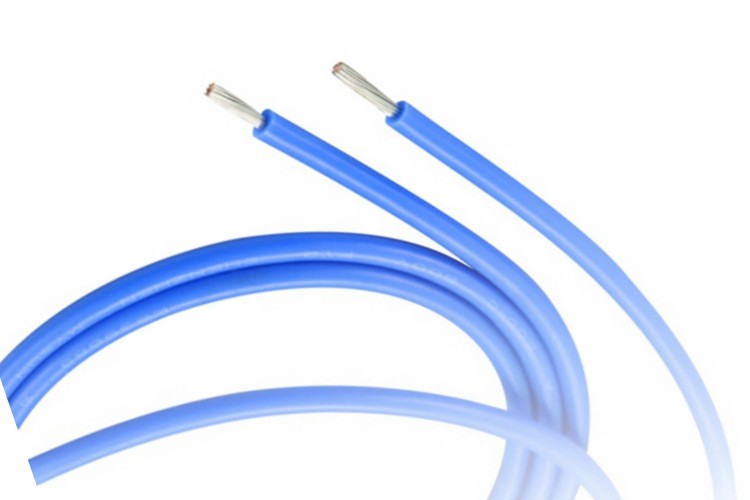

    UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper

    UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper

    UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper

    UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper

    UL3138 Flexible Insulated Wire 10 AWG Silicone Wire With Tinned Copper



    Price term:
    EXW, FOB, CIF



    Payment terms:
    LC, TT, Western Union and PayPal



    Lead time:
    Sample order: 1-3 working days
    Big order: 5-10 working days
    Customized order: 10-15 working days
