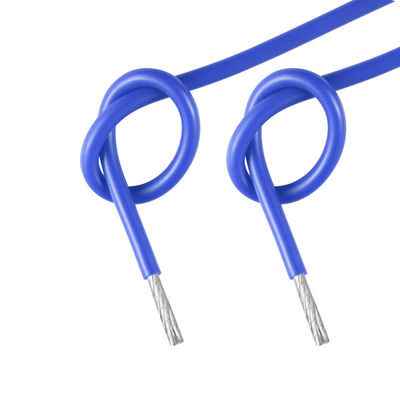

200C 30KV Soft Silicone Rubber Insulated Wire UL3239 Customized Color

200C 30KV Soft Silicone Rubber Insulated Wire UL3239 Customized Color

    • 200C 30KV Soft Silicone Rubber Insulated Wire UL3239 Customized Color
    • 200C 30KV Soft Silicone Rubber Insulated Wire UL3239 Customized Color
    • 200C 30KV Soft Silicone Rubber Insulated Wire UL3239 Customized Color
  • 200C 30KV Soft Silicone Rubber Insulated Wire UL3239 Customized Color

    Product Details:

    Place of Origin: China
    Brand Name: MYSUN
    Certification: UL
    Model Number: UL3239

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305m/roll
    Payment Terms: T/T
    Supply Ability: 50,000m/day
    Contact Now
    Detailed Product Description
    Rated Voltage: 3KV, 6KV,10KV,20,KV,30KV Rated Temperature: 200℃
    Conductor: Tinned Copper Insulation: Silicone Rubber
    Certification: ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Application: Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products.
    Color: Customized Size: 16-28awg
    Name: Flexible Cable



    high voltage UL 3239 Silicone Rubber Insulated Wire tinned copper wire



    specifications

    Retad voltage 3KV, 6KV,10KV,20,KV,30KV
    Retad temperature 200°C
    Insulation silicone rubber
    Conductor tinned copper wire
    Standards UL 758
    Application home appliances/ leds/industrial machine
    M/FT 305/1000
    SIZE 16-28awg
    Color white,black,red,brown,yellow,blue,green,transparent etc.



    production dimensions

    Conductor Insulation Max.cond
    resistance
    (Ω/km)
    Length
    (m)(Ft)
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    3000V 6000V 10000V 20000V 30000V
    Thickness
    (mm)
    Diameter
    (mm)
    Thickness
    (mm)
    Diameter
    (mm)
    Thickness
    (mm)
    Diameter
    (mm)
    Thickness
    (mm)
    Diameter
    (mm)
    Thickness
    (mm)
    Diameter
    (mm)
    28 7/0.12 0.37 0.50 1.37 0.70 1.77 1.00 2.37 1.30 2.97 1.70 3.77 227 305/1000
    26 7/0.15 0.49 1.49 1.89 2.49 3.09 3.89 143
    24 14/0.14 0.60 1.60 2.00 2.60 3.20 4.00 89.3
    22 22/0.14 0.76 1.76 2.14 2.76 3.36 4.16 56.4
    20 32/0.14 0.91 1.91 2.31 2.91 3.51 4.31 35.2
    18 52/0.14 1.17 2.17 2.57 3.17 3.77 4.57 22.2
    16 52/0.18 1.50 2.50 2.90 3.50 4.10 4.90

    14







    advantage of silicone wire

    Silicone rubber is known for its versatility, flexibility, and durability. This material is a stable, non-reactive, synthetic elastomer

    that can be used in extreme environments involving temperatures ranging from -55°C to over 300°C. Silicone rubber can be

    designed using different types of formulations of one or two polymers along with filler elements.

    Hence, they can provide effective application solutions while reducing overall manufacturing costs.



    Applications of Silicone Rubber Insulated Wires

    This wire is specially recommended for various applications, including:

    • Radiators
    • Steel mills
    • Electric motors
    • Hot rolling mills
    • Cooking surfaces
    • Heating apparatus
    • Industrial converters
    • Ovens and ventilators
    • Household appliances
    • Metallurgical facilities
    • Civil and industrial plants
    • Lighting (halogen lamps, etc.)
    • High voltage electrical cabins and circuits

    If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated wire is what you need.

    You can contact us to help you select the wire gauge and shielding that can meet your needs.

    If required,we can also aid you with custom manufactured wires and cables.



    Service:
    Shipment:
    1. by express
    2. by sea

    Payment terms:
    LC, TT, Western Union, Money Gram and PayPal

    Delivery:
    Sample order: 1-3 working days
    Big order: 5-10 working days
    Customized order: 10-15 working days
