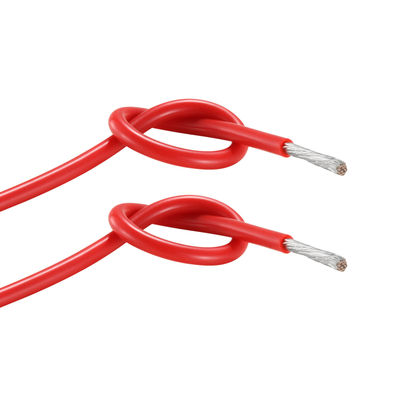

High Strand Electrical Hookup Wire Silicone Rubber Cable 600V 150°C AWM3132

High Strand Electrical Hookup Wire Silicone Rubber Cable 600V 150°C AWM3132

    • High Strand Electrical Hookup Wire Silicone Rubber Cable 600V 150°C AWM3132
    • High Strand Electrical Hookup Wire Silicone Rubber Cable 600V 150°C AWM3132
    • High Strand Electrical Hookup Wire Silicone Rubber Cable 600V 150°C AWM3132
    • High Strand Electrical Hookup Wire Silicone Rubber Cable 600V 150°C AWM3132
  • High Strand Electrical Hookup Wire Silicone Rubber Cable 600V 150°C AWM3132

    Product Details:

    Place of Origin: Guangdong
    Brand Name: Mysun
    Certification: UL/cUL
    Model Number: AWM3132

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305 Meters per Roll / 7 Rolls per Carton
    Delivery Time: 7-10 Working Day
    Payment Terms: L/C, D/A, T/T, Western Union,Paypal,HSBC
    Supply Ability: 2000000 Meters per Day
    Contact Now
    Detailed Product Description
    Name: Silicone Electrical Wire Model: AWM3132
    Insulation: Silicone Rubber Conductor: Tinned Copper
    Conductor Type: Stranded Conductor Constructure: 7/0.1 7/0.127 7/0.16 7/0.2 7/0.254 7/0.31 7/0.39
    Diameter: 1.2-2.37mm Max.Cond Resistance: 361-14 Ω/KM
    Rated Voltage: 300V Rated Temperature: 150℃
    Standard: UL758 Flammability Rating: FT-2
    Printing: Yes Application: Home Appliance,headlamp And Industrial Machines
    Color: 8 Colors Package: 305/610 Meters Per Roll

    AWM3132 The Ultra Flexible High Strand Silicone Rubber Wire 600V 150°C



    Specifications:

    Nominal voltage: 300V

    Temperature range: 150℃

    Standard: UL758

    Insulation: silicone rubber

    Conductor: Tinned copper wire



    Product dimensions:



    Conductor Insulation Max.cond
    resistance
    (Ω/km)
    Unit Length
    (m)(Ft)
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Inside thickness(mm) Diameter
    (mm
    26 1/0.40 0.40 0.78 1.96 143 610/2000
    7/0.16 0.48 2.04
    19/0.10 0.48 2.04
    24 1/0.50 0.50 0.78 2.06 89.3 305/1000
    7/0.20 0.60 2.17
    19/0.12 0.60 2.17
    22 1/0.65 0.65 0.78 2.21 56.4 305/1000
    7/0.254 0.75 2.33
    17/0.16 0.75 2.33
    20 1/0.81 0.81 0.78 2.37 35.2 305/1000
    7/0.31 0.93 2.50
    26/0.16 0.93 2.50
    18 7/0.39 1.19 0.78 2.75 22.2 305/1000
    18 41/0.16 1.18 0.78 2.75 22.2
    16 7/0.49 1.49

    0.78

    3.05 14 305/1000
    16 26/0.254 1.49

    0.78

    3.05 14
    14 41/0.254 1.87 0.78 3.43 8.87 305/1000
    12 19/0.47 2.35 0.78 3.92 5.53 305/1000

    SIZE

    (mm²)


    0.30 12/0.18 0.71 0.78 2.27 60 610/2000
    0.50 20/0.18 0.92 0.78 2.48 40 305/1000
    0.75 30/0.18 1.13 0.78 2.69 27 305/1000
    1.00 40/0.18 1.31 0.78 2.87 20 305/1000
    1.25 50/0.18 1.46 0.78 3.02 14 305/1000
    1.50 30/0.254 1.61 0.78 3.17 9 305/1000
    2.00 41/0.254 1.87 0.78 3.43 8.5 305/1000
    2.50 50/0.254 2.08 0.78 3.64 7.3 305/1000












    Service

    Packaging : Hard cardboard carton ( Customizable)

    Shipment:
    1. by express
    2. by sea

    If you have your own shipper,you can tell me in advance.

    My targert is to give my best serivce for you and hope we can have a good cooperation!


    Delivery:
    Sample order: 1-3 working days
    Big order: 5-10 working day
    Customized order: 10-15 working days





    FAQ:



    1, What’s the MOQ?

    One roll. 100M/200M/300M/305M/500M/Roll.



    2, How to get the samples?

    We have most of the commonly used samples in Stock.

    We can offer the free samples immediately.



    3, What’s the payment terms?

    LC, TT, Western Union, Money Gram and PayPal



    4, What’s the delivery date?

    Most of the commonly used products are in Stock. We can arrange it within one day.

    We will arrange the delivery date as your requirement while the Bulk Production.



    5, How to visit your factory/company?

    We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.
