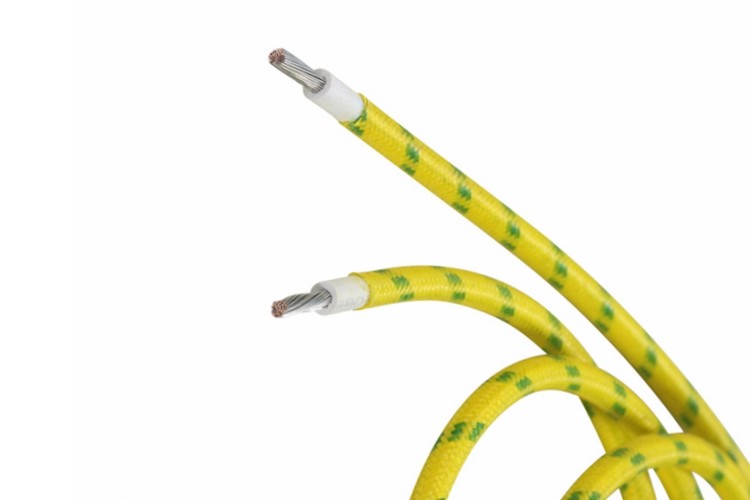

16-30 Awg High Temp Fiberglass Braided Wire UL3068 UL Certificated Anti Oil

16-30 Awg High Temp Fiberglass Braided Wire UL3068 UL Certificated Anti Oil

    • 16-30 Awg High Temp Fiberglass Braided Wire UL3068 UL Certificated Anti Oil
    • 16-30 Awg High Temp Fiberglass Braided Wire UL3068 UL Certificated Anti Oil
    • 16-30 Awg High Temp Fiberglass Braided Wire UL3068 UL Certificated Anti Oil
    • 16-30 Awg High Temp Fiberglass Braided Wire UL3068 UL Certificated Anti Oil
  • 16-30 Awg High Temp Fiberglass Braided Wire UL3068 UL Certificated Anti Oil

    Product Details:

    Place of Origin: China
    Brand Name: MYSUN
    Certification: UL
    Model Number: UL3068

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305m/roll
    Payment Terms: T/T
    Supply Ability: 50,000m/day
    Contact Now
    Detailed Product Description
    Rated Voltage: 300V Rated Temperature: 150℃
    Insulation: Fiber Glass Conductor: Tinned Copper
    Standard: UL758 Color: All Colors Are Available
    Appliance: Home Appliance, Headlamp, Industrial Machine, Electro Themal Products. Size: 16-30awg
    Cover: Fiberglass Braided Usage: Internal Wiring Of Electronic Equipment

    Silicone fiberglass wire UL3068 electrical wire

    Specifications:
    Nominal voltage: 600V
    Temperature range: 150℃
    Standard: UL 758
    Conductor: Tinned copper wire
    Insulation: Silicone Rubber
    Insulation: Fiber Glass

    Product dimensions:

    Conductor Insulation Max.Cond Resistance Unit length
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Nominal Thickness
    (mm)
    Diameter
    (mm)
    (Ω/KM) (M)(Ft)
    30 7/0.10 0.30 0.60 1.50 361 610/2000
    28 7/0.127 0.38 1.58 227
    26 7/0.16 0.48 1.68 143 305/1000

    24

    7/0.20 0.61 1.81 89.3
    22 7/0.254 0.77 1.97 56.4
    20 7/0.31 0.94 2.14 35.2
    18 7/0.39 1.19 2.39 22.2
    16 7/0.49 1.49 2.69 14



    The Perfect Wiring Solution for High or Unsteady Temperatures

    Highly flexible and heat resistant silicone insulated wires are ideal for high current connections,
    where the temperature exceeds 150º C and goes up to 250º C. At, Flexwires, we keep a large stock
    of these electronic hook-up wires that offer reliable and safe connection when wiring electrical and
    electronic equipment. They are available in several specifications, sizes, shapes and colors to best
    match the critical wiring applications of customers from multifarious industrial sectors.

    benefits

    • Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
    • Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
    • Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
    • Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.


    appliance

    • Radiators
    • Steel mills
    • Electric motors
    • Hot rolling mills
    • Cooking surfaces
    • Heating apparatus
    • Industrial converters
    • Ovens and ventilators
    • Household appliances
    • Metallurgical facilities
    • Civil and industrial plants
    • Lighting (halogen lamps, etc.)
    • High voltage electrical cabins and circuits








    Service:
    Shipment:
    1. by express
    2. by sea

    Payment terms:
    LC, TT, Western Union, Money Gram and PayPal

    Delivery:
    Sample order: 1-3 working days
    Big order: 5-10 working days
    Customized order: 10-15 working days

    Why choose us
    1. Full experience of 20 years in manufacturing electric cables/wires
    2. ISO9001:2008 member
    3. Strong R&D Team to design and test products
    4. Strict quality control process with strict standards
    5. Over 200 certifications for our products including UL, RoHS, CUL, CSA, VDE,CCC, SGS,etc
    6. Free samples
    7. Several different payment methods,like T/T,L/C,Western Union,Paypal
    8. Delivery in one week for your goods
    9. Quick after-sale technical advice and guidance
