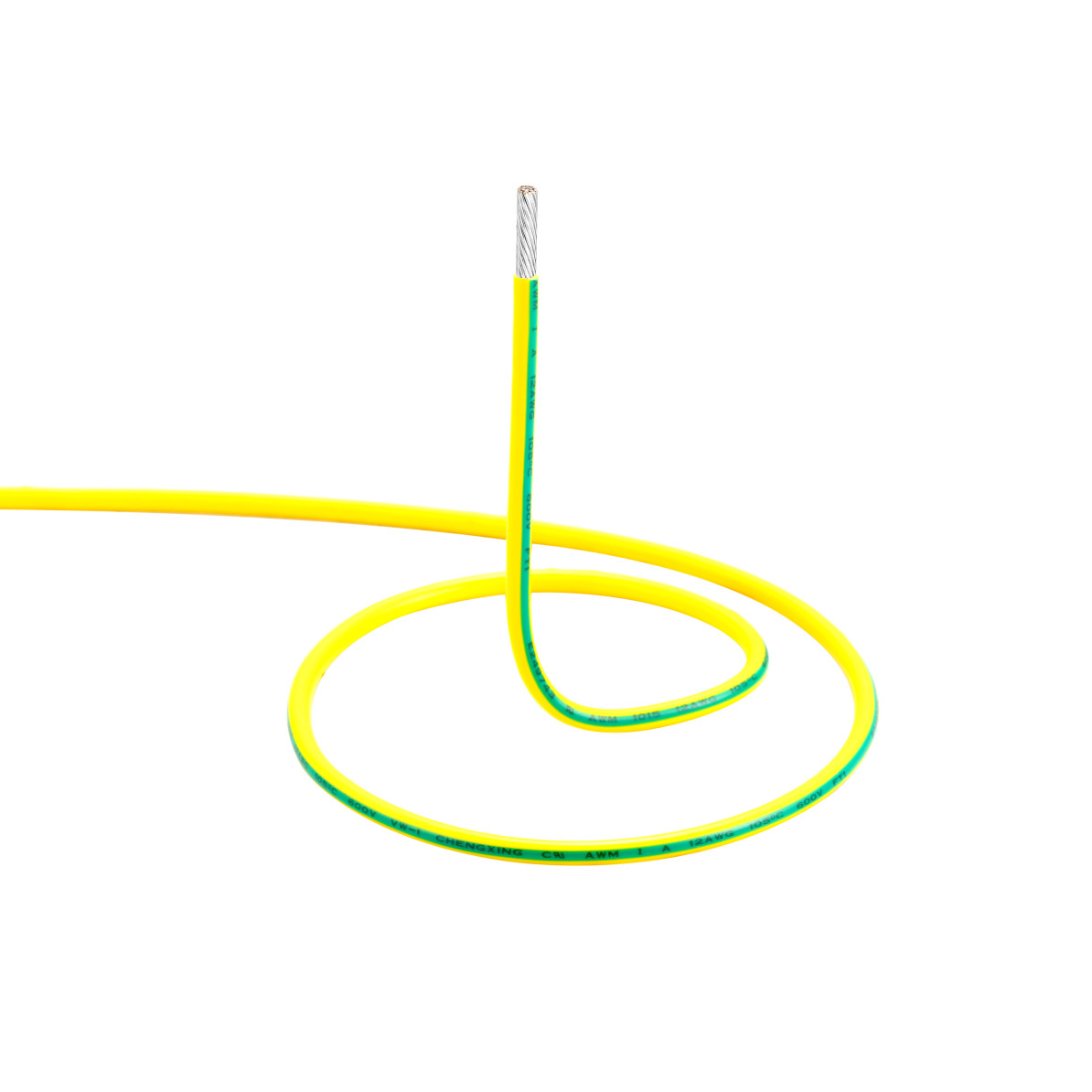

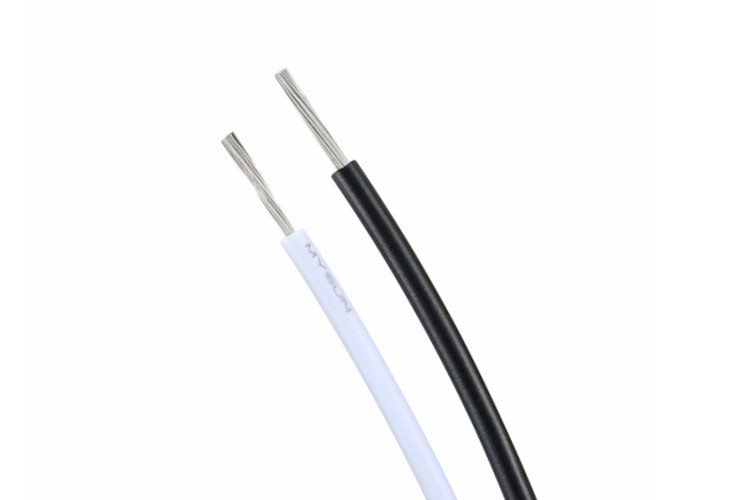

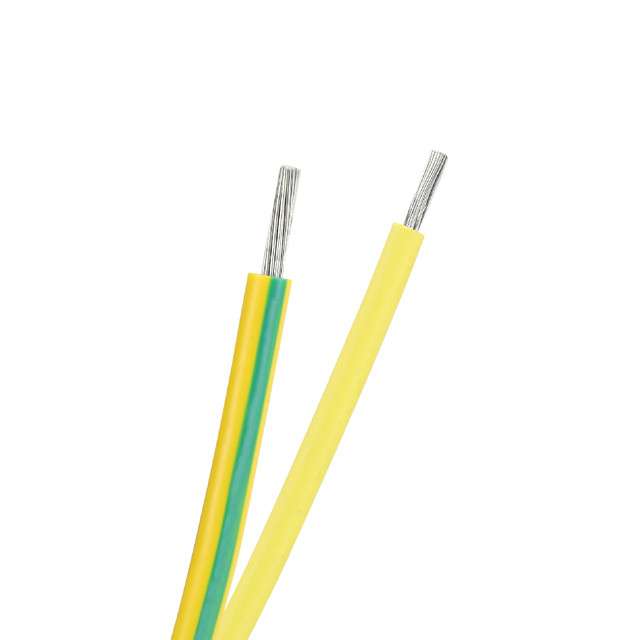

Anti - Acid 18 AWG Flexible Insulated Wire For Electric Appliance Fire Resistant

Anti - Acid 18 AWG Flexible Insulated Wire For Electric Appliance Fire Resistant

    • Anti - Acid 18 AWG Flexible Insulated Wire For Electric Appliance Fire Resistant
    • Anti - Acid 18 AWG Flexible Insulated Wire For Electric Appliance Fire Resistant
    • Anti - Acid 18 AWG Flexible Insulated Wire For Electric Appliance Fire Resistant
  • Anti - Acid 18 AWG Flexible Insulated Wire For Electric Appliance Fire Resistant

    Product Details:

    Place of Origin: Guangdong
    Brand Name: Mysun
    Certification: UL/cUL/CCC/CE/RoHS
    Model Number: 3289- 18AWG

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305/610 Meters per Roll , 7 Rolls per Carton
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union,Paypal,HSBC
    Supply Ability: 400000 Meters per Day
    Contact Now
    Detailed Product Description
    Name: AWM3289 Insulation Material: XLPE
    Conductor: Tinned Copper Rated Voltage: 600-750V
    Rated Temperature: 150℃ Size: 30-2AWG
    Color: 8 Colors Package: 100/305meters Per Roll
    Environmental: RoHS, REACH;Low Smoke And Halogen Free Spark Test: 6000V AC 100% Tested

    AWM3289 18AWG Approval XLPE insulated power cables with tinned copper





    Specifications:

    Nominal voltage: 600-750V

    Temperature range: 150C

    Standard: UL 758

    Insulation: XLPE

    Conductor: tinned copper wire



    Product dimensions:



    Conductor Insulation Max.cond
    resistance
    (Ω/km)
    Unit Length
    (m)(Ft)
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Inside thickness(mm) Diameter
    (mm)
    28 7/0.127 0.38 0.78 1.94 227 610/2000
    26 7/0.16 0.48 0.78 2.04 143 610/2000
    24 11/0.16 0.60 0.78 2.16 89.3 305/1000
    22 17/0.16 0.76 0.78 2.32 56.4 305/1000
    20 21/0.18 0.94 0.78 2.49 35.2 305/1000
    18 16/0.254 1.18 0.78 2.73 22.2 305/1000
    16 26/0.254 1.50 0.78 3.05 14 305/1000
    14 41/0.254 1.89 0.78 3.45 8.78 305/1000
    12 65/0.254 2.37 0.78 3.93 5.53 305/1000
    10 105/0.254 3.02 0.78 4.58 3.476 305/1000
    9 133/0.254 3.36 1.15 4.92 2.73 100/328
    8 133/0.28 3.75 1.15 6.05 2.16 100/328





    FAQ:



    1, What’s the MOQ?

    One roll. 100M/200M/300M/305M/500M/Roll.



    2, How to get the samples?

    We have most of the commonly used samples in Stock.

    We can offer the free samples immediately.



    3, What’s the payment terms?

    LC, TT, Western Union, Money Gram and PayPal



    4, What’s the delivery date?

    Most of the commonly used products are in Stock. We can arrange it within one day.

    We will arrange the delivery date as your requirement while the Bulk Production.



    5, How to visit your factory/company?

    We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.





    Service

    Shipment:
    1. by express
    2. by sea

    3. by air plane

    If you have your own shipper,you can tell me in advance.

    My targert is to give my best serivce for you and hope we can have a good cooperation!



    Packaging : Hard cardboard carton ( Customizable)



    Delivery:
    Sample order: 1-3 working days
    Big order: 5-10 working day
    Customized order: 10-15 working days
